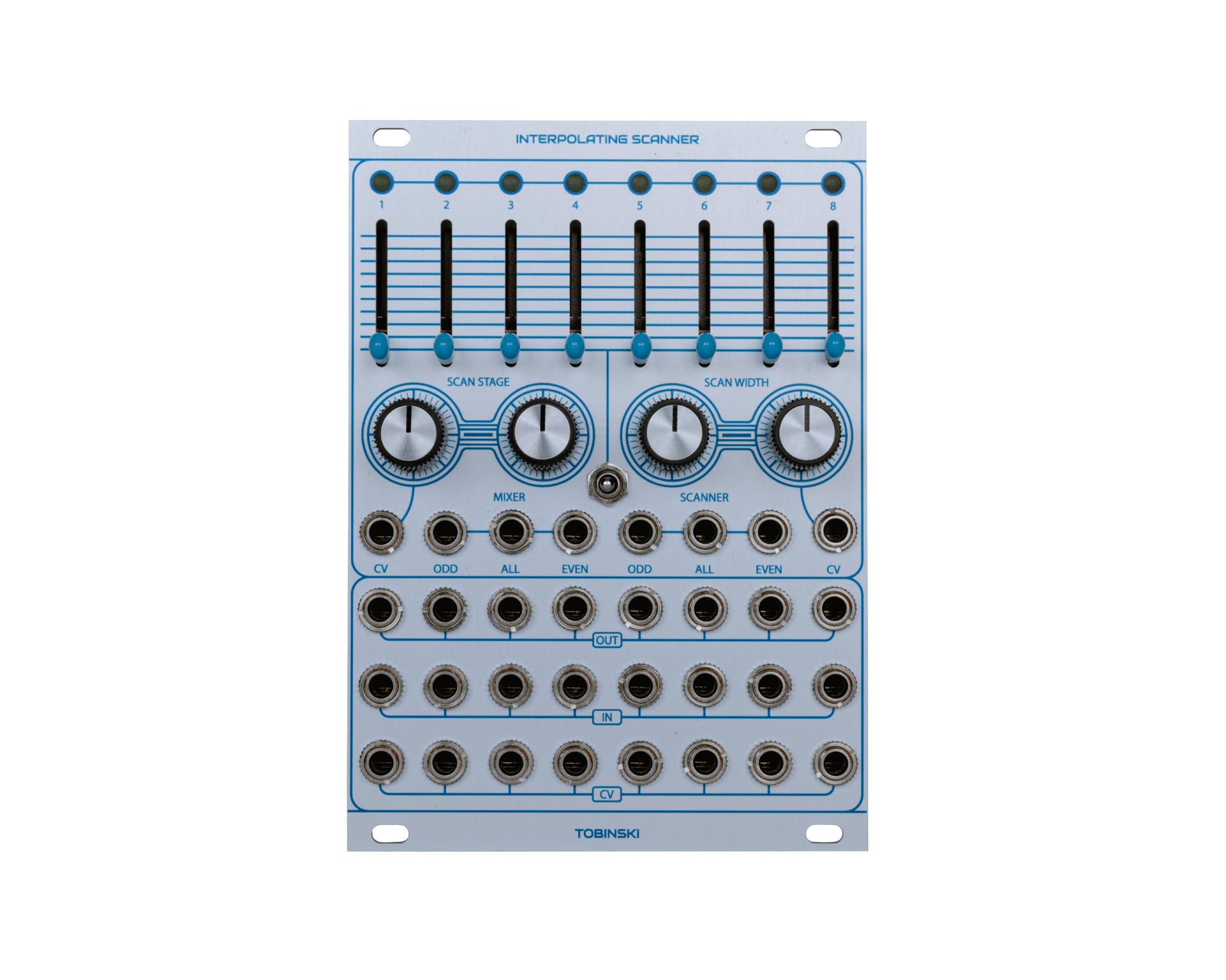

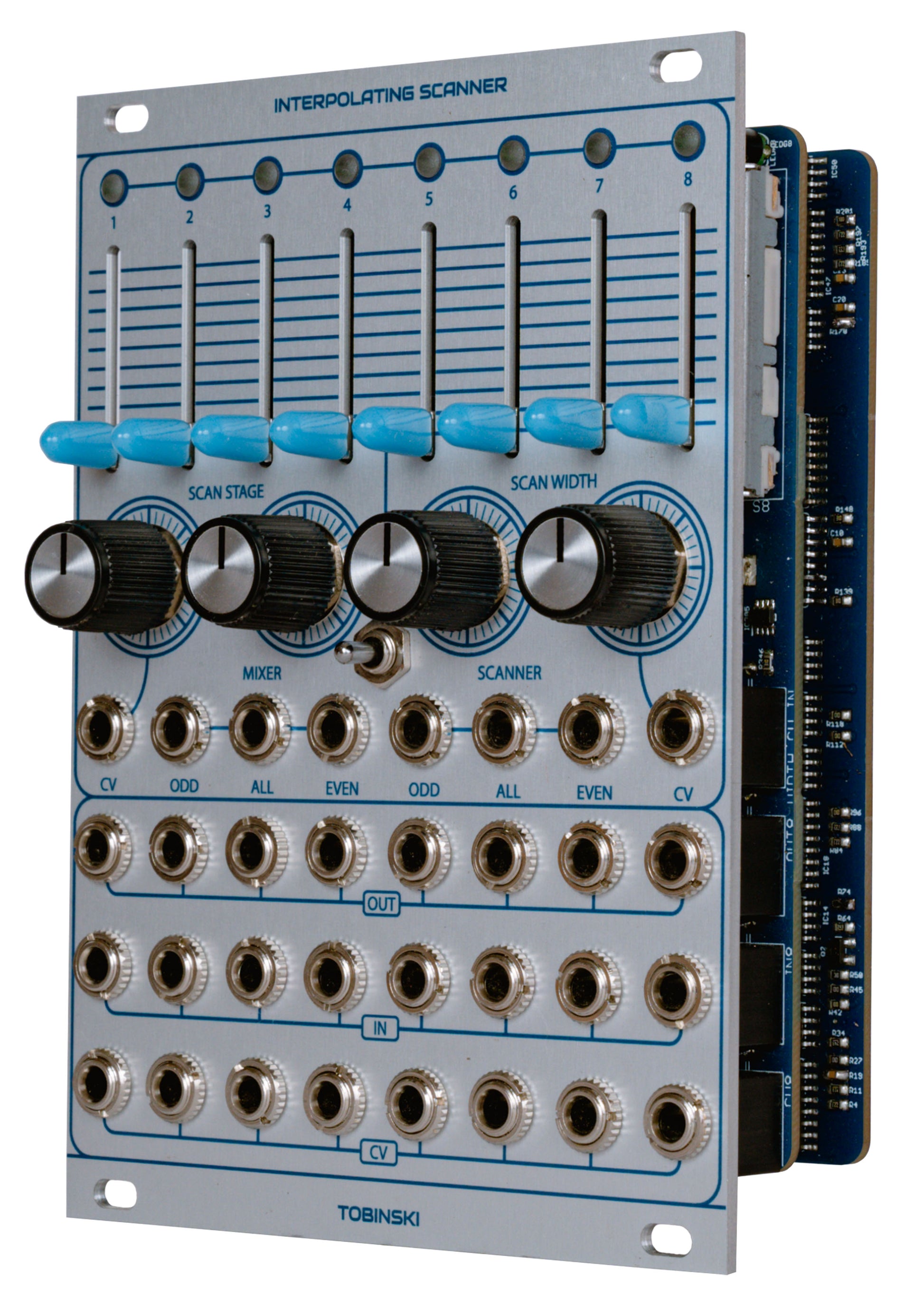

Tobinski 8 Channel Interpolating Scanner with VCAs

The Interpolating Scanner combines an 8-channel interpolating scanner with a powerful array of 8 independent VCAs, delivering unparalleled flexibility for dynamic audio and CV routing.
Designed for creative sound design and intricate signal processing, this module is a powerhouse for any modular synth setup.

Features

Interpolating Scanner

• 8-Channel Interpolation: Smoothly blend between up to 8 stages with high precision, using either bipolar CV or manual control.
• Scan Stage & Width Control: Dedicated controls for selecting active stages and defining the range of the interpolation window.
• Multiple Outputs: Individual outputs for odd stages, even stages, and a combined all stages output provide versatile routing options.

Integrated VCAs

• 8 VCAs with CV Control: Each VCA has its own dedicated control voltage input, allowing for intricate amplitude shaping.
• Mix Outputs: Summed outputs for odd channels, even channels, and all channels, perfect for mixing duties or creating complex stereo effects.
• Subtractive Mixing: Individual VCA outputs are excluded from the mix outputs when patched, allowing for flexible routing and advanced signal processing.

Parallel and Flexible Signal Flow

• Parallel Input Routing: The 8 inputs feed both the scanner and VCAs simultaneously, making it easy to use the module in multiple roles at once.
• Switchable Sliders: 8 high-quality sliders can control input levels to the scanner, the VCAs, or both, adapting to your workflow needs.

Video: https://youtu.be/LFsbhjowWs0

Product Specs

• Item Number: 36197
• Make: Tobinski
• Model: Interpolating Scanner
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Attenuator Dual/Stereo Mixer Panning Utility VCA
• Made In: Germany
• MPN: TIS
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 18 HP 27 mm deep
• Power*: 205 mA +12V 190 mA -12V 0 mA 5V

* User contributed details
