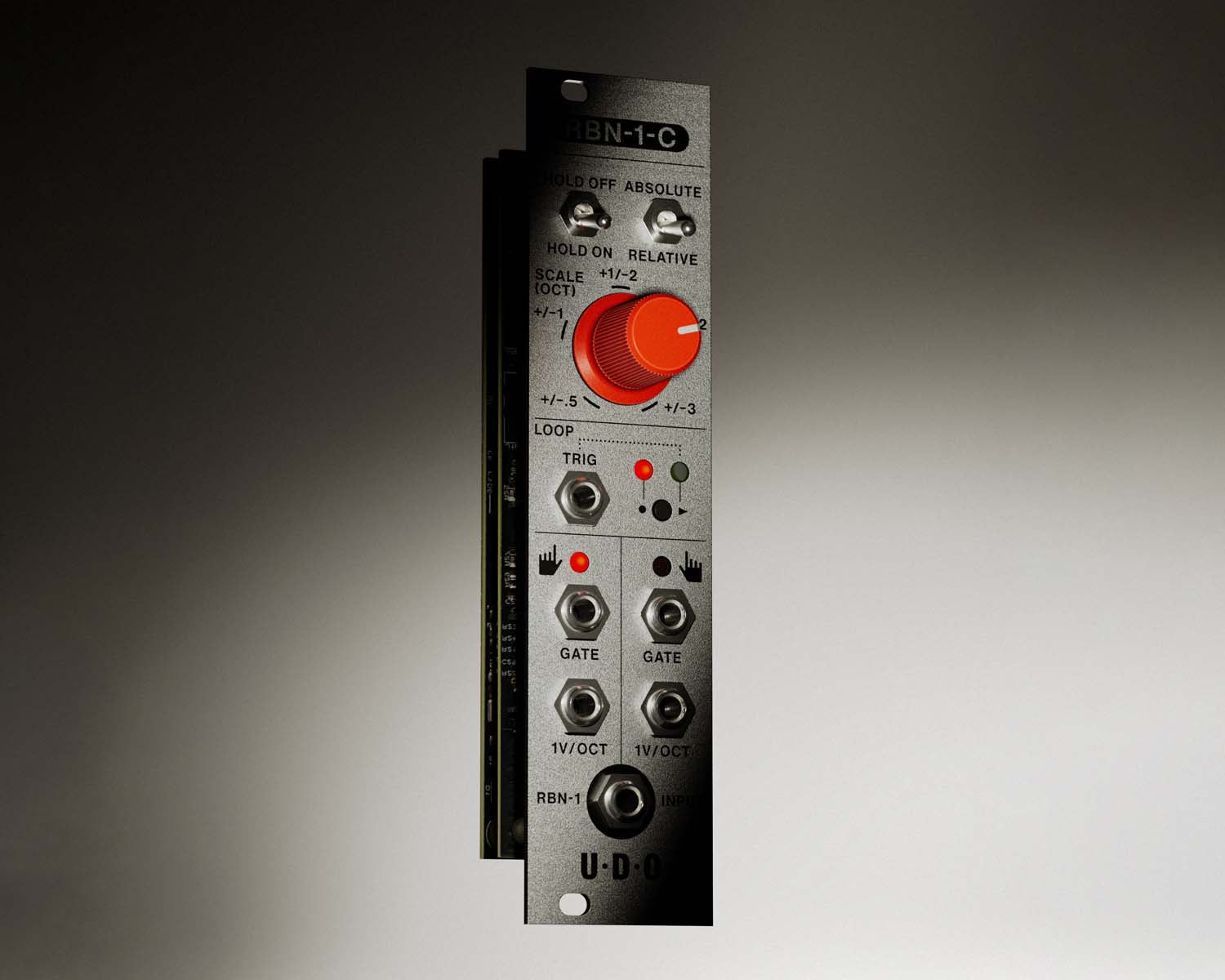

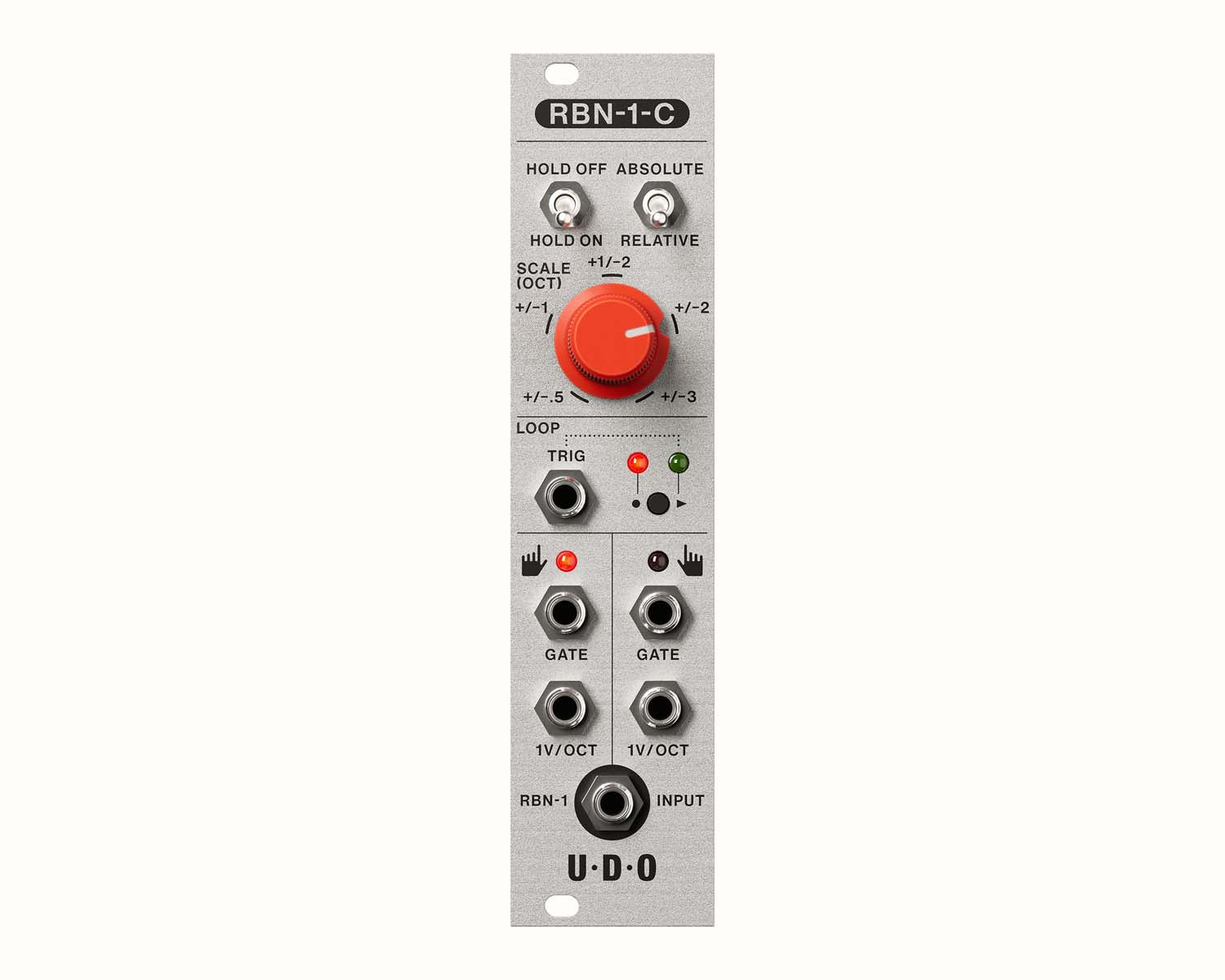

The RBN-1 Performance Ribbon Controller Interface is a 6HP Eurorack module built to work seamlessly with the UDO RBN-1 Ribbon Controller. It features a live looper, versatile performance controls, and dual CV/Gate outputs for expressive two-handed play. Offering fine-tuned ribbon response, external trigger sync, and simultaneous modulation control, it’s designed for maximum creative flexibility. With a sturdy aluminium panel and high-quality build, it’s ready for the rigours of live performance.

Features

• Custom Ribbon Behaviour - With customisable behaviour settings, the RBN-1 interface allows you to fine tune the ribbon’s response to match your unique performance style. Adjust the octave scaling and sensitivity to ensure a natural and responsive feel. This flexibility ensures that your ribbon controller integrates seamlessly into your modular system, whether for expressive pitch bending, modulation, or triggering effects.
• Live Looper - The built-in live looper lets you capture and repeat your ribbon expressions on the fly. Simply play, record, and loop your sequences for evolving performances. The optional trigger input enables external control, ensuring loops stay in perfect sync with your other modular gear. This feature is perfect for dynamic improvisation and layered soundscapes.
• Dual CV & Gate Outputs - Designed for expressive two handed play, the module provides two simultaneous CV and gate outputs. This allows for independent modulation of different parameters, such as controlling pitch with one hand while shaping timbre or filter cutoff with the other. Expand your creative possibilities and bring new dimensions to your modular performances.

Specifications

• Format: Eurorack
• Width: 6HP (30mm)
• Depth: 33mm (including power connector)
• Panel Material: 2mm aluminium
• Power Requirements: 0V, +12V, 12V
• Supply Current: +30mA / 15mA
• Ribbon Input: 3.5mm TRS jack, compatible with UDO RBN-1 (5K 25K input resistance)
• Loop Trigger Input: 3.5mm TS jack, 0/5V logic level, high impedance (>10K)
• CV Outputs: 3.5mm TS jack, 1V/oct scaling, maximum +/ 8mV error
• Gate Outputs: 3.5mm TS jack, 0/5V logic level, active high, short circuit protected
• Build Quality: High quality construction with metal panel

Product Specs

• Item Number: 36025
• Make: UDO
• Model: RBN-1-C
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Controller CV Modulation Expression Looper
• Made In: United Kingdom
• MPN: UDO-RBN-1-C
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 6 HP 33 mm deep
• Power*: 30 mA +12V 15 mA -12V ? mA 5V

* User contributed details
