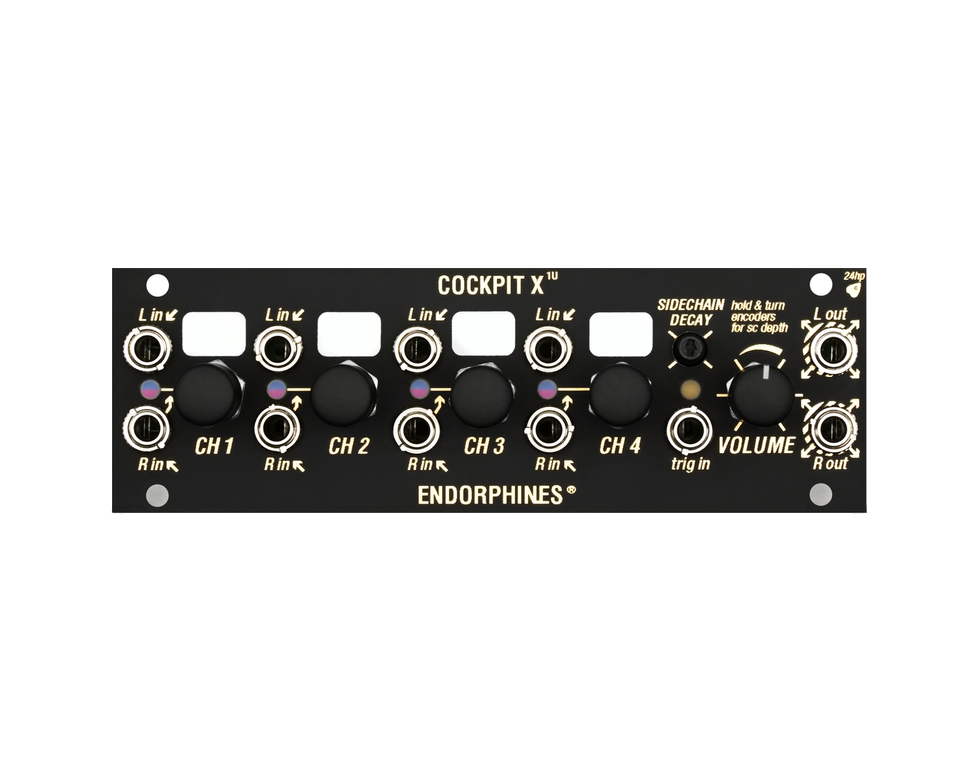

COCKPIT X 1U is the successor module of the COCKPIT 1U, based on the modern Sound SemiconductorTM chips giving a transparent VCA sound, zero bleeding at mute states, proper line/modular levels headroom and hands-on operation.
COCKPIT X 1U is an analog eurorack mixer designed for use in live in the studio.
It is unique in that it offers four true stereo input channels plus two stereo AUX channels in a compact 1U format with side-chain ducking not currently available on any comparable device.
COCKPIT X 1U is what you need if you are into stereo modules in 1U cases, as it allows to keep your modular system compact while maintaining wide functionality and accessibility.
You can also mix mono sources without issues as the left inputs are pre-patched (normalled) into the right inputs so you will always have audio appearing in proper channels.
Features
- 6 channel stereo mixer with crystal transparent VCAs:
- 4 stereo channels via separate left and right jacks and
- 2 stereo inputs via AUX/MIXUP inputs – for daisy chaining, routing external audio etc.
- 100% analog signal path with smart digital control
- Simple side-chain ducking – apply the kick drum trigger, push and turn the encoder to adjust the ducking level – easy to use without the manual
- Left input channels are pre-patched into the right inputs for easy mixing both mono and stereo, as well as line and modular level sources.
- Dedicated balanced and MIXUP outputs to be used in 1U cases with outputs to 1/4" jacks
- Encoder ‘faders’ – remember the mute/ducking states and sound levels, leave system patched and don’t worry about anything
- Limited with the channels? Add another Cockpit X into the daisy chain or use two internal AUX pre-final volume fader inputs.
- L/R inputs compatible with Airplane adapters to accommodate 3.5mm TRS sources if needed
Video: https://youtu.be/MftP9D0ACsU
Product Specs
- Item Number: 35747
- Make: Endorphin.es
- Model: Cockpit X 1U
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Dual/Stereo Mixer
- Made In: Spain
- MPN: E-CPX-1U
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 24 HP 30 mm deep
- Power*: 55 mA +12V 35 mA -12V 0 mA 5V
* User contributed details
