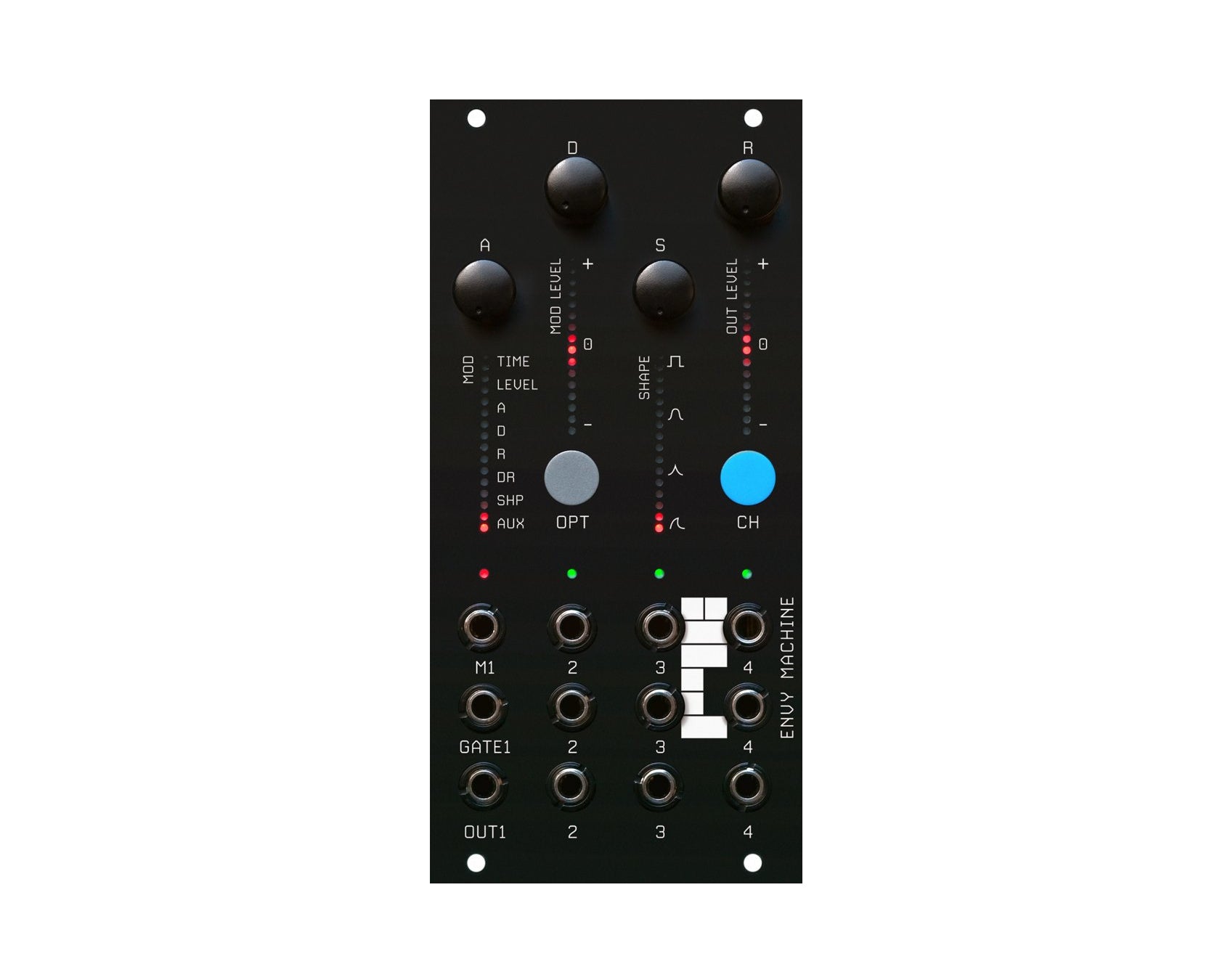

The RYK Envy Machine is a compact quad-channel modulation machine, with an envious array of Envelopes, LFOs, random voltages even Knob Recording.
With four channels of modulation, ENVY MACHINE makes an ideal companion to the RYK ALGO module.
Each of the four channels can be set to one of five super-flexible modulation modes:
* ADSR Envelope
* AD Envelope
* AD LFO
* Random Voltage
* Recordable Knob Voltage Control
Ghost hand - Parameters can be animated using KNOB RECORDING to create timed variations in your patch, and with the dedicated MOD input per channel, you can use an external CV to control anything - TIME, LEVEL, WAVESHAPE etc...
Polarity paradox - Modulation inputs AND channel Outputs come with bipolar attenuverters, now you can choose either bipolar or unipolar, with continuously variable level control.
Slippery slopes - WAVESHAPES are continuously variable between LOG, EXPO, SIN, TRAPEZOID, and SQUARE!
SPECS
TIME
* Envelopes: 1.5ms ā 4min
* LFO: 88hz ā 7min
* Random: 2khz - 2min
OUTPUT VOLTAGE RANGE
* Envelopes: 0/8V (inverted: 8V/0V)
* LFO/Random: 0/8V (Unipolar) or -5V/+5V (Bipolar)
INPUT VOLTAGE RANGE
-5V/+5V
Video: https://youtu.be/kEKhmv9gNNw
Product Specs
- Item Number: 35163
- Make: RYK Modular
- Model: Envy Machine
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: CV Modulation LFO Multiple Noise Random Utility Envelope Generator Quad
- Made In: United Kingdom
- MPN: RYK-ENVY
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 12 HP 25 mm deep
- Power*: 70 mA +12V 5 mA -12V 0 mA 5V
* User contributed details
