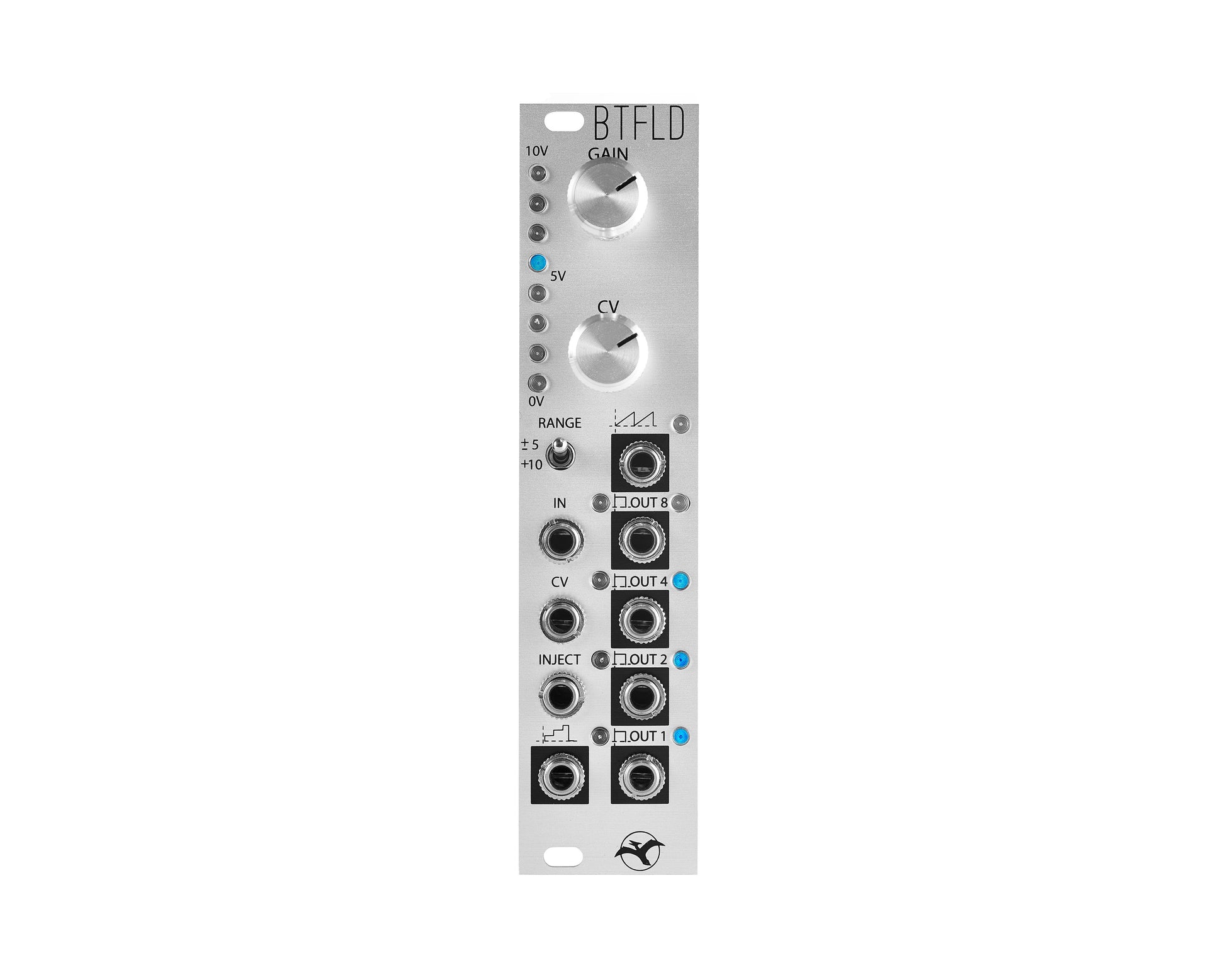

Schlappi Engineering BTFLD - Silver

The Schlappi BTFLD (Bit Fold) functions as a distortion unit, wavefolder, and a 4-bit asynchronous ADAC. Its folding output at audio rates delivers a hard-sync-like timbre through a unique sawtooth wavefolding circuit.

The stepped output creates a bit-crushed effect, while the square wave outputs offer various frequency multiplications or distortions. You can also generate rhythms by feeding envelopes or LFOs into the input, using the bit outputs as gates. It integrates seamlessly with Schlappi’s four-bit binary system (Nibbler, BTMX), enabling experimental four-bit computing and creative logic-based patching.

Features • 6 related outputs • Unique wavefolding circuit • Switched range for bipolar audio signals or unipolar modulation signals • Acts as distortion/wavefolder or rhythm generator depending on input • 4 bit binary output interfaces with other logic modules • LED indication for every input and output

Video: https://youtu.be/VG6IeEcnw4k

Product Specs

• Item Number: 34745
• Make: Schlappi Engineering
• Model: BTFLD - Silver
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Distortion VCA Waveshaper
• Made In: United States
• MPN: SE-BTFLD-S
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 6 HP
• Power*: 70 mA +12V 50 mA -12V 0 mA 5V

* User contributed details
