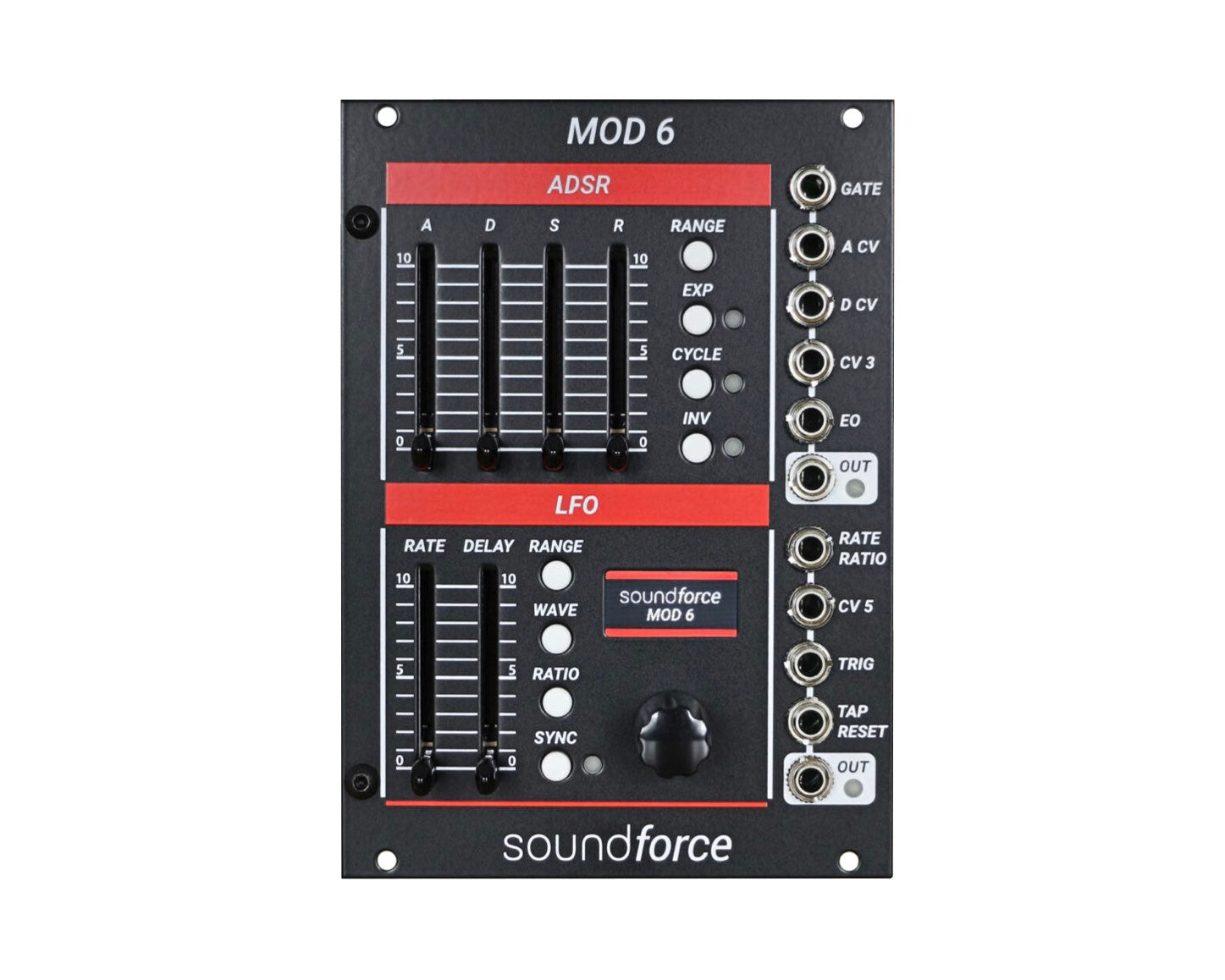

The Soundforce MOD 6 is a powerful dual-function Eurorack modulation source designed and developed to compliment the other modules in the juno-themed range of modules: DCO, VCF/VCA 6 and CHORUS 6.
It is based on experiences with the Dual LFO and Dual ADSR modules, with the goal of merging them together into a powerful dual-function next-level module.
ADSR Features
- 4 time ranges (including 1 custom user range)
- Linear/exponential response (with intensity control available)
- Cycle option
- Invert option
- ADSR or AD modes
- Flexible END OF output (EOA, EOD or EOR)
- Attack CV input, decay CV input, CV 3 input (assignable to either sustain CV, release CV or ADSR output amplitude CV)
LFO Features
- 4 times ranges (including 1 custom user range)
- Juno-style DELAY triggered by TRIG input (with fade-in option)
- Morphing LFO option
- Free-running or SYNC/tap LFO modes
- Extensive clock multiplier/divider selection in SYNC mode (from 1/64 to x64)
- RATE/RATIO CV input, CV 5 input (assignable to either delay CV, waveform selection CV or LFO output amplitude CV)
Video: https://youtu.be/Vnvo_dWVnNE
Product Specs
- Item Number: 34577
- Make: SoundForce
- Model: MOD 6
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Envelope Generator LFO
- Made In: Netherlands
- MPN: SF-MOD6
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 18 HP 27 mm deep
- Power*: 103 mA +12V 6 mA -12V 0 mA 5V
* User contributed details
