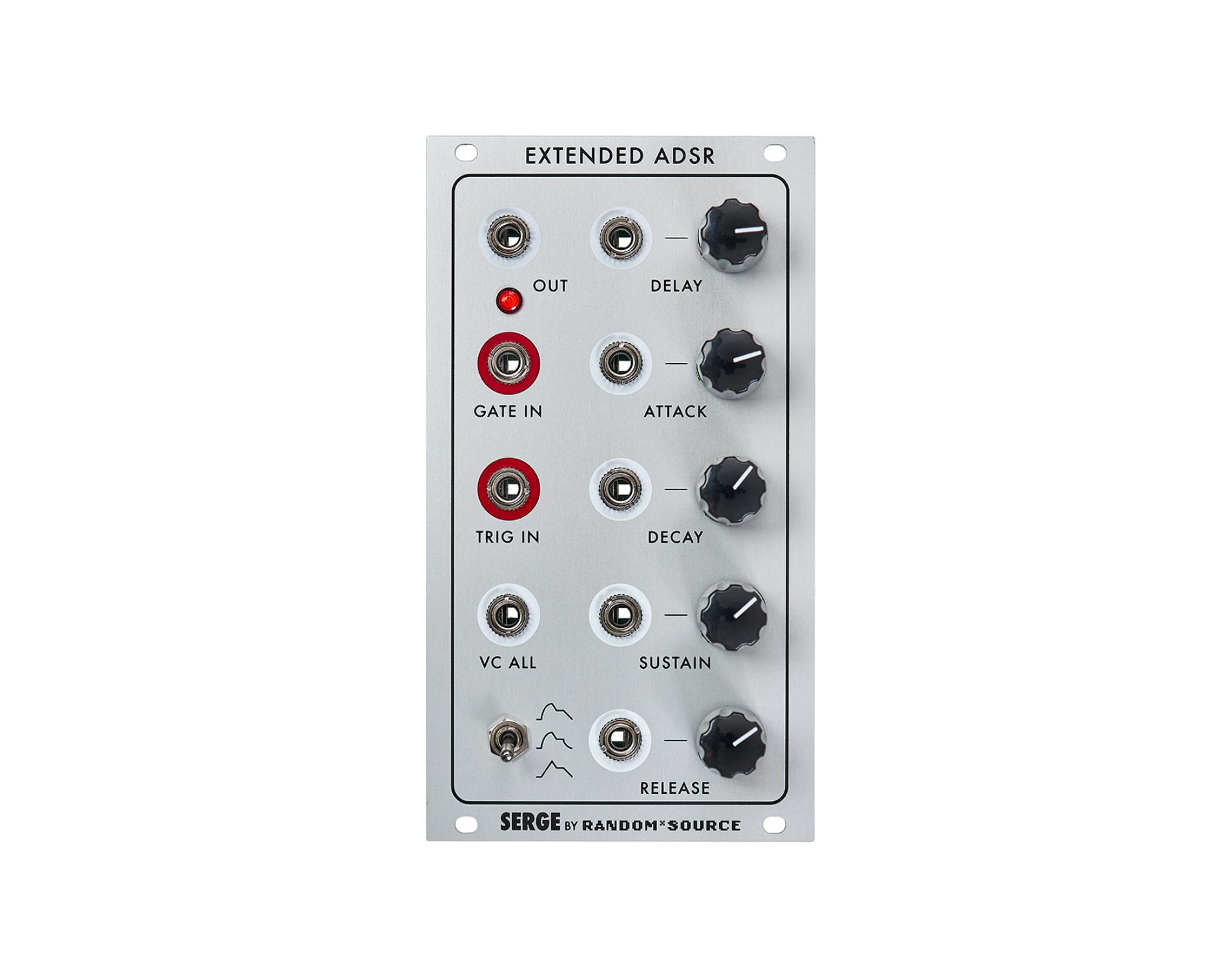

Serge Modular Extended ADSR Envelope Generator

Random*Source brings Serge's classic Extended ADSR design to Eurorack, providing a classic synthesiser envelope with an uncommon level of control.
The Extended ADSR is adapted directly from the original Serge circuit and is a DADSR envelope rife with opportunity for CV modulation.

The Extended ADSR has dedicated controls for envelope Delay, Attack, Decay, Sustain, and Release—and additionally offers a dedicated CV input for each of these parameters, great for adding nuance to your patches' articulations. The module also includes a "VC All" input, which scales all envelope time stages proportionally so that you can maintain the same shape while scaling the envelope's overall duration. You can also switch your attack and release curves from exponential to linear, allowing this envelope to pair well with basically any modulation destination.

Features.

• Classic ADSR-style envelope with extended functionality
• Original Serge design brought into Eurorack format
• Attack, Decay, Sustain, and Release controls, each with dedicated CV inputs
• Delay stage with CV input for adding a time offset to your envelopes
• All CV input for scaling all time stages proportionally
• Gate and trigger inputs
• Switchable attack/release curves from linear to exponential
• 0–5V output range, as in the classic Serge design

Product Specs

• Item Number: 34269
• Make: Serge Modular
• Model: Extended ADSR Envelope Generator
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Envelope Generator Function Generator
• Made In: Germany
• MPN: SM-EADSREG
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 14 HP 25 mm deep
• Power*: 25 mA +12V 20 mA -12V 0 mA 5V

* User contributed details
