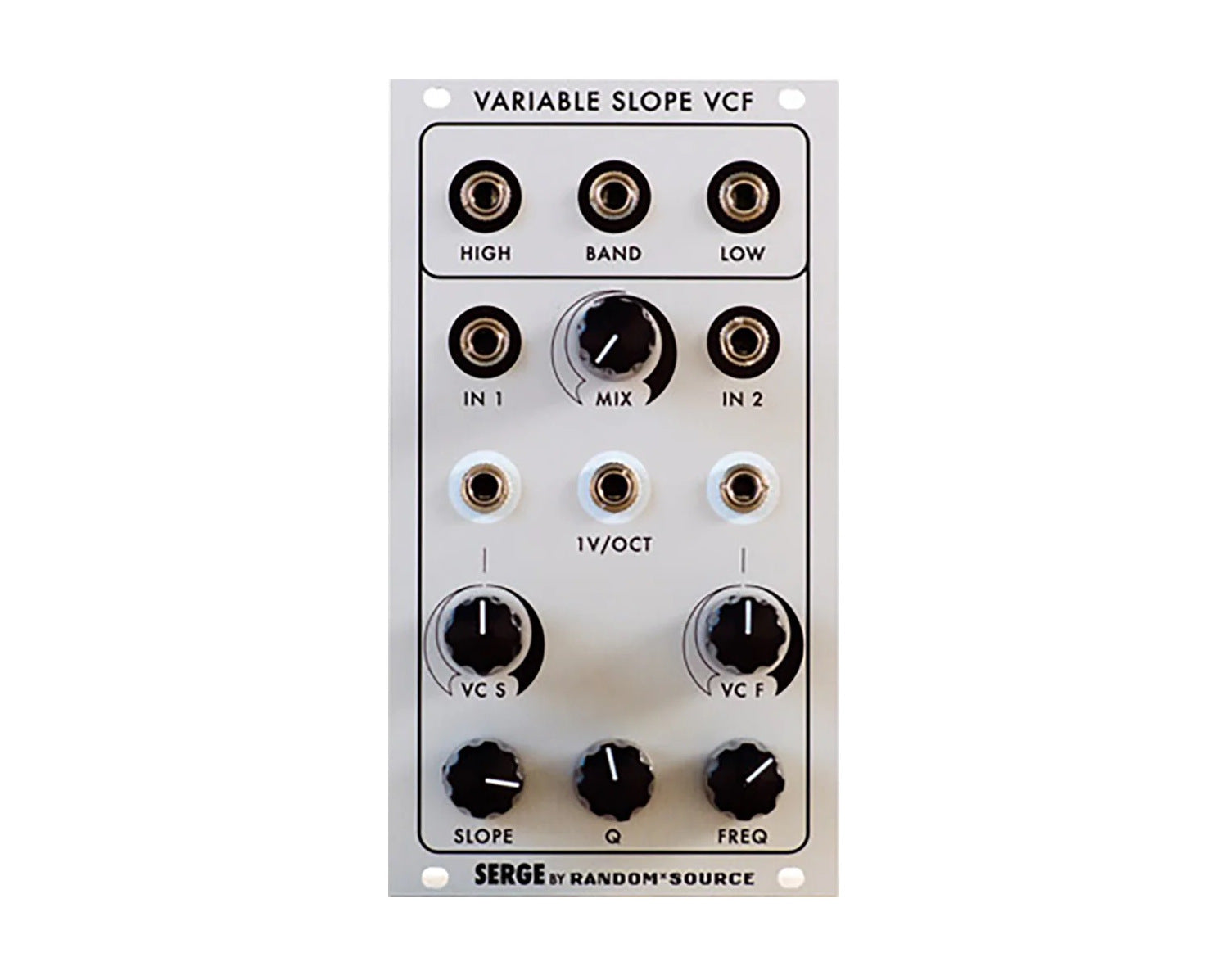

Serge Modular Variable Slope Filter (VCFS)

The Serge Modular VCFS Variable Slope Filter from RandomSource is a stable, workhorse VCF with a unique vintage flavour. It features three simultaneous filter outputs, two inputs with crossfade knob, and two levels of resonance control.
The Slope control increases the resonance and steepens the filter's frequency roll-off, introducing sharp cutoffs—and an additional Q knob fine-tunes the difference between min and max slope values. The classic Frequency control gives you manual or CV-controlled sweeps, and VCFS tracks at 1V/Oct. Add wonderful sharp sweeps, resonant kicks, or just subtle rolloffs with the Variable Slope Filter from RandomSource.

Features

• Officially licensed Serge design
• 3 simultaneous filter outputs for high, band, and low pass
• 2 input crossfader
• Slope and Q controls work together for wide array of resonance characteristics
• Attenuverters for Slope and Frequency
• 1V/Oct tracking

Video: https://youtu.be/tP7OTa6BLWc

Product Specs

• Item Number: 34259
• Make: Serge Modular
• Model: Variable Slope Filter (VCFS)
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Filter Mixer
• Made In: Germany
• MPN: SM-VCFS
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 14 HP 40 mm deep
• Power*: 40 mA +12V 40 mA -12V 0 mA 5V

* User contributed details
