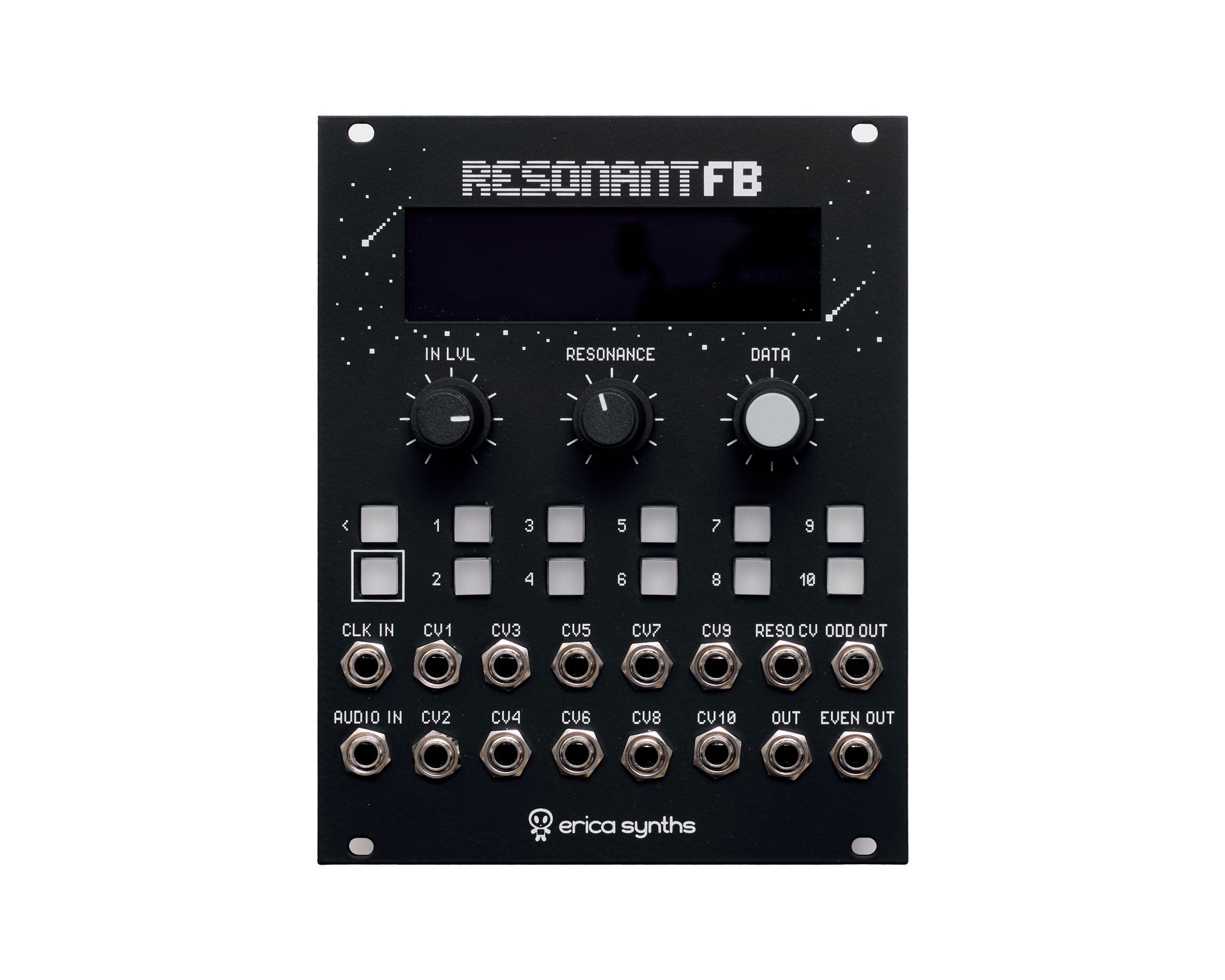

The Graphic Resonant Filterbank (FB) is a ten-band analogue filterbank with digital control over each bands’ boost or cut. Each band can be controlled individually via CV or manually, while complex control configurations turn the filterbank into an unconventional multimode filter and even an instrument in its own right when played with various resonance settings.
Features
- Analogue 10 band filterbank
- Saveable presets for filterbank, filter modes, dynamic EQ, and resonance settings
- Main, even and odd outputs
- Manual and voltage-controlled band boost/cut
- Configurable resonance feedback loops
- Manual and voltage-controlled resonance
- Clock input for synchronization of events with a master clock source
- Multimode filter mode
- Spectral analyzer mode
- Dynamic spectral compressor mode
- Discrete and morphing pattern change
- Configurable CV inputs
- Expander module for immediate access to band levels
- Skiff-friendly design
Video: https://youtu.be/15OwxF5kZ0o
Product Specs
- Item Number: 34105
- Make: Erica Synths
- Model: Graphic Resonant FB
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Filter Resonator
- Made In: Latvia
- MPN: ESRESONANTFB
- EAN: 4752275000754
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 20 HP 30 mm deep
- Power: 138 mA +12V 50 mA -12V ? mA 5V
