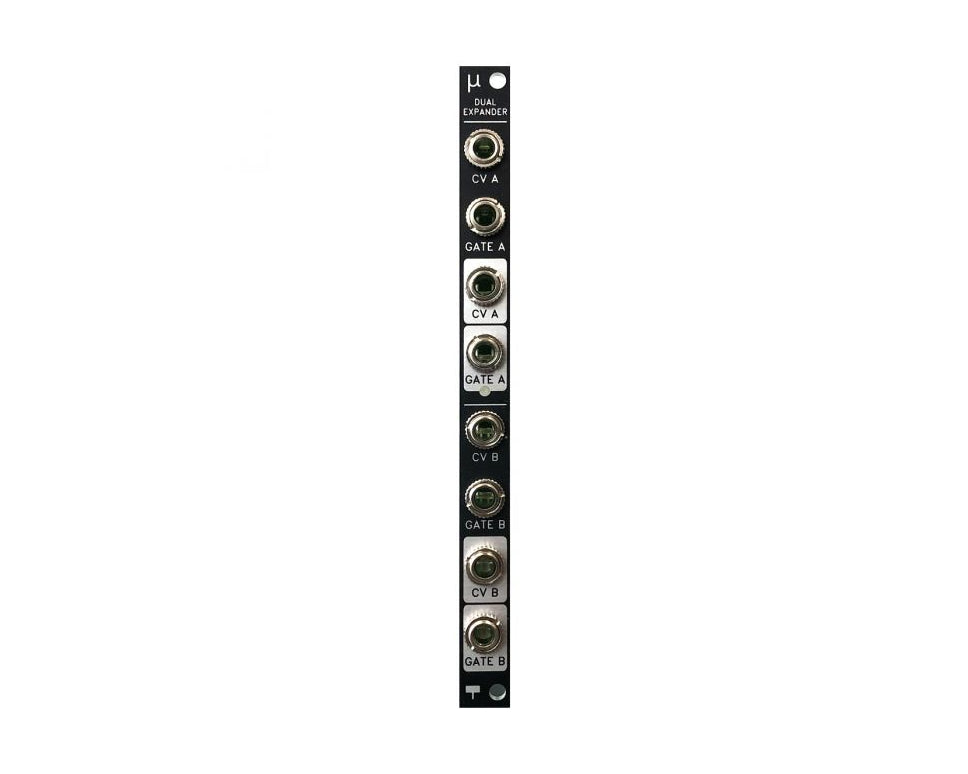

The Tubbutec μTune Expander adds two additional channels to your µTune.
Each channel has a CV-in, GATE/FREQ-in, CV-out and GATE-out. Functions for each output can be assigned freely.
An additional LED shows the state of the gate outputs: Channel A in blue and Channel B in red. The led is green normally to indicate proper connection to the host. Up to three expanders can be added to µTune for a maximum of 8 channels.
The expander houses a complete microcontroller system used for AD/DA conversion, frequency measurement and communication with the host µTune module. Like the main module it has a precision 16-bit DAC to allow perfect voltage output.
This expander is essentially a complete µTune, but without display, buttons and midi connections.
Product Specs
- Item Number: 33792
- Make: Tubbutec
- Model: μTune Expander - Black
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Expander
- Made In: Germany
- MPN: TBT-μTEB
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 2 HP 33 mm deep
- Power*: 20 mA +12V 10 mA -12V 0 mA 5V
* User contributed details
