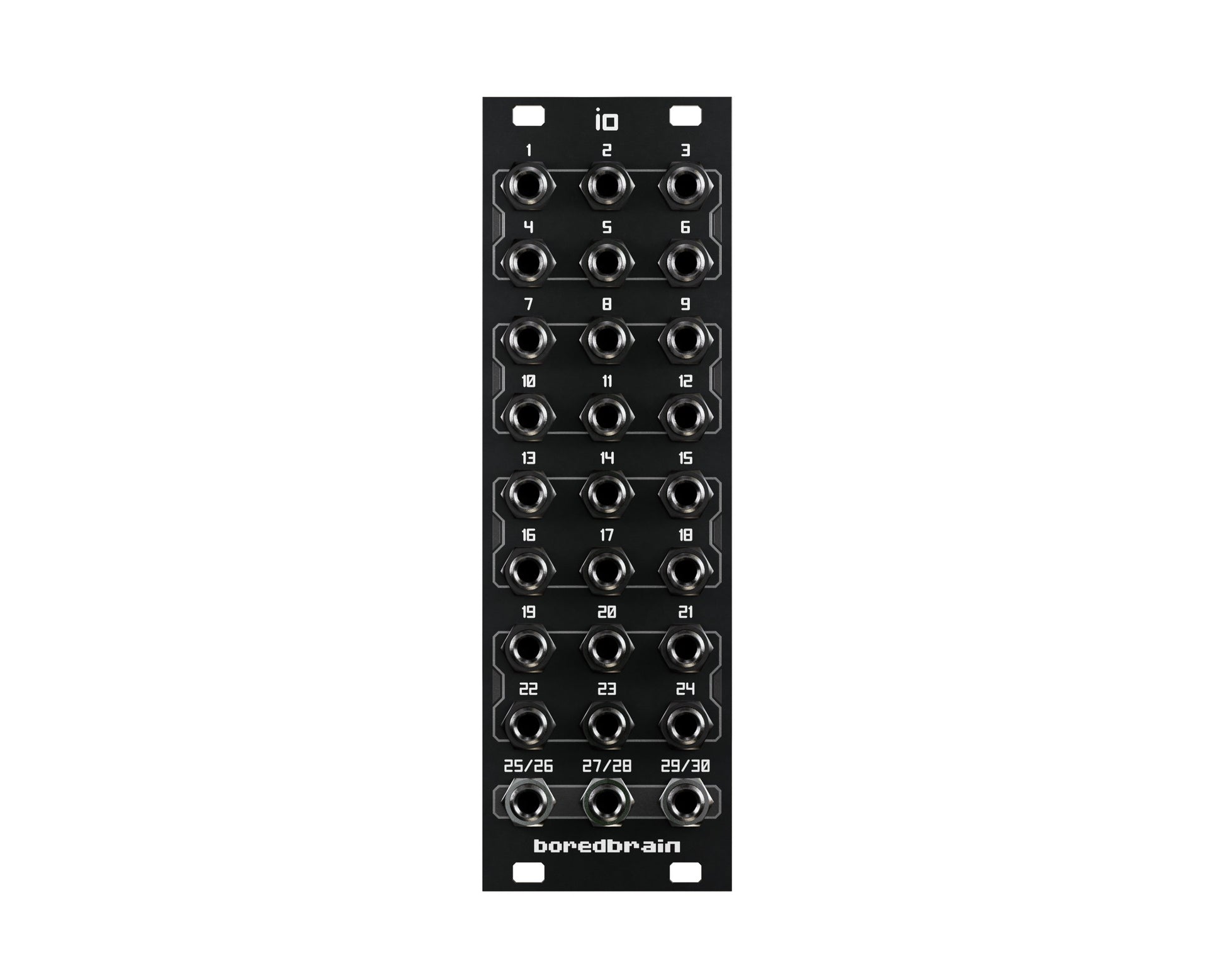

The Boredbrain Music IO is a versatile 30-channel input/output interface designed for Eurorack. With 24 mono and 3 stereo 3.5 mm jacks, it facilitates seamless connectivity between various audio sources and destinations.
The five connection ports on the back (IN/OUT 1-6, 7-12, 13-18, 19-24, 25-30) can each handle six signals using 8-pin ribbon cables, interfacing with compatible Boredbrain modules.
When connected to DB25 or TRS modules, the front jacks serve as signal inputs. When connected to the Xcelon mixer or XP3 channel expander, the jacks act as eurorack-level direct outputs for the stereo mixer channels. The passive design of the IO means no power is required.
Video: https://youtu.be/qCEMzyfLrhc
Product Specs
- Item Number: 33559
- Make: BoredBrain
- Model: IO
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Dual/Stereo Expander External Mixer
- Made In: United States
- MPN: BB-IO
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 8 HP 20 mm deep
- Power*: Module does not draw current
* User contributed details
