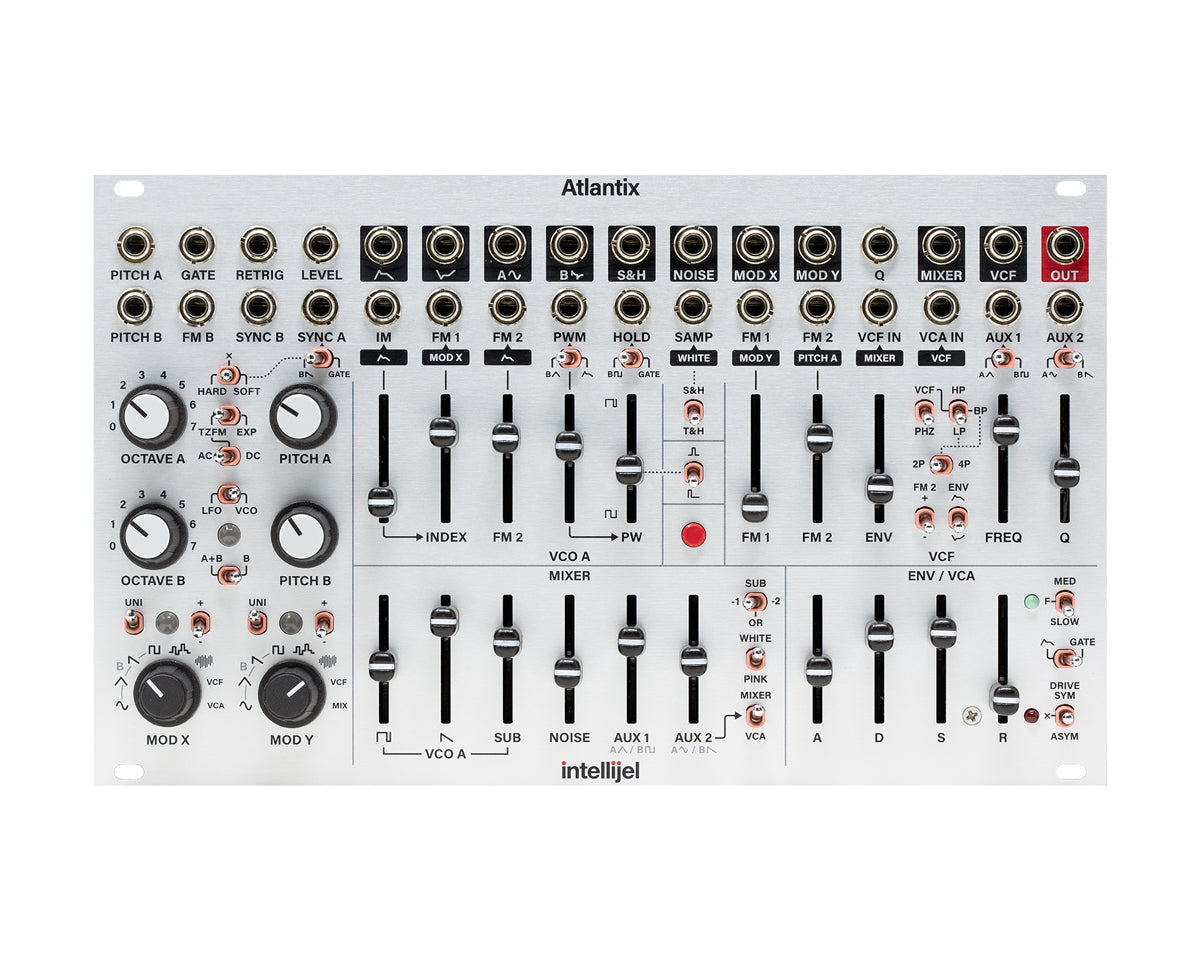

The Atlantix is an analog, complete subtractive synthesiser voice condensed into a single 42HP module. Its carefully conceived architecture and layout allow for a lot of flexibility and hands-on control. It gives you all the building blocks needed to start making sounds in Eurorack: VCOs, VCF, VCA, S&H, Noise, and an Envelope but in a way that allows plenty of experimentation.
The Atlantix is the successor to the Intellijel Atlantis which was originally inspired by the iconic Roland SH-101. Despite the SH-101’s seemingly limited architecture, it produces various creative and musically useful sounds that have inspired generations of artists and countless hits. The Atlantix is just as immediate for dialing in beautifully rich bass and lead sounds. A thoughtful design, numerous additional features, and flexible patching options open up a massive amount of new sonic territory to explore.
Features:
- Cascaded 4-Pole multimode filter with LP2, BP2, LP4, BP4, HP4, and Phaser modes
- Two Triangle Core VCOs
- VCO A: Thru-Zero FM with INDEX and PWM, Hard/Soft Sync, Octave switch
- VCO B: Linear FM, LFO/VCO switch, Hard Sync, Octave switch
- Suboscillator with three modes spanning two octaves
- White and Pink noise sources
- Six-channel mixer comprising VCO A Waveforms, Sub, Noise, and two Aux inputs
- Aux inputs have switched normals with sources from VCO A and B for quick paraphonic play without patching
- Mixer Aux 2 can be routed post-VCF / pre-VCA
- Mod X and Y buses allow for quick modulation routing of VCO B, S&H, Noise, and feedback sources without patching
- Both Mod X and Y buses have polarity and level-shifting switches
- Analog ADSR envelope with three time ranges, manual gate, and level (velocity) input
- Patchable Sample and Hold modulation source
- Asymmetric and symmetric output distortion modes
- 20 Sliders, 4 Knobs, 27 toggles, and 2 Rotary switches for expressive hands-on control
- 32 Jacks for creative and complex patching options
- 16 additional jacks with the optional Atlx expander
Video: https://youtu.be/ooW3k_69oMw
Product Specs
- Item Number: 33182
- Make: Intellijel
- Model: Atlantix
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Envelope Generator Filter LFO Noise Oscillator Sample and Hold Synth Voice
- Made In: Canada
- MPN: ATLANTIX-3U
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 42 HP 25 mm deep
- Power: 140 mA +12V 138 mA -12V ? mA 5V
