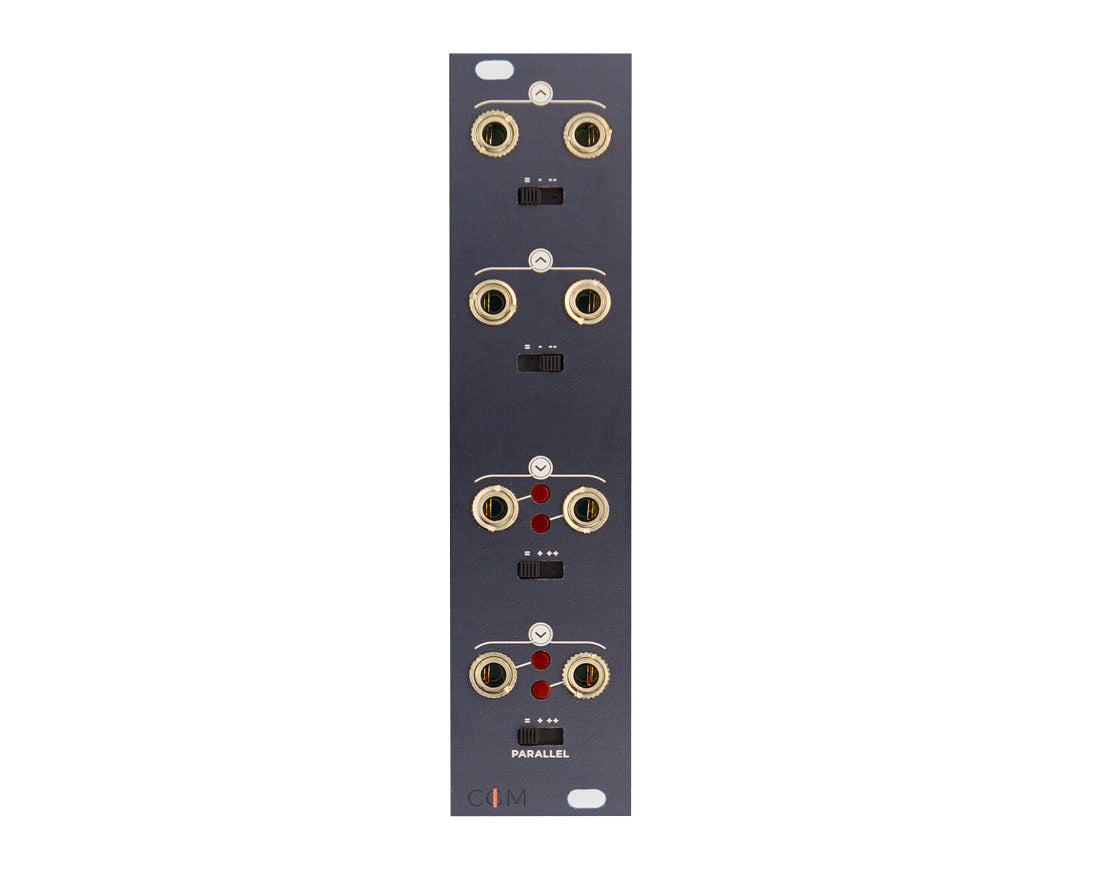

The Frap Tools insert module allows you to connect stereo effects to your CGM setup, either by inserting them between two points of the internal summing bus or by placing them in parallel, as in a rudimentary stereo send-and-return.
It consists of two couples of outputs and inputs with dedicated gain switches. The first O/I stereo couple is the insert circuit, while the second is the parallel circuit.
The Insert module can be used:
- Between a group and a master;
- Between a group and a group;
- Between a channel and a group;
- Between a channel and a channel;
- Between a channel and a master (without a group).
Video: https://youtu.be/GEfxSOQ1sjs
Product Specs
- Item Number: 32507
- Make: Frap Tools
- Model: Insert
- Condition: Brand New
- Finish: Thin Film Interference
- Categories: keyboards-and-synths ā eurorack
- Function: Dual/Stereo Effect External Mixer
- Made In: Italy
- MPN: FRTIMX
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 6 HP 38 mm deep
- Power: 35 mA +12V 35 mA -12V ? mA 5V
