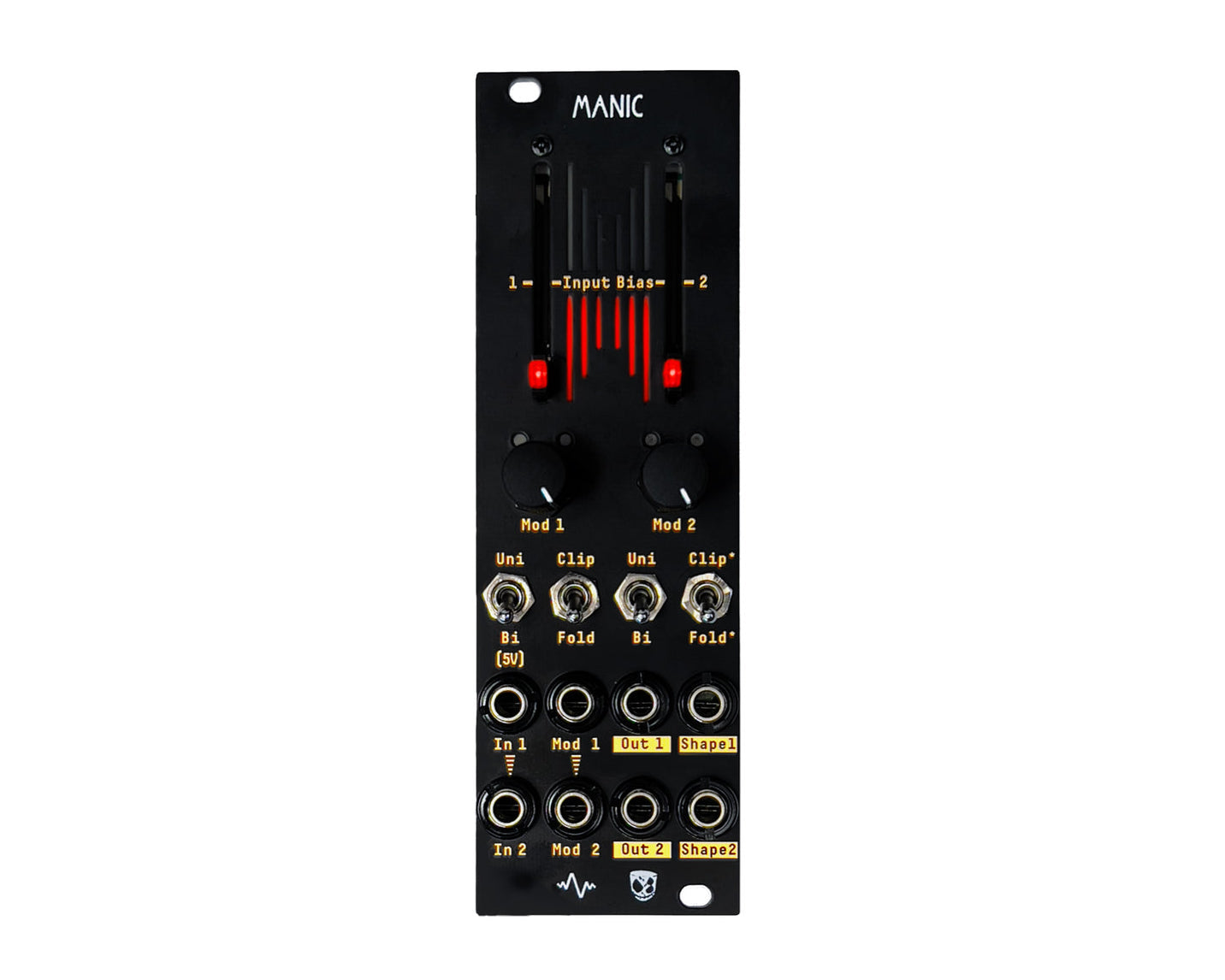

A collaboration between Apollo View and DivKid, Manic introduces an exploration of dual channel mono, mono to stereo or true stereo modulation and sound shaping within an 8HP module designed for both creative freedom and technical precision. Each channel offers precision linear VCA functionality with traditional unipolar amplitude control or bipolar behaviour for complex ring modulation effects. While we all need more VCAs! The x factor lies in the post VCA shape outputs.
Designed to excel with both audio and CV signals, Manic easily processes incoming signals for a broad spectrum of uses. The intuitive layout ensures immediate hands on control making it perfect for live performance and studio experimentation.
FEATURES:
- A collaborative design from both DivKid & Apollo View Modular
- Selectable unipolar or bipolar VCA circuitry per channel
- Three distinct shape outputs per channel: Inverted, Clipped, and Wavefolding
- TanH soft clipping & hard clipping
- Serge style wavefolding & Buchla style wavefolding
- Stereo operation with perfectly matched gains for the clipping and wavefolding circuits, creating a stunning stereo widening effect.
- DC-coupled signal path for processing both audio and CV signals.
- Input and modulation normalisation for simple mono to stereo operation
- Flexible signal flow allows for creative combinations, such as ring modulation into clipping or wavefolding.ā
TECH SPECS:
- 8HP
- 30mm depth
- Reverse polarity protected
- +12V 180mA
- -12V 135mA
Video: https://youtu.be/u9DCzR3zUps
Product Specs
- Item Number: 32363
- Make: DivKid/Apollo View
- Model: Manic
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Distortion Dual/Stereo Effect Polarizer Ring Modulator Utility VCA Waveshaper
- Made In: United Kingdom
- MPN: MANIC
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 8 HP 30 mm deep
- Power: 180 mA +12V 135 mA -12V 0 mA 5V
