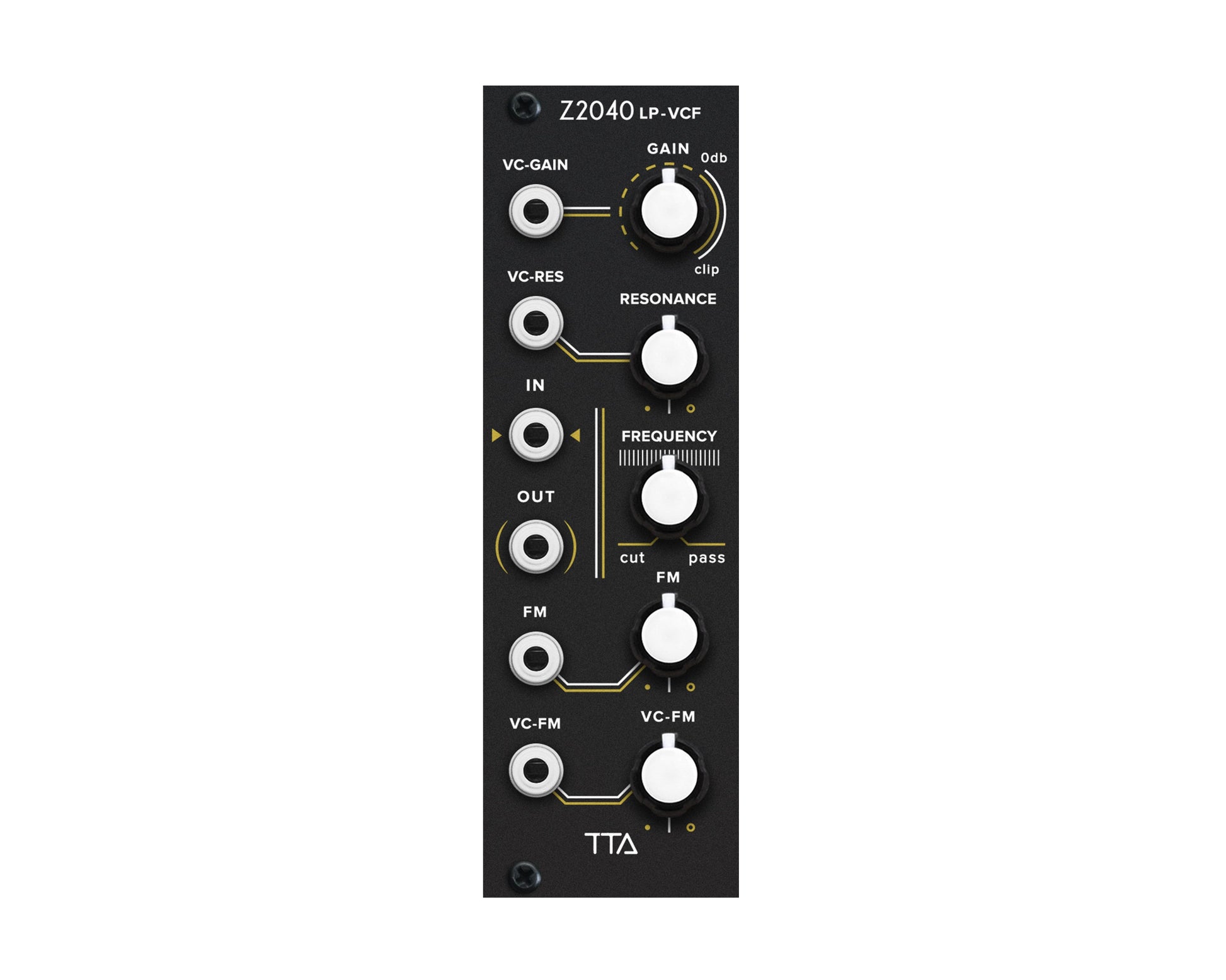

The Z2040 is a redesign of the most famous analogue filter from the poly synths of the '80s and features Tiptop Audio’s signature lush, big and creamy sound. Its frequency sweeps create thick bass lines and leads with great dynamics. The Z2040’s four modulation inputs are built to handle CV and audio signals, enabling deep modulation of the filter core and passing signals. A VC resonance input is provided to modulate and even clip the sine wave produced by the filter feedback loop. A Frequency Modulation input (FM) provides dynamic filter sweeps and the unique VC-FM index allows modulation of the incoming FM signals. On top of that, the Z2040 comes with an audio VCA that can be configured to act upon the input or the output of the filter.
Video: https://youtu.be/45ijEAqcXAg
Product Specs
- Item Number: 31511
- Make: Tiptop Audio
- Model: Z2040 4-Pole Prophet 5 VCF - Black
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Filter VCA
- Made In: Thailand
- MPN: TTA-Z2040B
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 8 HP 42 mm deep
- Power*: 20 mA +12V 20 mA -12V ? mA 5V
* User contributed details
