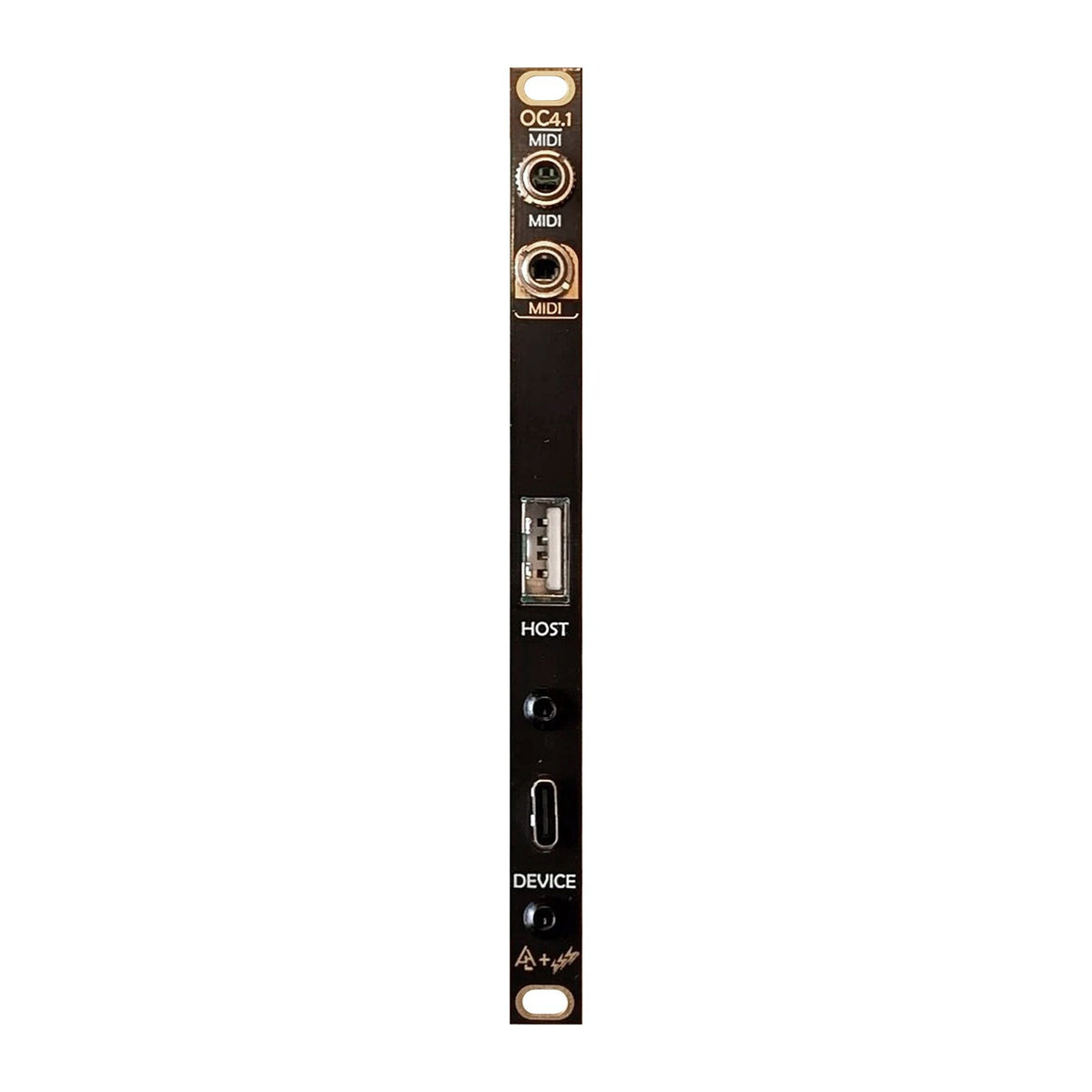

After Later Audio Criminal MIDI Expander

Expands the Ornate Criminal module with 3.5 mm MIDI input/output and USB host/device connectivity. The USB host connection uses USB-A, while the USB device connection uses USB-C.

The 3.5 mm MIDI sockets are switchable between Type A and Type B wiring standards for compatibility with corresponding 3.5 mm-to-DIN MIDI adapters.

Connection

The 2×5 cable connects to the 2×4 MIDI pin header. Align the cable’s red stripe with the red marker on the PCB; pins 9 and 10 are not connected.

Product Specs

• Item Number: 31122
• Make: After Later Audio
• Model: Criminal MIDI Expander
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: MIDI Expander
• Made In: United States
• MPN: OC Midi Expander
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 2 HP
• Power*: Module does not draw current

* User contributed details
