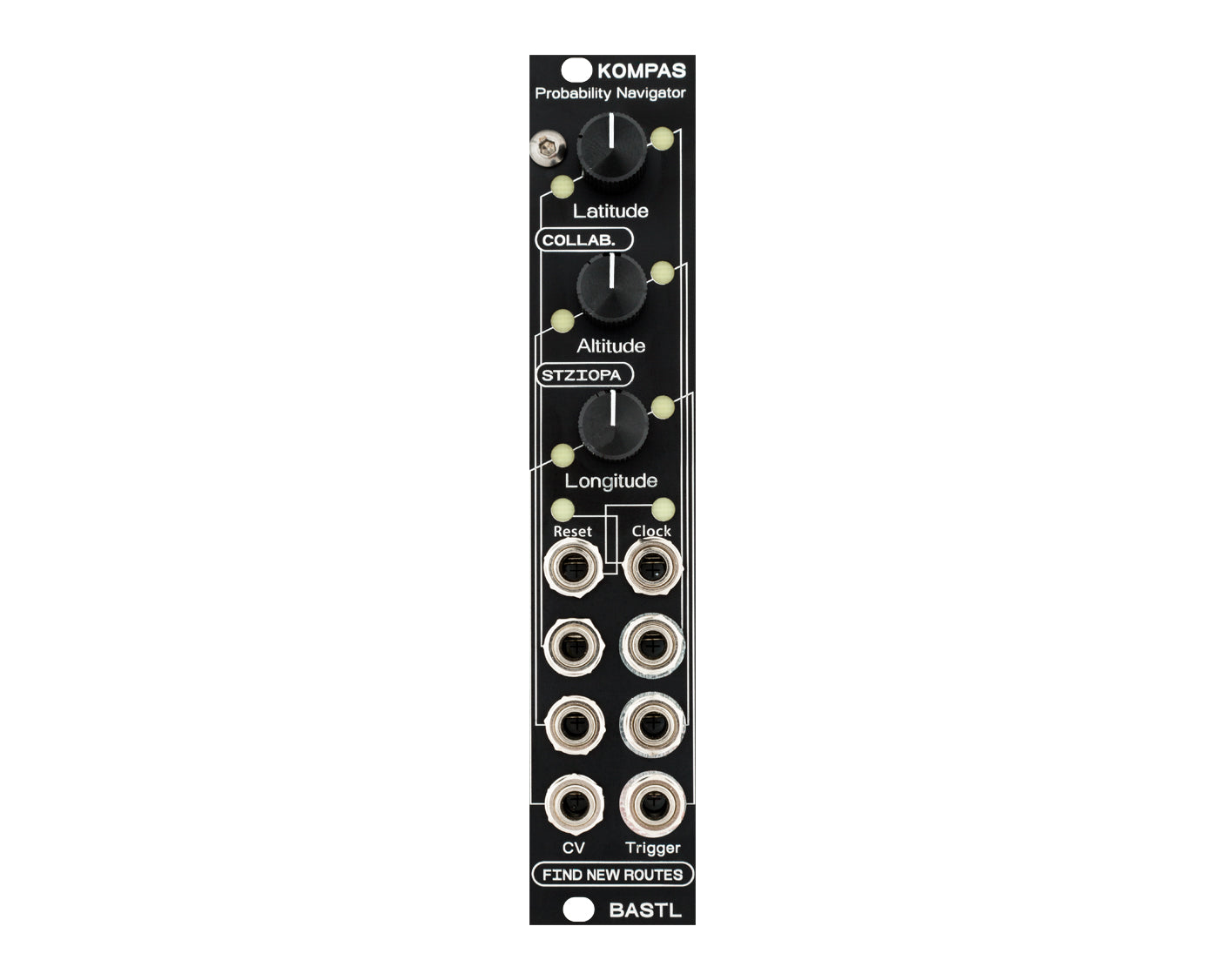

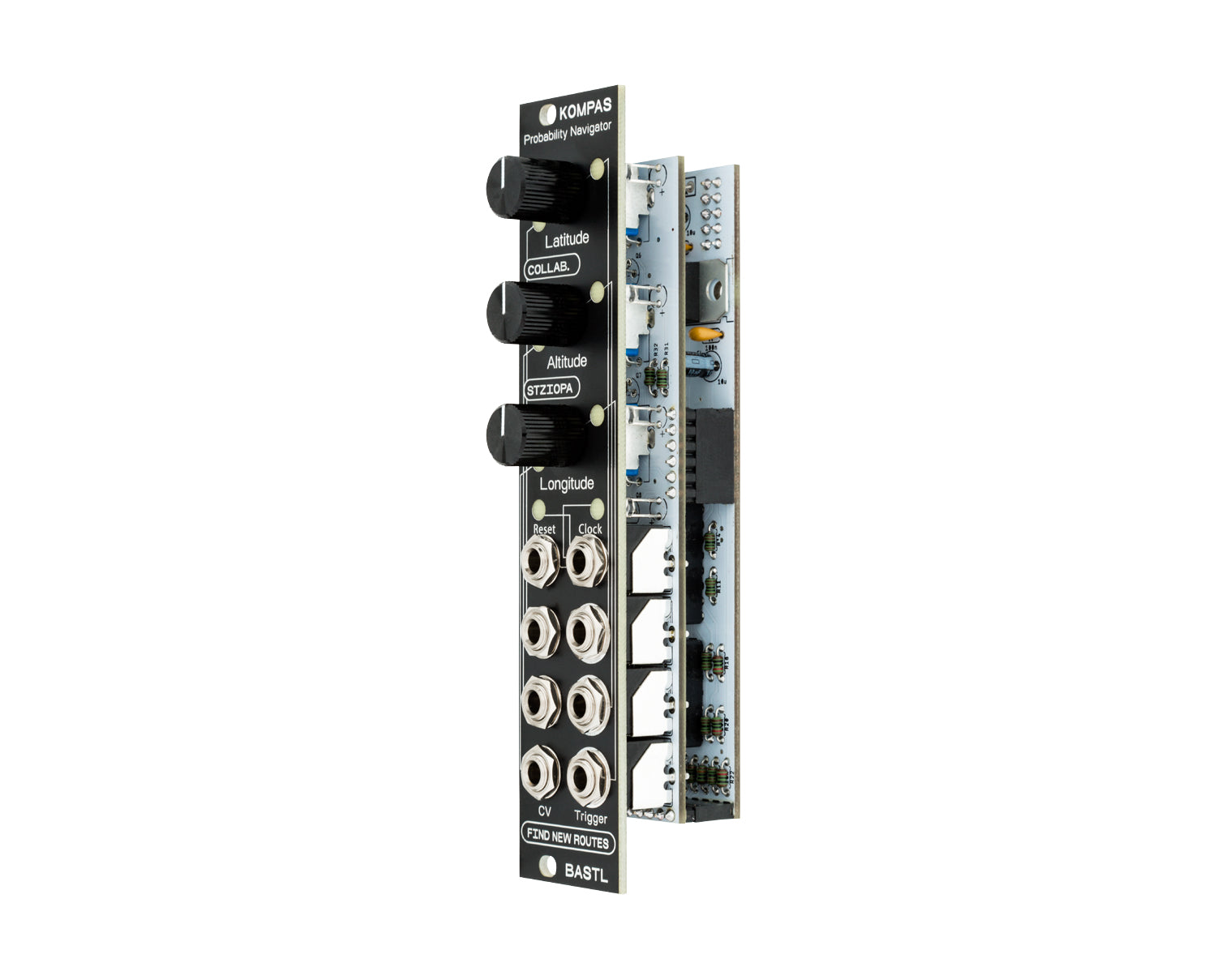

Bastl Instruments Kompas Probability Trigger Generator

Kompas stands out as a tri-coordinate probabilistic pattern navigator, where each coordinate moves at its own pace and comes with a specific trigger output. You can tweak the probability levels either manually or through external voltages. Adjusting any coordinate immediately crafts a new pattern that loops until you decide to switch directions.

Features

• Global clock and reset input
• 3 x 32 step pattern generators with traveling algorithms
• 3 CV inputs for coordinate modulation
• 3 trigger outputs
• 2/5/10ms selectable trigger length (via boot settings)
• DIY and hacker-friendly Arduino programmable hardware
• Open-source schematics and code
• Includes a printed fanzine with navigation topics
• Available also as a DIY soldering and coding workshop

Product Specs

• Item Number: 31092
• Make: Bastl Instruments
• Model: Kompas
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Clock Modulator Digital Sequencer
• Made In: Czech Republic
• MPN: KOM_A
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 5 HP 35 mm deep
• Power*: 30 mA +12V 0 mA -12V 0 mA 5V

* User contributed details
