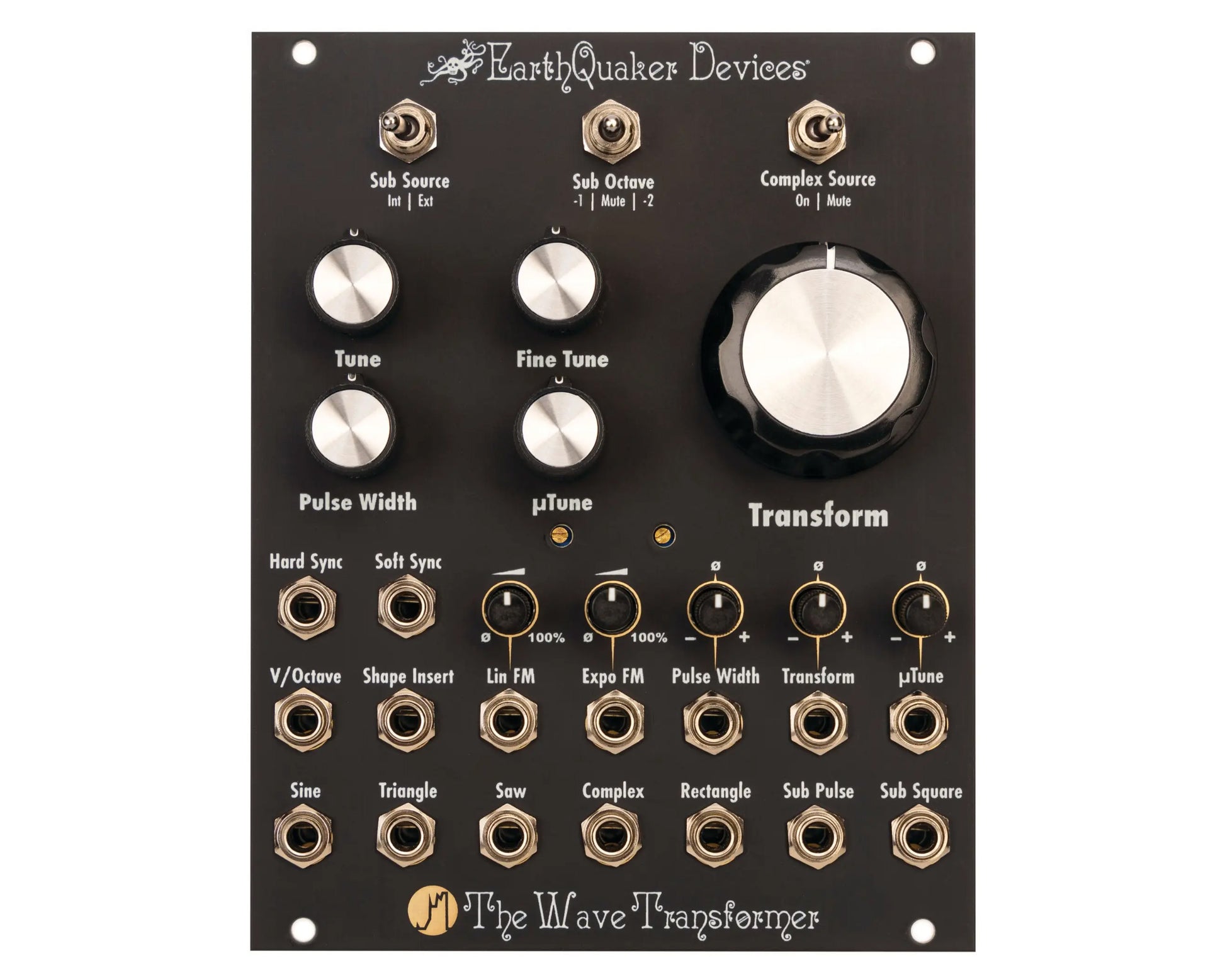

EarthQuaker Devices The Wave Transformer Eurorack Module - Transfiguration Oscillator

EarthQuaker Devices The Wave Transformer Eurorack Module - Transfiguration Oscillator

NEW
$349.00
$349.00
Out of stock
GST inclusive Shipping calculated at checkout.

EarthQuaker Devices forges further down the whacky and wonderful path of modular synthesis, with their new complex single oscillator module, boasting seven audio outputs, a unique "wave transformation" circuit, and a host of exciting features.
The Wave Transformer is an analogue, vintage-voiced, voltage-controlled oscillator with over 8 octaves of accurate pitch tracking. It has 7 simultaneous wave outputs, including a unique Complex output.
 Along its journey to the Complex output, the Transform control will take a basic waveform through many strange iterations, resulting in a complex, gnarled mass of mutated audio. You can discover countless variations on these audio anomalies by combining this novel circuit with Hard Sync, Soft Sync, Linear FM and Exponential FM.

Additionally, you can mute the source waveform to use the circuit as a harmonic gate/VCA, rendering The Wave Transformer a voice unto itself. If that is not enough, there is a Shape Insert that allows you to transform external oscillations and modular-level audio sources.

SPECIFICATIONS

  • 100% Analogue Circuit.
  • Over 8 octaves of pitch tracking starting from A-1 (13.75Hz), covering more than the full range of a traditional piano keyboard.
  • 7 simultaneous waveform outputs.
  • Dedicated attenuators/attenu-verters for each CV input.
  • Hard and soft sync inputs.
  • Pulse width control between 0% and 100%.
  • Fixed -1 octave 25% duty cycle suboctave pulse output.
  • Sub Square output switchable between 1 and 2 octaves down.
  • Complex Source Mute switch allows simultaneous control of volume and timbre up to audio rates via the Transform CV input.
  • Dimensions: 20HP / Max Depth: 1” /25.4 mm
  • Current Draw: 90 mA max from the +12v rail, 90 mA max from the -12v rail.
  • Standard 10-pin Eurorack power connector with a marking to notate the negative pins.
  • Reverse Voltage Protection.
  • Over-current protection on all outputs.
  • Skiff friendly – protrudes less than 1” (25.4 mm) behind the panel with the power header installed.

Video: https://youtu.be/XuGoZKvKWRc
