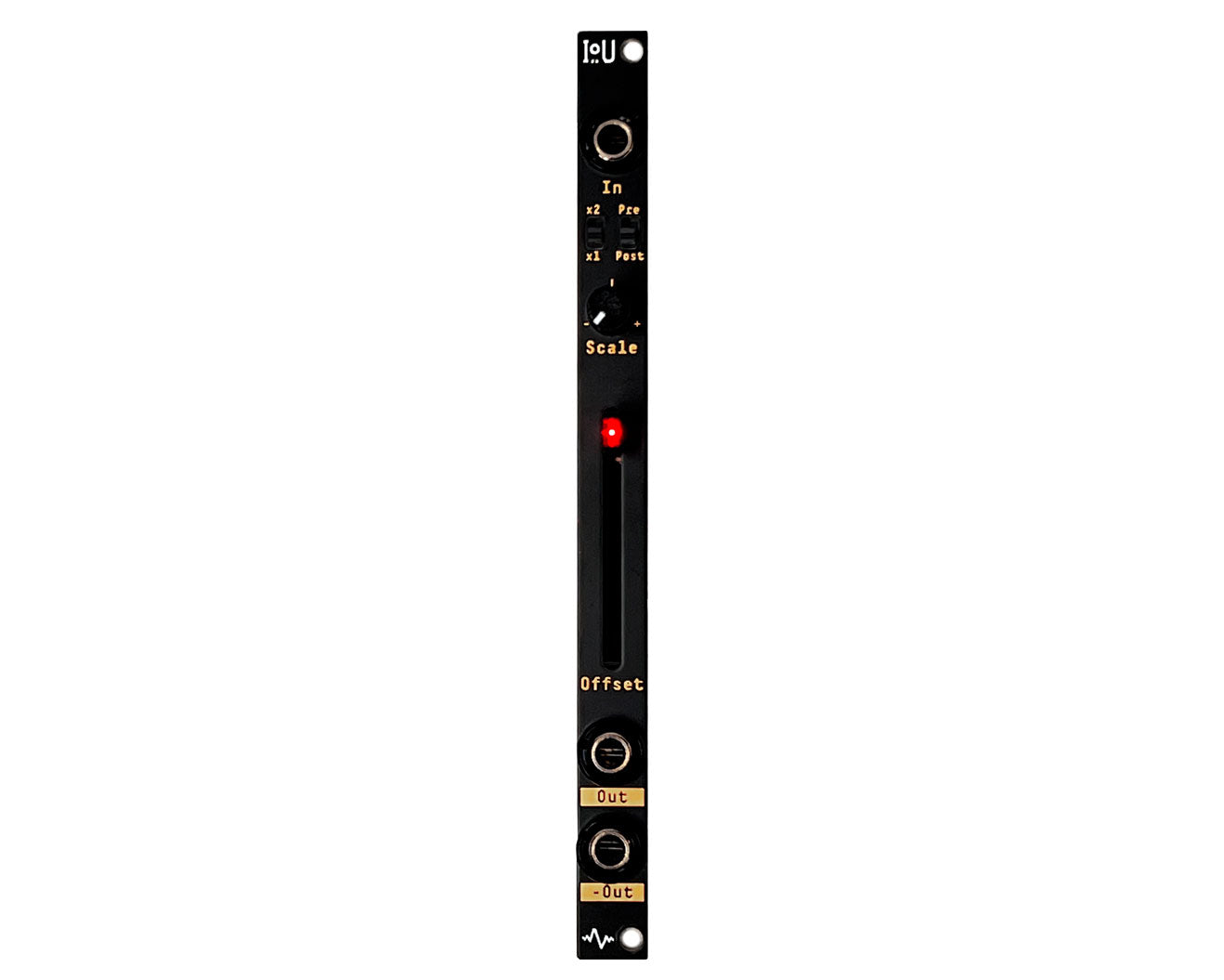

IOU from Apollo View is a super-handy utility module in 2hp. IOU stands for Invert Offset Utility, and is fully DC coupled allowing it to process both audio and CV. A 2x switch allows outputs up to 10V, and a bipolar scaling pot lets you scale and invert your signal. The LED fader is a DC offset allowing you to place your scaled signals exactly in the CV range you want. The module has two outputs, with the lower output providing an inverted version of the top one, making it useful for handy processing tricks like crossfading.
Features
- Attenuverter: Scales and inverts signals with precision
- Unipolar DC Offset Slider: Offers up to +10V offset control with LED feedback
- DivKid-Inspired Switch: Choose to apply offset Pre or Post-attenuverter for flexible signal shaping
- Output Gain Selection: 1x and 2x settings to accommodate varying voltage standards
- Dual Polarity Outputs: Provides both standard and inverted outputs for differential modulation
Tech Specs
- 2HP
- 30mm depth
- Reverse polarity protected
- +12V 15mA
- -12V 5mA
Video: https://youtu.be/pLSBj_0w328
Product Specs
- Item Number: 30734
- Make: Apollo View
- Model: IOU
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Attenuator Utility Polarizer
- Made In: United Kingdom
- MPN: APLL05
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 2 HP 30 mm deep
- Power: 15 mA +12V 5 mA -12V ? mA 5V
