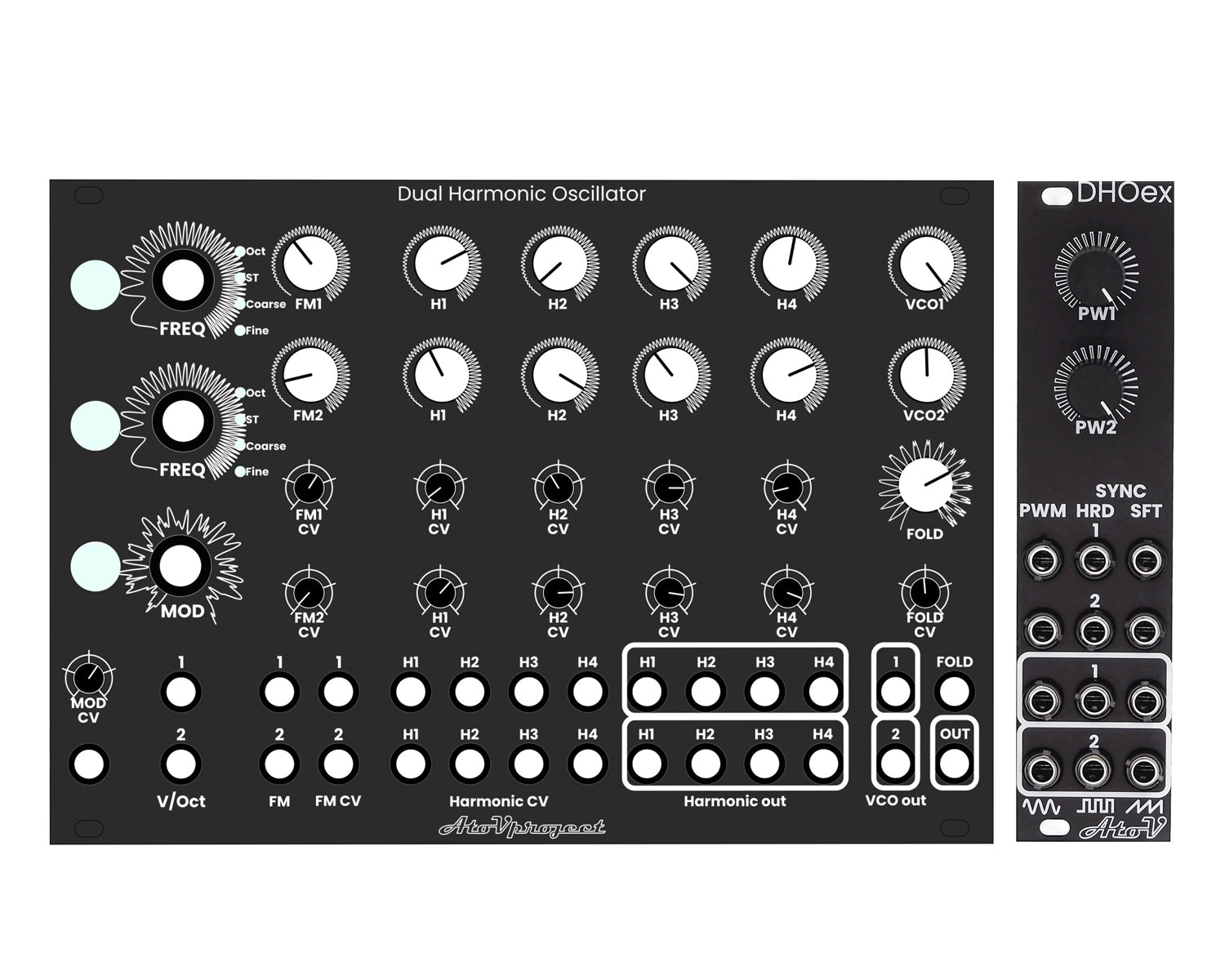

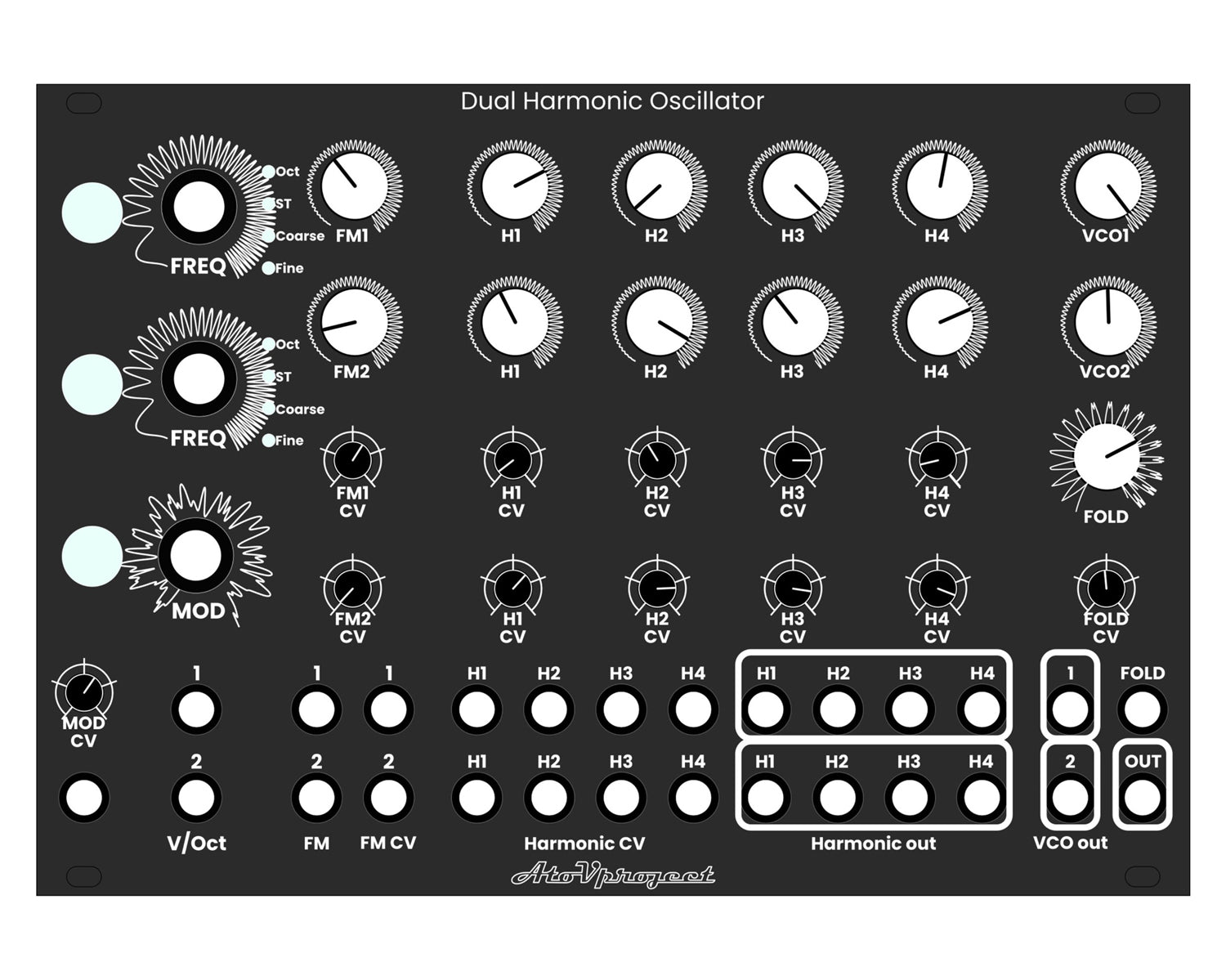

The AtoVproject DHO or Dual Harmonic Oscillator is is an analog oscillator with digital control and also the first Eurorack module ever to feature haptic feedback.
Traditional complex oscillators are renowned for their vast sonic potential yet they can be challenging to fully exploit due to the many modulators they require. The DHO uses a new approach to make this much easier than ever before. An algorithm from the video game industry has been used to allow the dynamic modulation of 10 parameters. With a simple twist of a knob, one can explore infinite soundscapes and give life to the whole module with just one CV input! The DHO also features 10 internal LFO for even more movement. Without the need for a huge number of other modulators DHO can propel you to new sonic territories all on its own.
Features
- Two oscillators with triangle wave
- 4 harmonies per oscillator (4 octaves)
- Thru-zero FM
- FM index
- Internal modulation sources with LFOs and simplex noise
- Lots of CV inputs
- Individual audio outputs for all harmonies
- Mixer with wavefolder

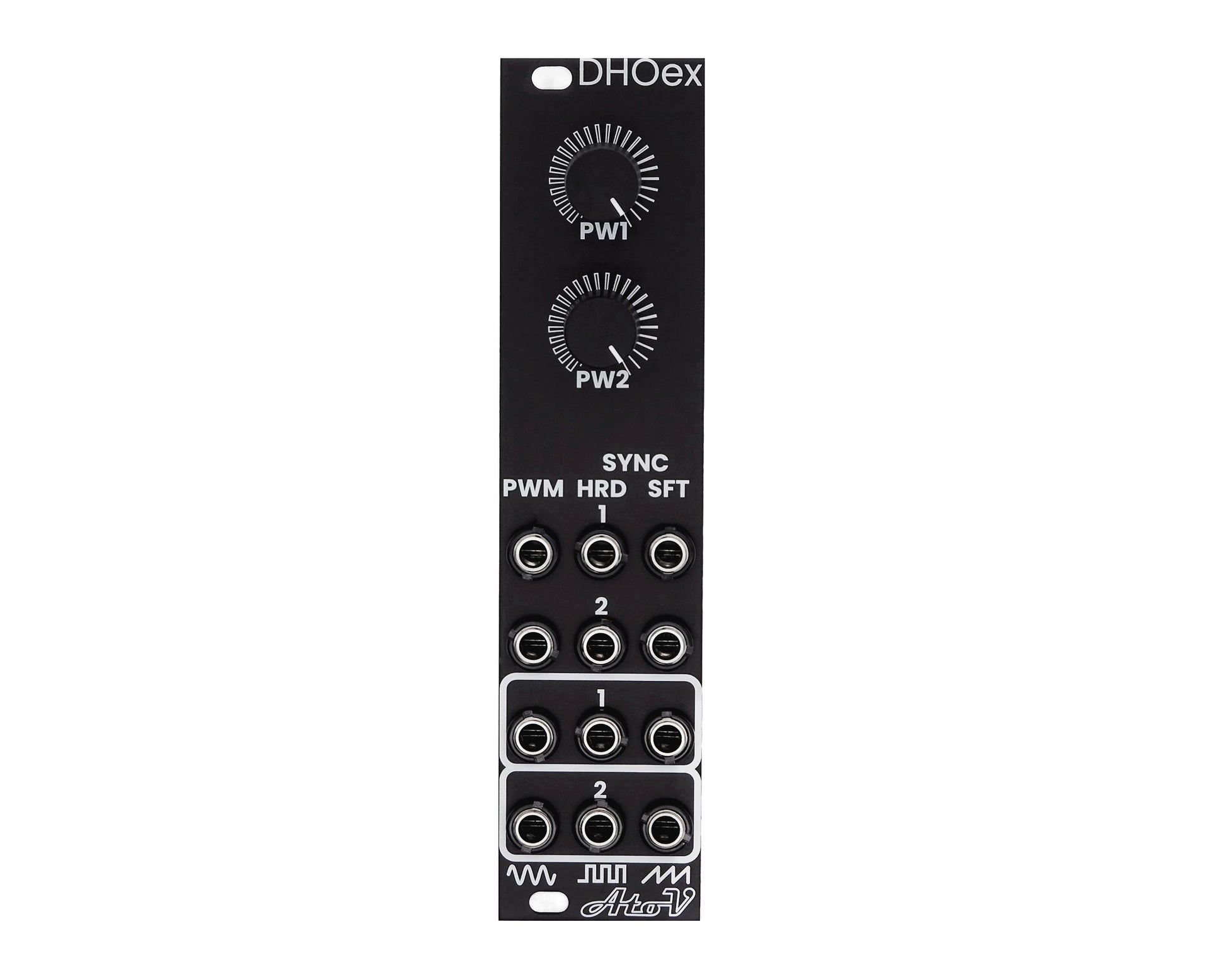

- Expander DHOex with sine, pulse and ramp wave, as well as PWM
Video: https://youtu.be/if5ncIRH7Ow
Product Specs
- Item Number: 30452
- Make: AtoVProject
- Model: Dual Harmonic Oscillator - Black
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: LFO Oscillator Random Waveshaper
- Made In: Germany
- MPN: ATOV-DHOB
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 36 HP 20 mm deep
- Power*: 215 mA +12V 140 mA -12V 0 mA 5V
* User contributed details
