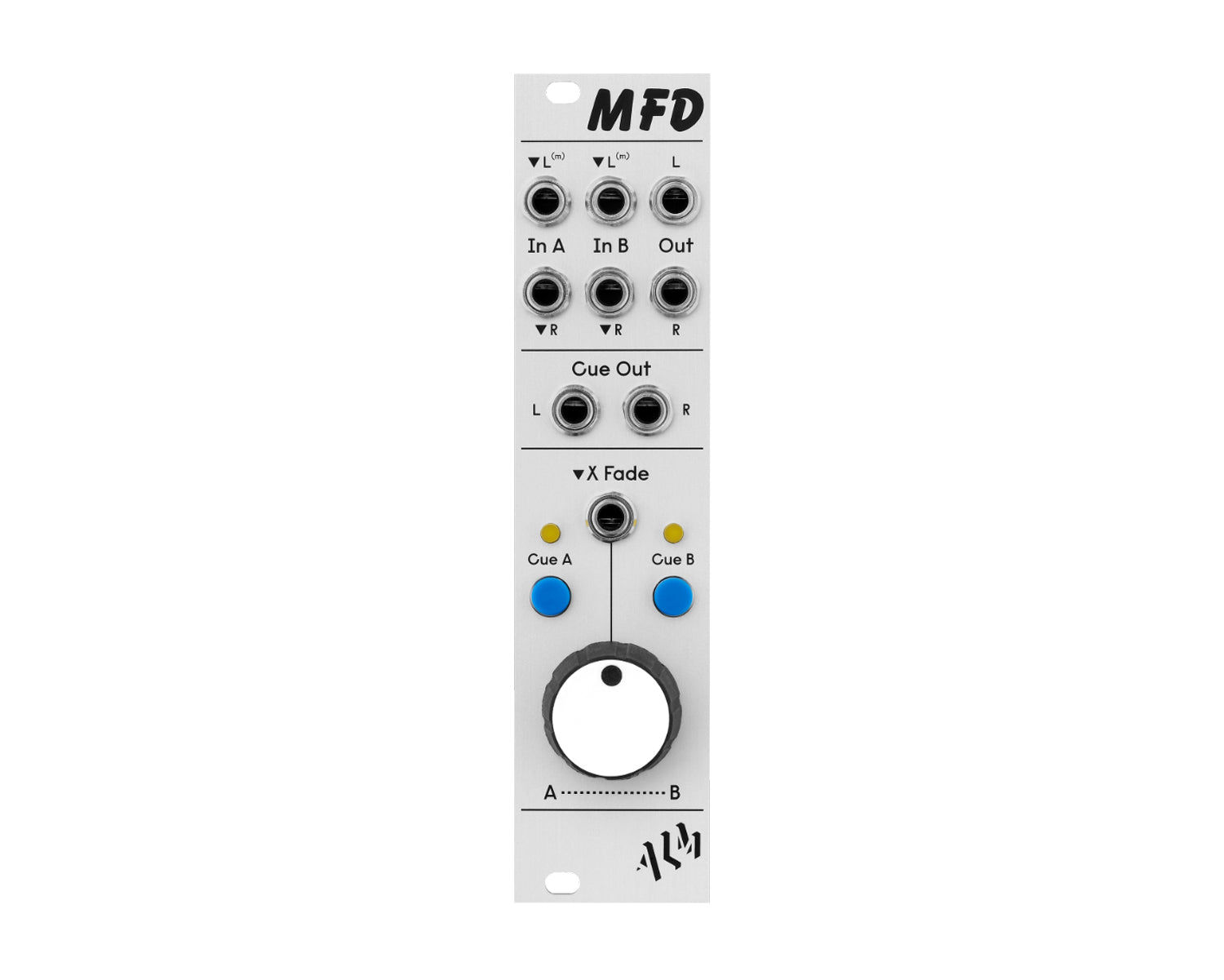

The ALM MFD is a 2-channel stereo cross fader designed for live DJ-style mixing and jamming in a Eurorack format. Two mono or stereo inputs are mixed to a single stereo output via direct or voltage control. Additional Cue controls provide preview monitoring of either input pre-mix via dedicated Cue switches and an output.
Voltage control over the cross fade and DC coupling allow for further creative uses such as a high quality stereo VCA or as a mix processor for either stereo audio signals or CV.
The MFD is designed to have very low noise and cross bleed and employs equal power cross fading for smooth constant level blending between signal sources.
Video: https://youtu.be/STKjOn0r8aQ
Product Specs
- Item Number: 30445
- Make: ALM Busy Circuits
- Model: MFD
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Dual/Stereo Utility VCA
- Made In: United Kingdom
- MPN: ALM044
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 6 HP 32 mm deep
- Power*: 70 mA +12V 70 mA -12V ? mA 5V
* User contributed details
