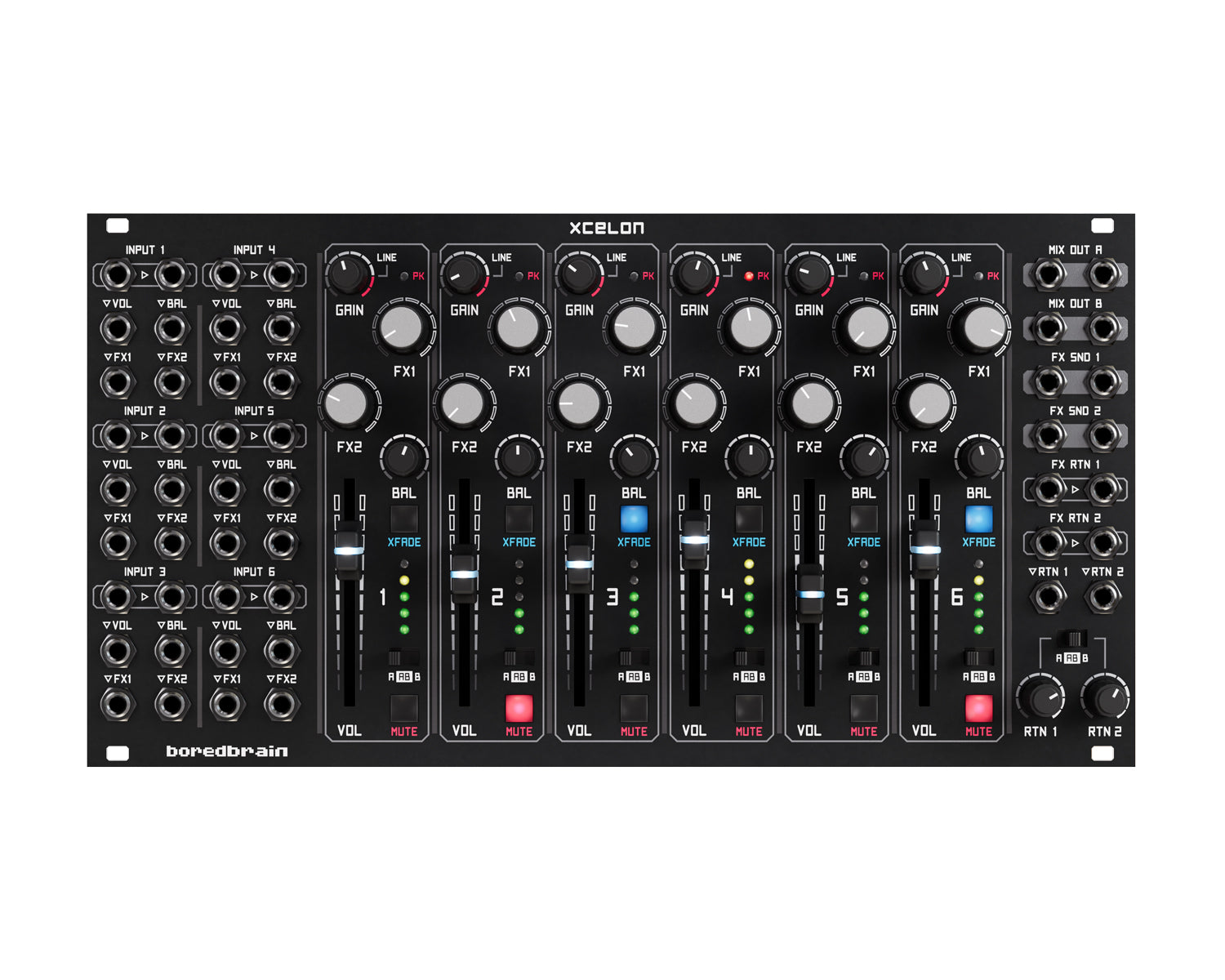

The Boredbrain Xcelon is an all-analog six-channel 48HP stereo audio mixer for eurorack modular systems. With an interface designed for immediate hands-on control and visual feedback, plus extensive CV and expandability, the module is a powerful mixing tool for both performance and production.
Features:
- Six stereo/dual-mono channels with low-noise analog circuitry
- Two stereo FX sends and two dedicated FX returns
- Two stereo output mix busses selectable per-channel
- Variable input gain for both modular and line-level sources
- Long-travel volume faders with CV responsive LED indicators
- Balance controls with pan law curve and dual-mono crossfade mode
- Clickless mutes and VU meters on all channels
- Twenty-six discrete control voltage inputs
- Configurable jumpers for pre/post-fader FX and meters, plus volume VCA mode
- Expansion ports for channel expanders, direct outputs, and more Â
Technical Specs:
- Audio Inputs: 16 x 3.5 mm jacks (8 stereo pairs)
- Audio Outputs: 8 x 3.5 mm jacks (4 stereo pairs)
- CV Inputs: 26 x 3.5 mm jacks
- Input Impedance: 100 kΩ
- Channel Input Gain: +15 dB
- Width: 48 HP
- Depth: 1.5 in (38 mm)
- Weight: 24 oz (680 g)
- Power: +12 V 395 mA (470 max), -12 V 320 mA
Video: https://youtu.be/MMQP5-IXwuQ
Product Specs
- Item Number: 30439
- Make: Boredbrain
- Model: Xcelon
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Dual/Stereo External Mixer VCA Panning PreAmp Utility
- Made In: United States
- MPN: BB-XCELON
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 48 HP 38 mm deep
- Power: 395 mA +12V 320 mA -12V ? mA 5V
