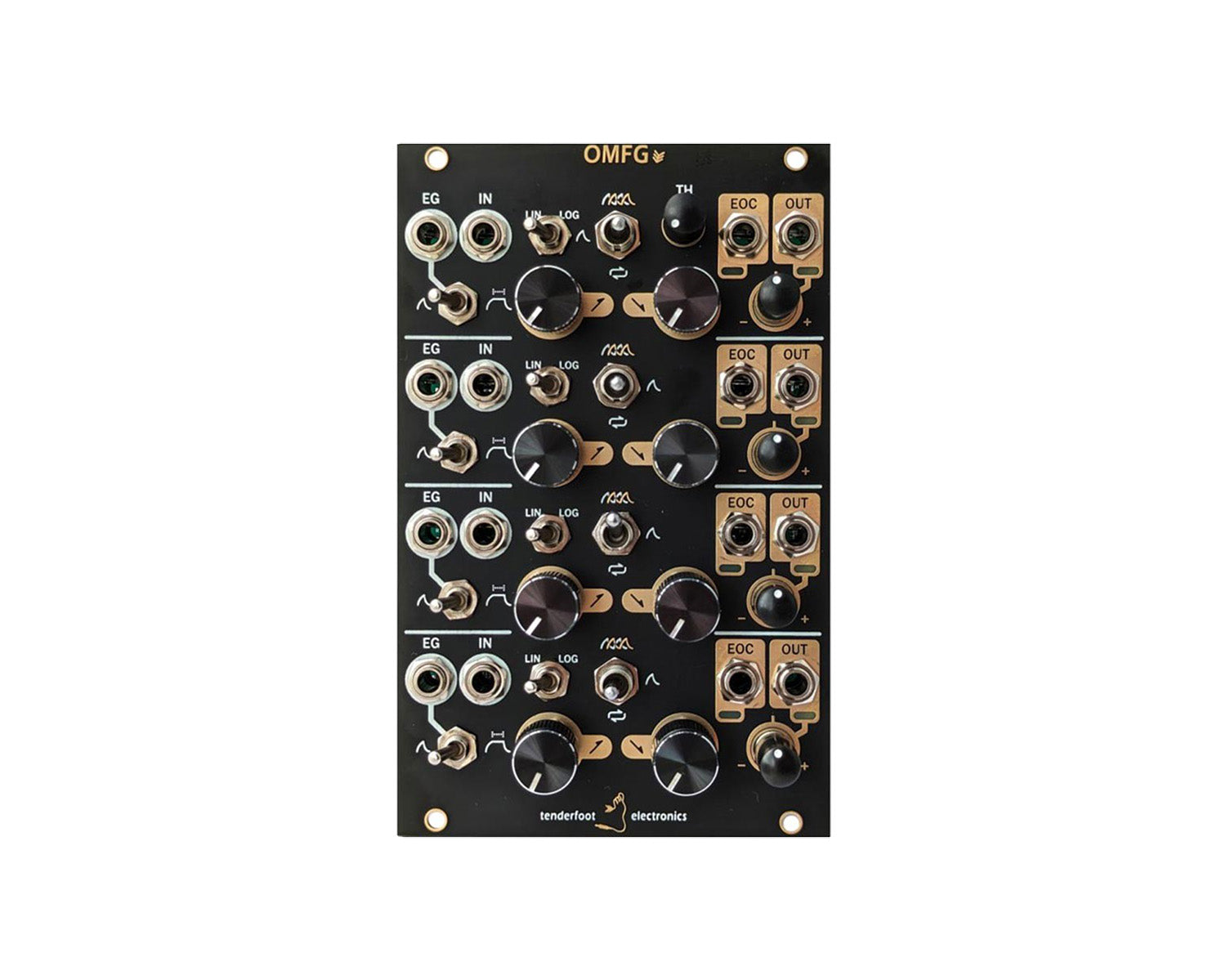

The OMFG from Tenderfoot is a versatile four-channel function generator and slew limiter, complete with a 4hp expander. Each channel is equipped with two inputs: 'In' for slewing signals and 'EG' for triggering envelopes. The EG input is compatible with both trigger and gate signals, supporting AR or ASR envelopes. Users can select either linear or logarithmic envelope slopes. Modes include Looping, Single trigger, and Quadrature, where each envelope's end triggers the next channel's envelope. It offers adjustable Rise and Fall times, along with output attenuation for each channel. The attack time can extend up to 48 seconds, and release time up to 57 seconds, with minimum speeds of 0.232ms for attack and 0.750ms for release. The OMFG by Tenderfoot Electronics is an excellent addition to any setup, providing remarkable flexibility.
Features
- 4-channel function generator
- Runs as a Slew or EG
- Each channel has an output attenuation
- Rise and Fall controls for 0.232ms/0.750ms to 48s/57s range
- Linear and Logarithmic slope switch per channel
- Switchable operation from cycling, single shot, or quadrature (previous EOC triggers a new envelope)
- Main output with EOC output per channel
- 4hp Expander included which offers CV over Rise and Fall opening up VCO possibilities
Product Specs
- Item Number: 30154
- Make: Tenderfoot
- Model: OMFG
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: CV Modulation Envelope Generator LFO Slew Limiter
- Made In: Taiwan
- MPN: TDFT19
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 16 HP 35 mm deep
- Power*: 126 mA +12V 110 mA -12V 0 mA 5V
* User contributed details
