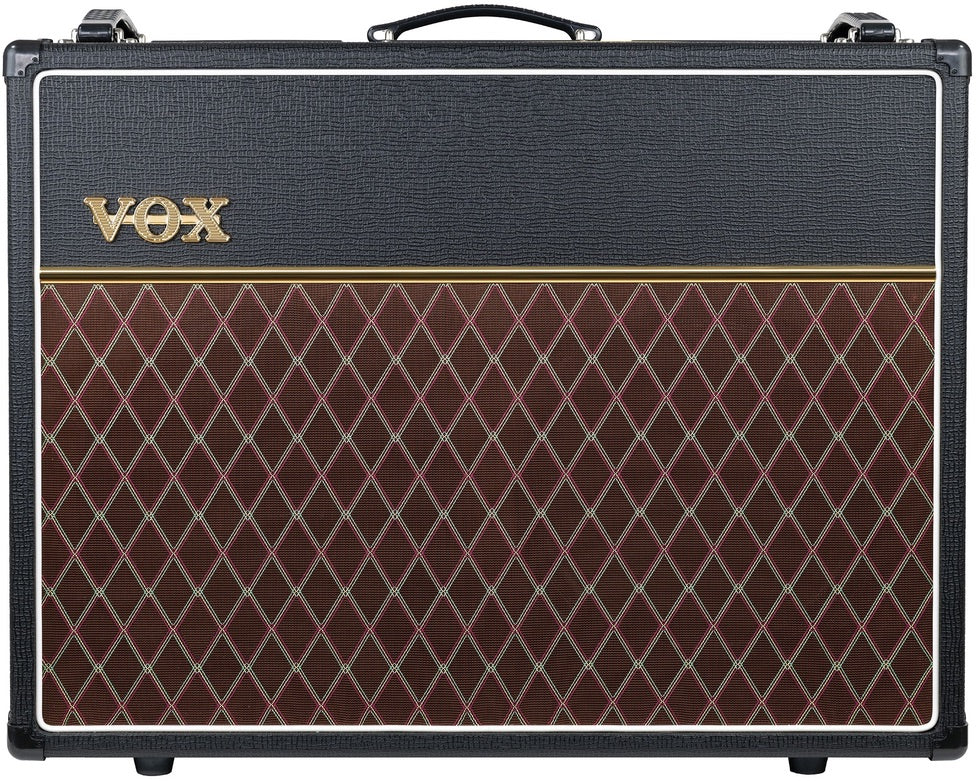

VOX AC30C2X 2X12" Custom 2 Series Valve Combo w/Alnico Blue Speakers

VOX AC30C2X 2X12" Custom 2 Series Valve Combo w/Alnico Blue Speakers

PRE ORDER
$2,699.00 AUD
$2,699.00 AUD
Taxes included. Shipping calculated at checkout.

Out of stock

The VOX AC30C2X is a 30-watt all-valve combo amplifier that carries forward one of the most influential amplifier designs ever produced. Originally made famous during the British Invasion of the 1960s, the AC30 remains celebrated for its unmistakable chime, rich harmonic complexity, and dynamic response.

Powered by four EL84 output valves and loaded with a pair of Celestion Alnico Blue speakers, the AC30C2X delivers everything from expansive cleans to harmonically rich overdrive, responding directly to picking dynamics and guitar volume changes. Whether played clean or pushed into saturation, the amp retains the articulate top end and musical compression that have made the AC30 a favourite for decades.

Classic VOX Topology

The AC30 features two independent channels:

Normal Channel

A straightforward signal path focused on clarity, warmth, and dynamic response.

Controls: - Volume

Inputs: - Normal High - Normal Low

Top Boost Channel

The legendary Top Boost circuit adds additional gain and EQ flexibility, offering the sparkling highs and harmonic richness most closely associated with the classic AC30 sound.

Controls: - Volume - Bass - Treble

Inputs: - Top Boost High - Top Boost Low

Valve Power Section

The AC'30s output stage uses four EL84 power valves to produce 30 watts of output power.

This configuration delivers: - Smooth compression - Harmonic richness - Dynamic touch sensitivity - Responsive breakup characteristics - Classic VOX chime

The interaction between the EL84 power section and Alnico Blue speakers is a significant part of the AC'30s distinctive character.

Celestion Alnico Blue Speakers

The AC30C2X is fitted with two 12" Celestion Alnico Blue speakers.

These iconic speakers contribute: - Fast transient response - Open upper frequencies - Rich harmonic detail - Smooth compression at higher volumes - The classic AC30 voice heard on countless recordings

Built-In Reverb & Tremolo

The amplifier includes onboard spring reverb and tremolo effects.

Reverb Controls

  • Reverb Level
  • Reverb Tone

Tremolo Controls

  • Tremolo Speed
  • Tremolo Depth

Both effects can add movement, ambience, and vintage character without requiring external pedals.

Master Section

The master controls allow additional shaping of the amplifier's overall response.

Controls include: - Master Volume - Master Tone Cut

The Tone Cut control trims high frequencies in the power section, offering a different tonal character than conventional treble controls.

Features

  • 30-watt all-valve combo amplifier
  • Four EL84 output valves
  • Two-channel design
  • Normal and Top Boost channels
  • Celestion Alnico Blue speakers
  • Built-in spring reverb
  • Built-in tremolo
  • Master Volume
  • Master Tone Cut
  • Effects loop
  • External speaker outputs
  • Classic VOX chime and harmonic response

Specifications

| Specification | Details | |---|---| | Power Output | 30 Watts RMS | | Speaker Configuration | 2 × 12" | | Speakers | Celestion Alnico Blue | | Output Impedance | 8Ω or 16Ω | | Power Tubes | 4 × EL84 |

Inputs

  • Normal High Input
  • Normal Low Input
  • Top Boost High Input
  • Top Boost Low Input
  • FX Return

Outputs

  • 2 × External Speaker Outputs
  • 1 × Extension Speaker Output
  • FX Send

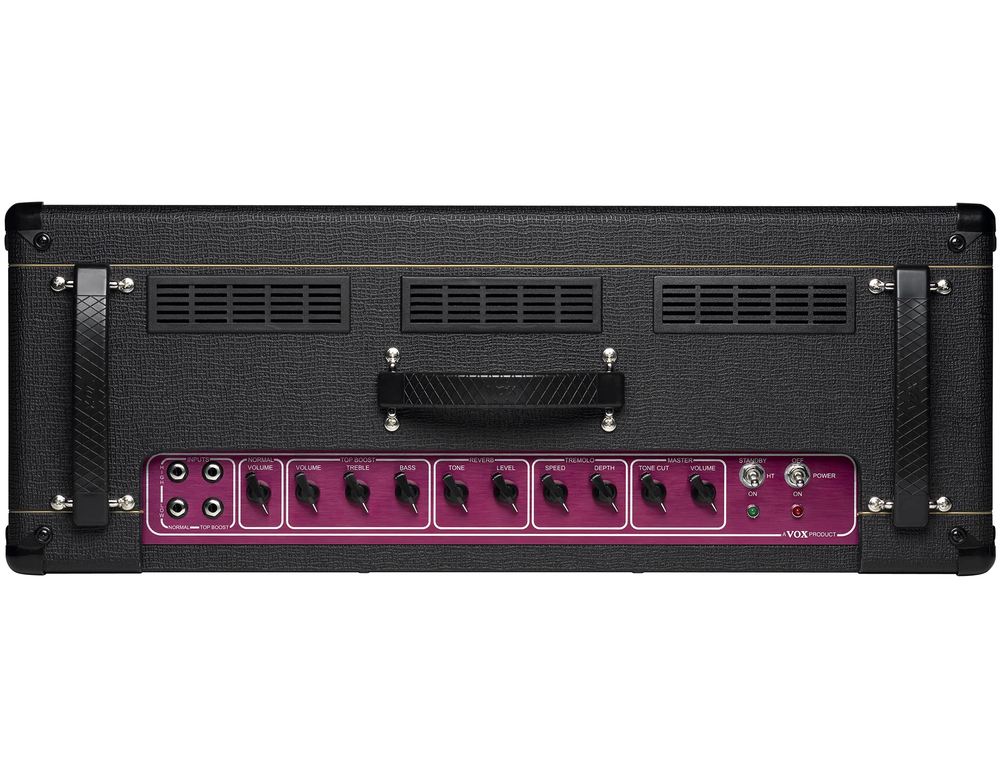

Controls

  • Master Volume
  • Master Tone Cut
  • Normal Volume
  • Top Boost Volume
  • Top Boost Bass
  • Top Boost Treble
  • Reverb Tone
  • Reverb Level
  • Tremolo Speed
  • Tremolo Depth
