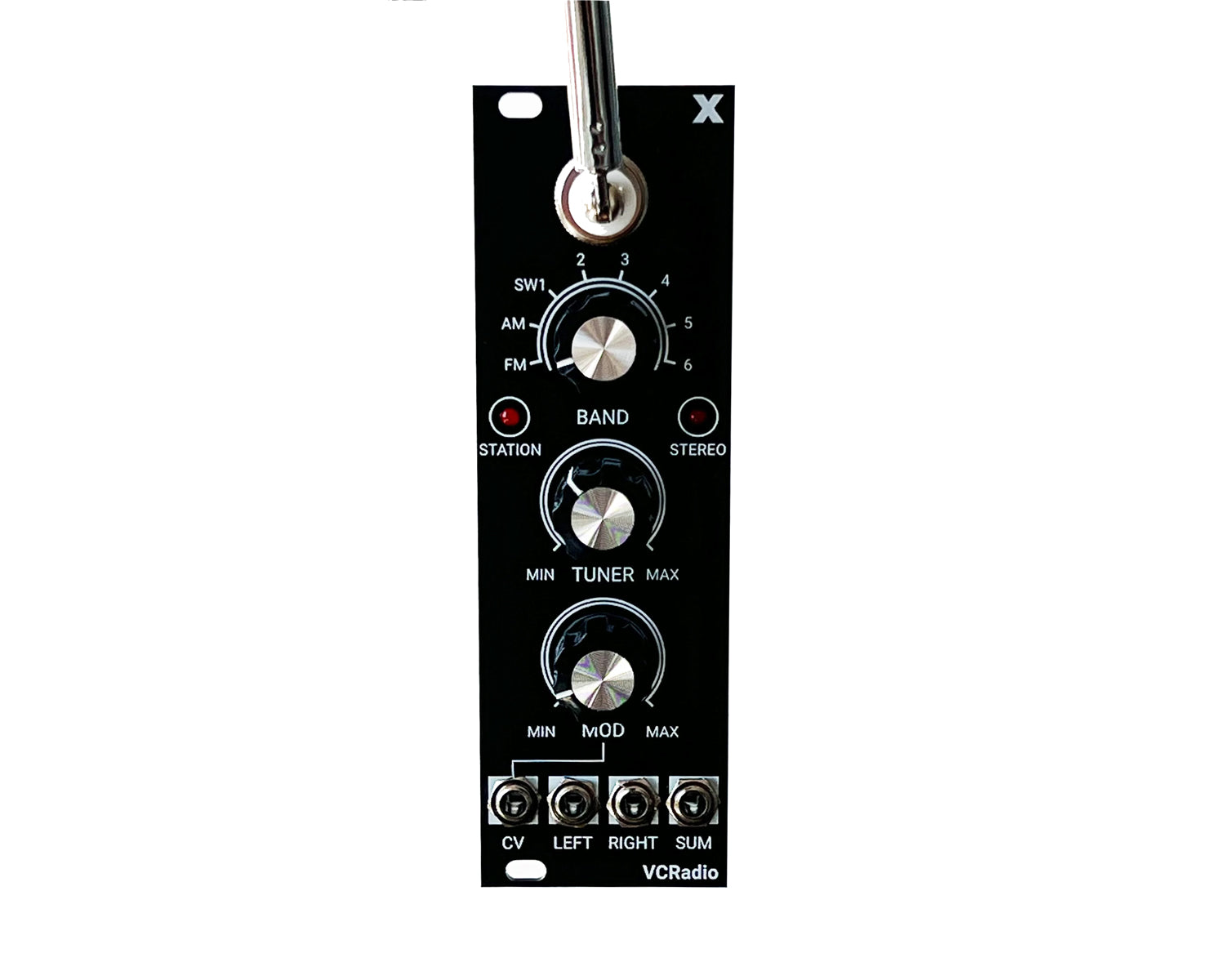

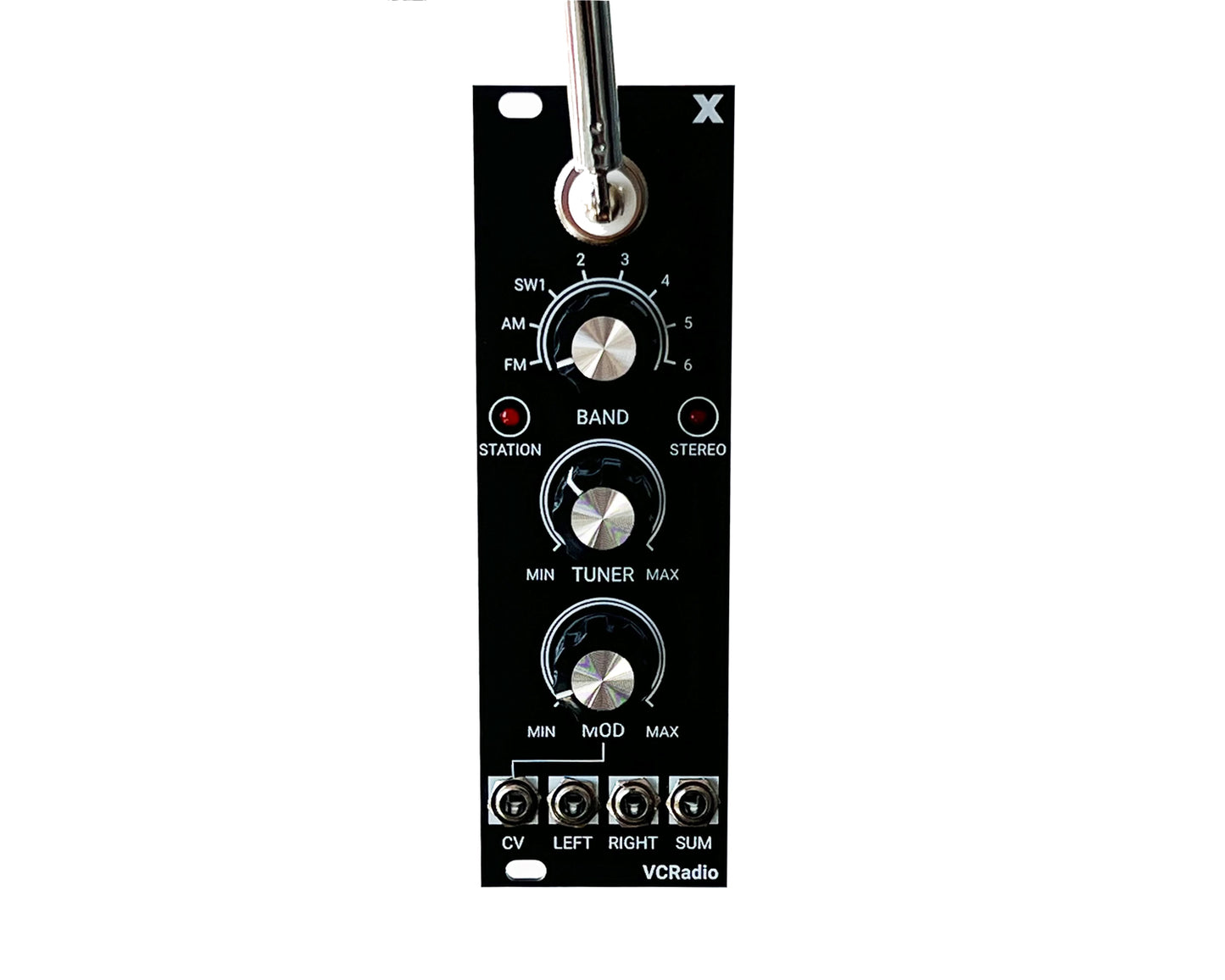

The X Audio Systems VCRadio is an 8HP voltage-controlled FM/AM/SW stereo radio receiver with modulation capabilities.
It generates a continuous stream of audio content, noises, squelches and broadcasts, depending on where you are located in the world. The unit will easily pick up any radio station or noises lurking at any frequency within the selected range.
Connect an LFO in the CV input to modulate the TUNER knob to create beats/patterns of mixed radio signals and noises!.
The VCRadio is a highly sensitive device so it will respond very well to LFO cycles below 7Hz or 8Hz. But above this rate the unit will tend to ignore the modulation.
FEATURES:
* 1 radio receiver (FM – AM – 6 bands of Short Waves) * 2 LEDs indicating if the signal is strong (STATION) or stereo (STEREO) * 1 CV Input (with gain) to modulate the TUNER knob with an external signal (-5V – +5V) * 3 audio outputs (LEFT, RIGHT, SUM) * 2 antennas (telescopic for FM/SW and ferrite loop for AM)
RADIO BANDS:
* FM Radio (88 – 108 MHz) * AM Radio (520 – 1710 kHz) * SW Band 1 (2,3 – 2,5 MHz) * SW Band 2 (3,9 – 4,0 MHz) * SW Band 3 (5,6 – 6,4 MHz) * SW Band 4 (6,8 – 7,6 MHz) * SW Band 5 (9,2 – 10,0 MHz) * SW Band 6 (11,6 – 12,2 MHz)
Video: https://youtu.be/uwyrlwU_Lt4
Product Specs
- Item Number: 29519
- Make: X Audio Systems
- Model: VCRadio
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Noise CV Modulation Dual/Stereo Random
- Made In: Italy
- MPN: VCRADIO
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 8 HP 25 mm deep
- Power: 55 mA +12V 45 mA -12V 0 mA 5V
