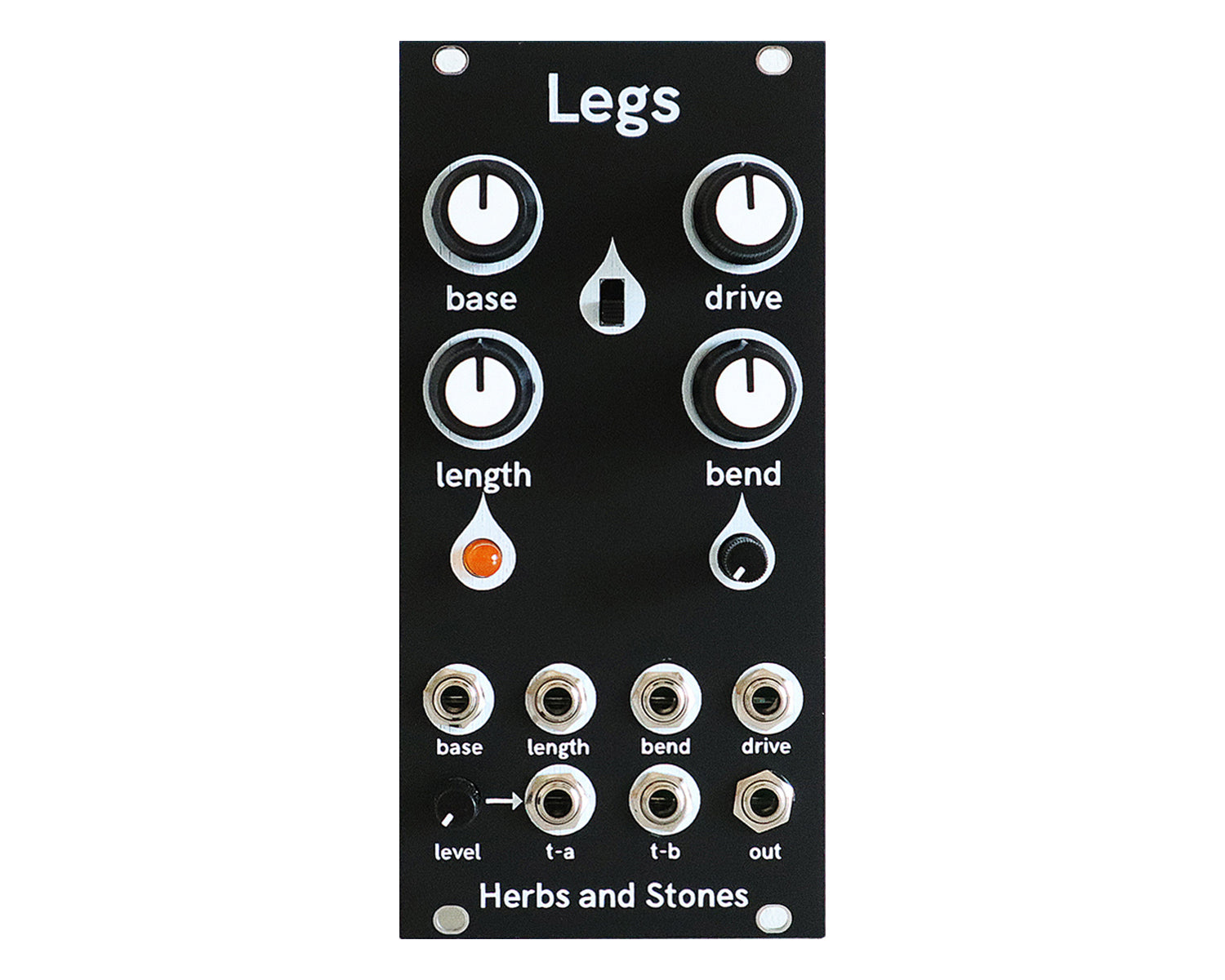

Herbs & Stones Legs Analog Kick & Percussion Synthesizer

The Herbs & Stones Legs is a 12HP analog kick and percussion synthesiser module in eurorack format, based around a triangle core voltage controlled oscillator and a two level voltage controlled saturation stage.
Each parameter has its own dedicated CV input, when a control signal is patched into any of the inputs its corresponding knob will act as a CV attenuator.
Two independent gate/trigger input with level control can be used to create accents, pattern changes and generally work on track dynamic. Each of those inputs has its own trigger conditioner circuit so it can take different types of signals, not necessarily rectangular waves or short triggers (its threshold is set at +2.5V). The CV inputs expect voltages in the 0-5V range (a negative voltage won’t damage the unit and won’t affect the sound).
From grumbling low end basses to distorted warehouse window-breakers, Legs can synthesise it all.

Video: https://youtu.be/VvVvTiBFJog

Product Specs

• Item Number: 29168
• Make: Herbs & Stones
• Model: Legs
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Drum
• Made In: Italy
• MPN: HERB05
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 12 HP 22 mm deep
• Power*: 12 mA +12V 8 mA -12V 0 mA 5V

* User contributed details
