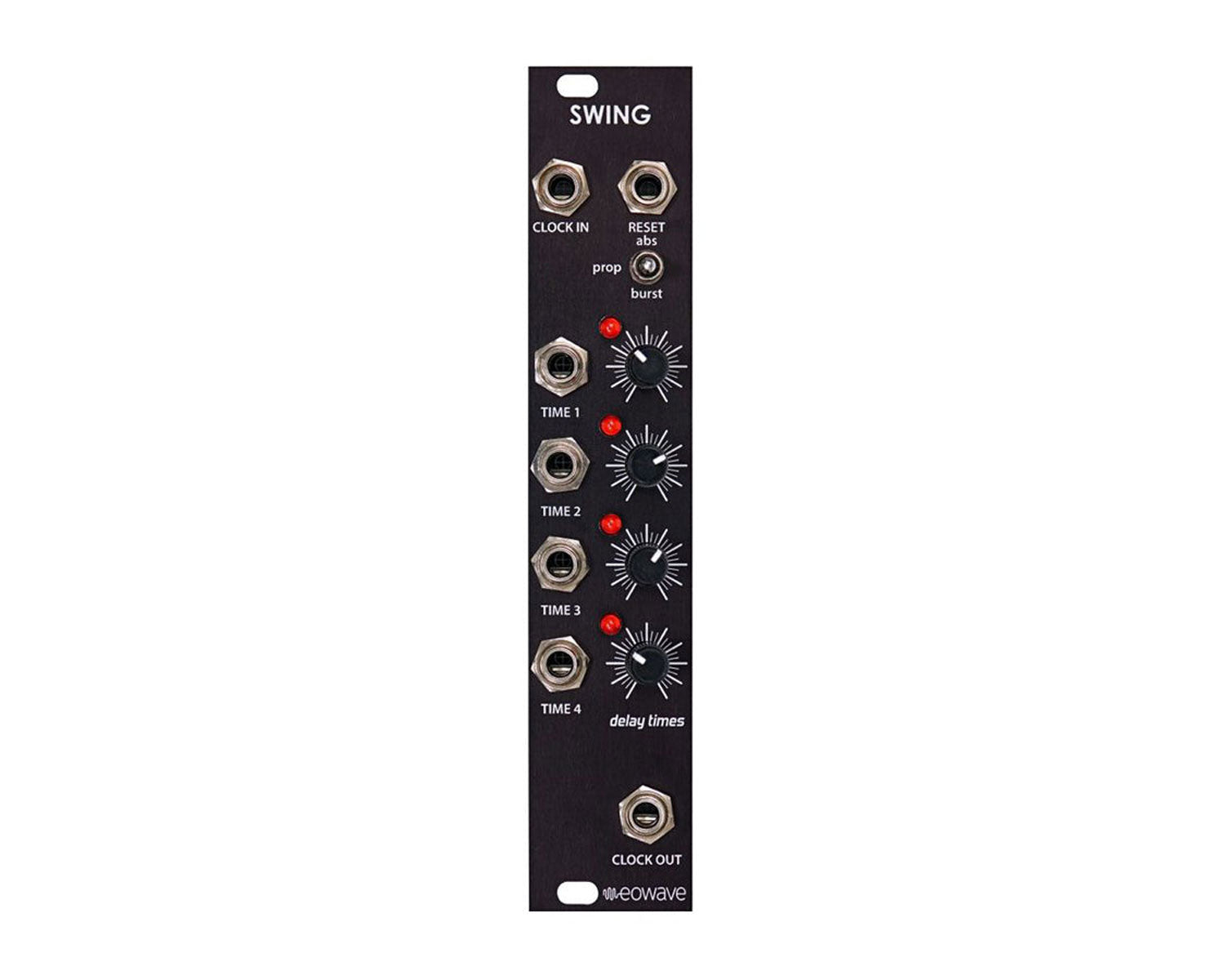

Eowave Swing

The Eowave Swing is a delay stage for clock signals. Incoming triggers are fed alternately to four outputs with individually adjustable delay times.
Trigger signals received at the clock input are sequentially routed to four outputs. Each featuring a potentiometer for choosing a delay time. – The swing factor, so to speak. There are three modes of operation: Absolute, probability and burst. The module can be reset via an input of the same name, i.e. it starts again with the first clock output.

IN:

• Clock input
• Reset input
• Four delay cv

OUT:

• Delayed clock

Video: https://youtu.be/tcESWUq6_J0

Product Specs

• Item Number: 28705
• Make: Eowave
• Model: Swing
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Clock Modulator Delay Quad
• Made In: France
• MPN: eoS
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 5 HP 25 mm deep
• Power*: 34 mA +12V 0 mA -12V 0 mA 5V

* User contributed details
