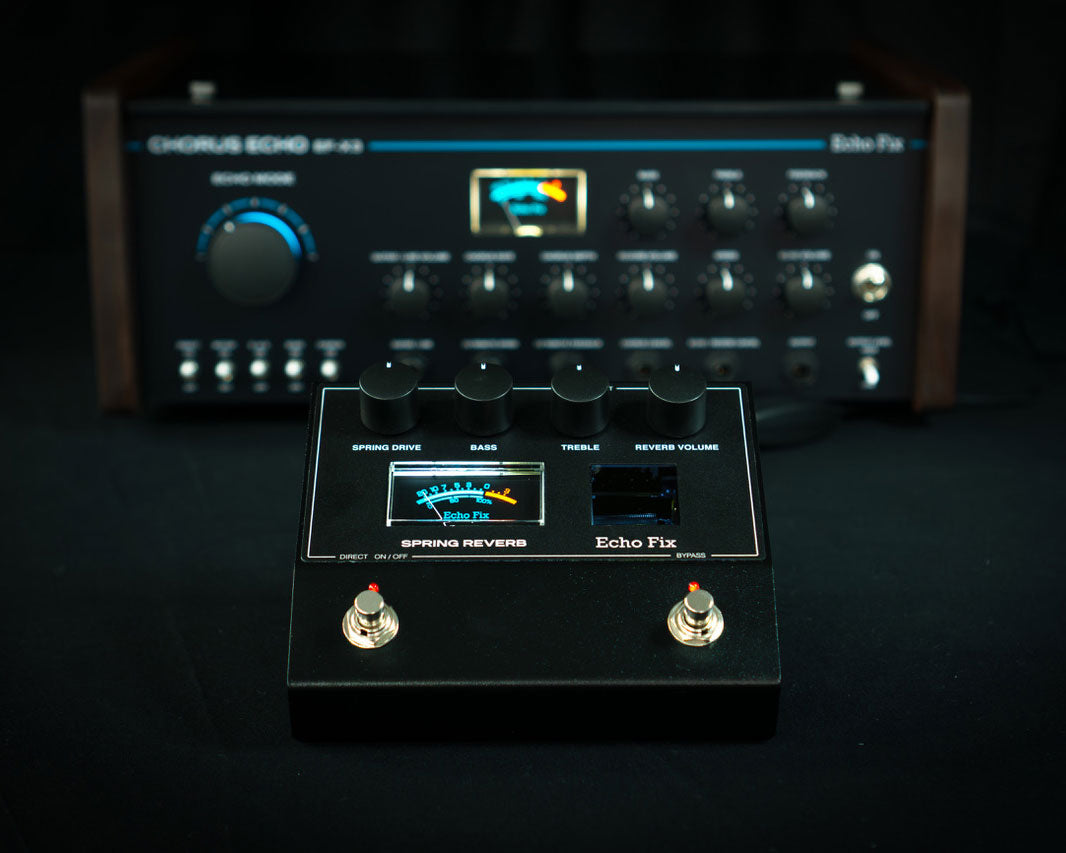

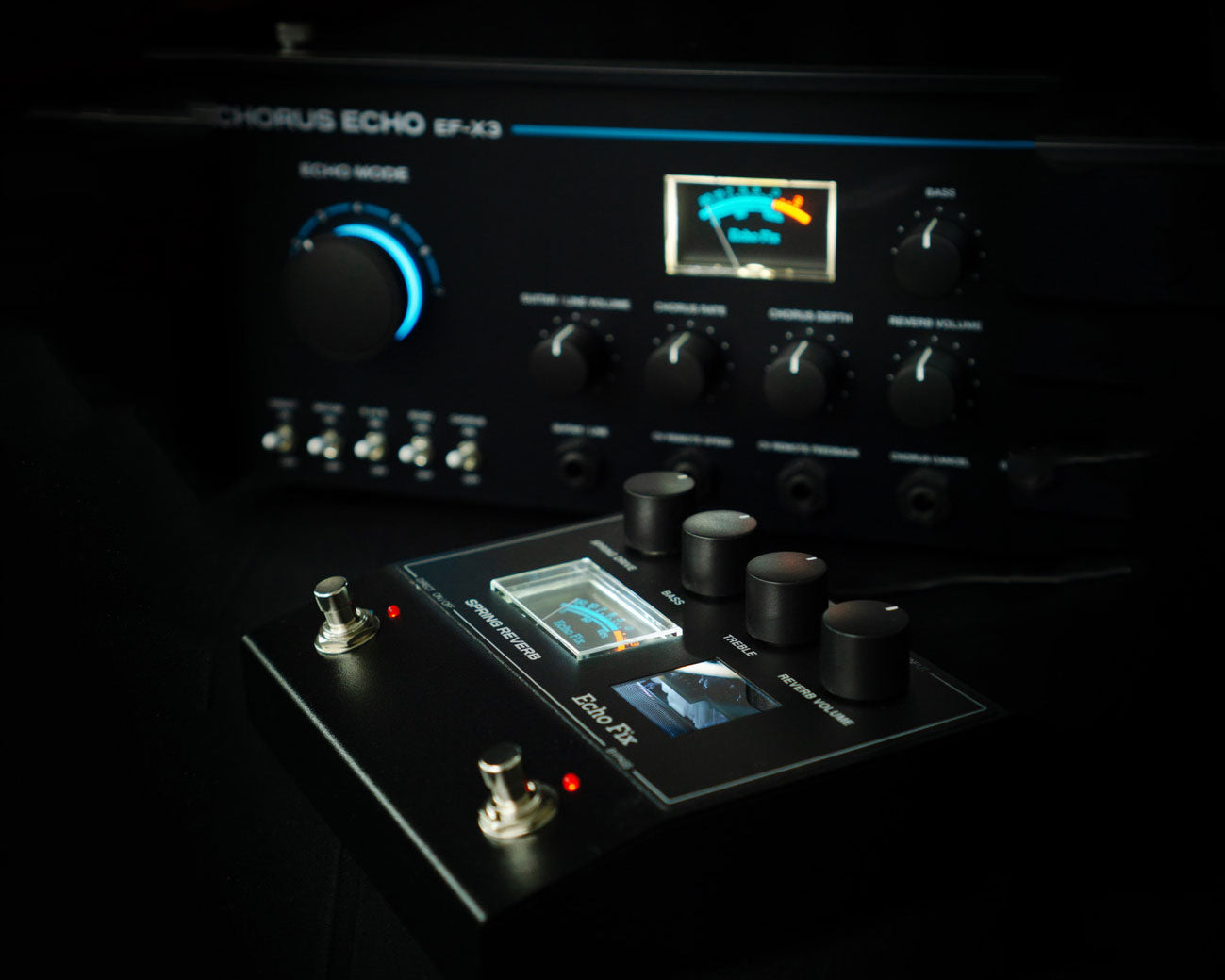

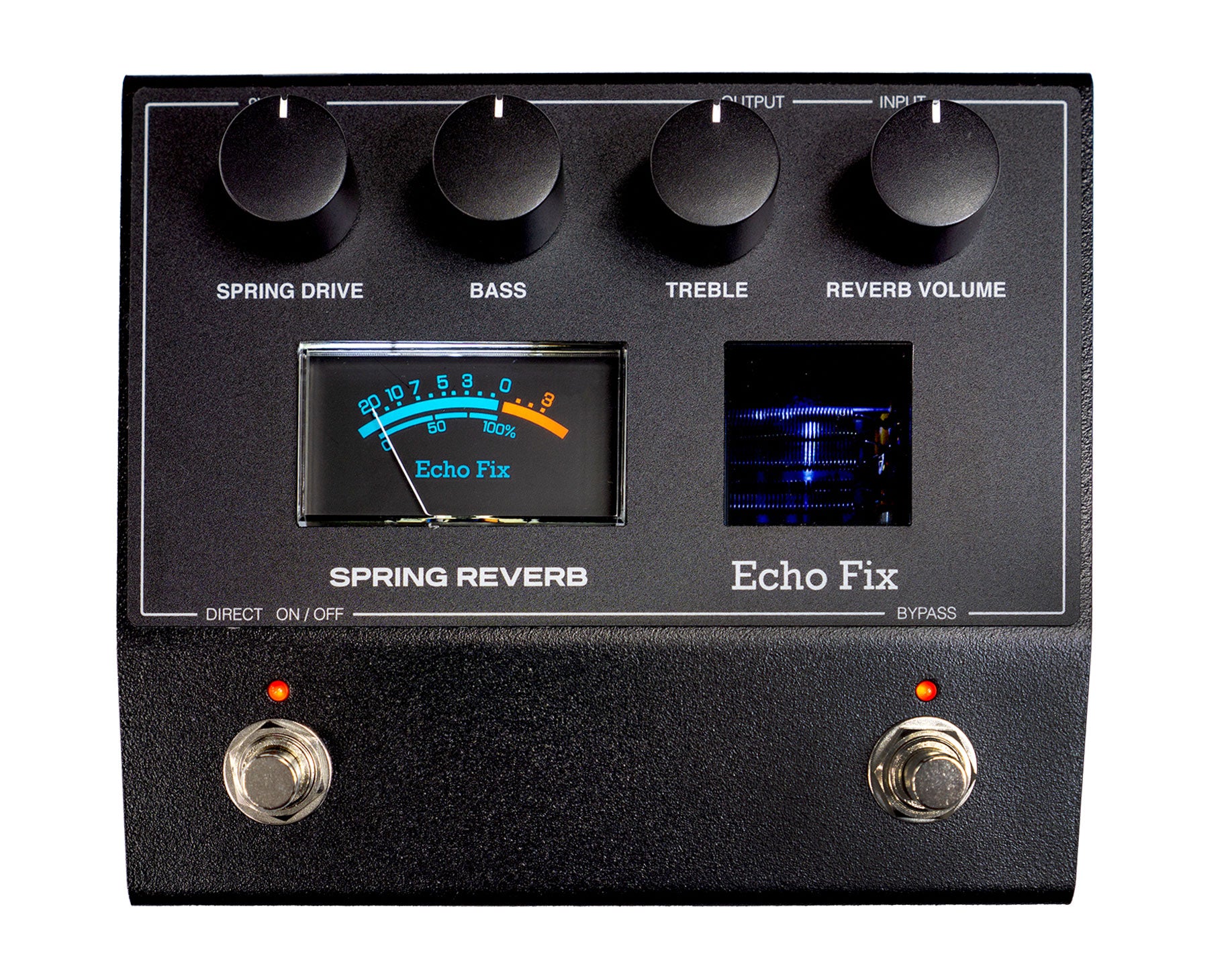

The Echo Fix EF-P2 is a real Spring Reverb pedal that fits a huge sound into a small enclosure. It features a three-spring reverb tank, adjustable Spring Drive, Bass / Treble EQ controls, and Reverb Volume control. With a footswitch for reverb bypass and also a direct signal mute footswitch, the EF-P2 can also be used as an outboard effect in recording studios. With increased internal voltage rails for studio use, the EF-P2 can accept line level inputs from synths and other audio devices, not just guitar.
Features:
- Real spring reverb pan
- 100% Analogue Signal Path
- Spring drive control
- Bass control
- Treble control
- Reverb Level Control
- Soft momentary switching for noiseless Bypass and Direct Mute switching
- Increased internal power supply voltage rails for increased dynamic range
- Illuminated reverb tank viewing window
Specs:
- Power - 9VDC Centre Negative
 * Current - 200mA minimum
 * Input Impedance - 1MΩ
 * Output Impedance - 1KΩ
 * Dimensions - 160mm x 130mm x 60mm (6.29" x 5.11" x 2.36")
Video: https://youtu.be/DT2-YqteHRE
Product Specs
- Item Number: 28194
- Make: Echo Fix
- Model: EF-P2
- Condition: Brand New
- Finish: Black
- Categories: effects-and-pedals ⇒ reverb ⇒ pedal
- Made In: Australia
- MPN: EF-P2
