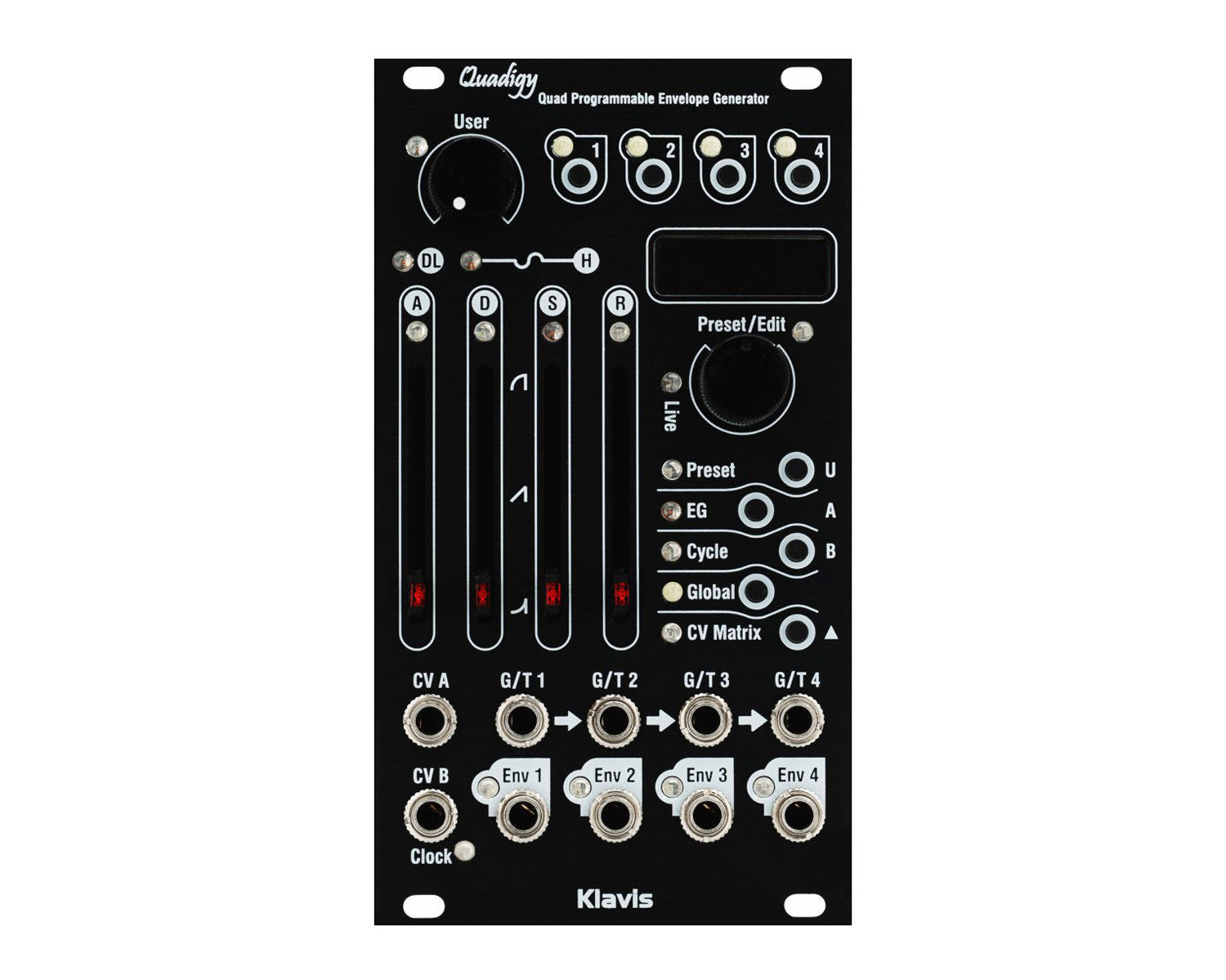

The Quadigy is a complex envelope generator focused on live play. The goal is to allow you to set up rich, interactive and dynamically evolving envelopes without the risk of breaking up a subtle and intricate patch once on stage. This is done by offering two main modes, one where full control is available and a Live mode where only the settings that are sensible using on stage are accessible.
Features:
- Quad 7-stage envelopes:
- Pre-delay
- Hold
- Attack
- Punch
- Decay
- Sustain
-
Release
-
Continuous curve shape setting
- Inversion
- Independent output level
- Cycle capability with auto fit-to-clock
- Elastic time stretching
- 5 internal clocks with tap tempo
- External clock control
- Multiply/divide and offset
- Individual cycle ext. control
- 32 presets with naming
- External preset control via CV/Trig
- Simultaneous 156-point CV matrix
- Morphing on presets and CV Matrix
- Multi-editing for polyphonic uses
- Live mode for easier/safer control
- Graphical display
- Real-time envelope stages LED indication
- Settings restored after power cycle
- Easy firmware update via an audio file
- Skiff-friendly and compact module
Video: https://youtu.be/lvMbFATGvc0
Product Specs
- Item Number: 28079
- Make: Klavis
- Model: Quadigy - Black
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Clock Generator Envelope Generator LFO
- Made In: Belgium
- MPN: QG-MBK
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 14 HP 21 mm deep
- Power*: 24 mA +12V 10 mA -12V 40 mA 5V
