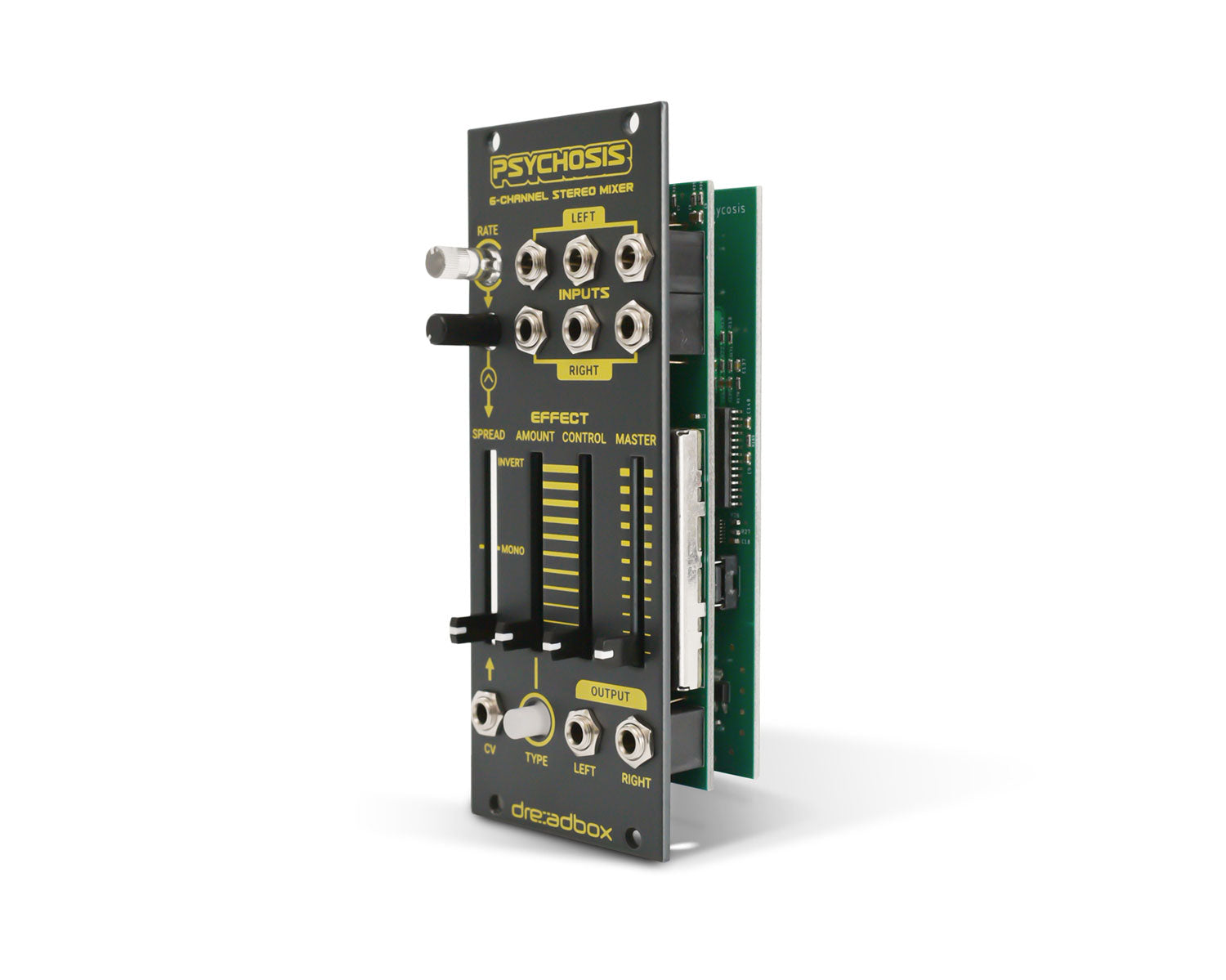

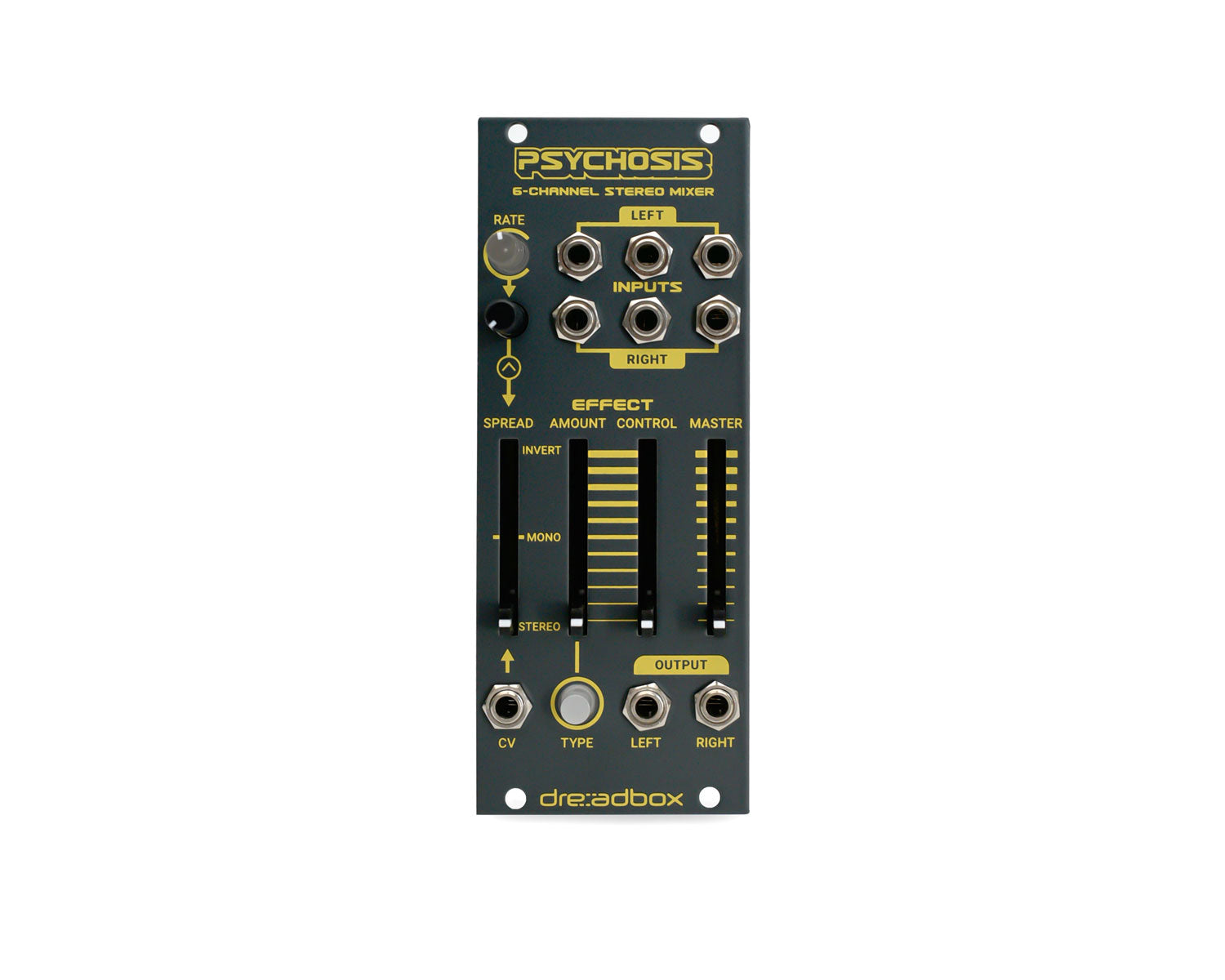

Dreadbox Psychosis Mixer Module

The Dreadbox Psychosis is a compact 10HP Eurorack module that packs numerous features, functioning as a 6 to 1 analogue true stereo mixer. This versatile module enhances your setup with its broad panning capabilities, LFO, and four distinct true stereo effects.

Equipped with six stereo input channels and a single stereo output channel, the Dreadbox Psychosis module offers individual knob controls for panning on each channel. These controls facilitate smooth transitions between stereo, mono, and inverse stereo modes. Additionally, the panning can be modulated either through CV or the module's built-in LFO, which allows for creative effects like auto-panning or Leslie-style sounds.

SPECIFICATIONS

• 6 to 1 Analogue True Stereo Mixer for modular level signals
• Single knob panning from Stereo to Mono to Inverse Stereo with CV control 1 x LFO for auto-panning and Leslie effect
• 4 x true stereo effects to choose from including Reverb, Delay, and both a soft & hard Chorus
• 80mA @ +12V / 35mA @ -12V
• 10HP

Product Specs

• Item Number: 27683
• Make: Dreadbox
• Model: Psychosis
• Condition: Brand New
• Finish: Grey
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Mixer Panning Utility Effect
• Made In: Greece
• MPN: DB-PSY
• EAN: 5214001791088
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 10 HP 29 mm deep
• Power*: 80 mA +12V 35 mA -12V 0 mA 5V

* User contributed details
