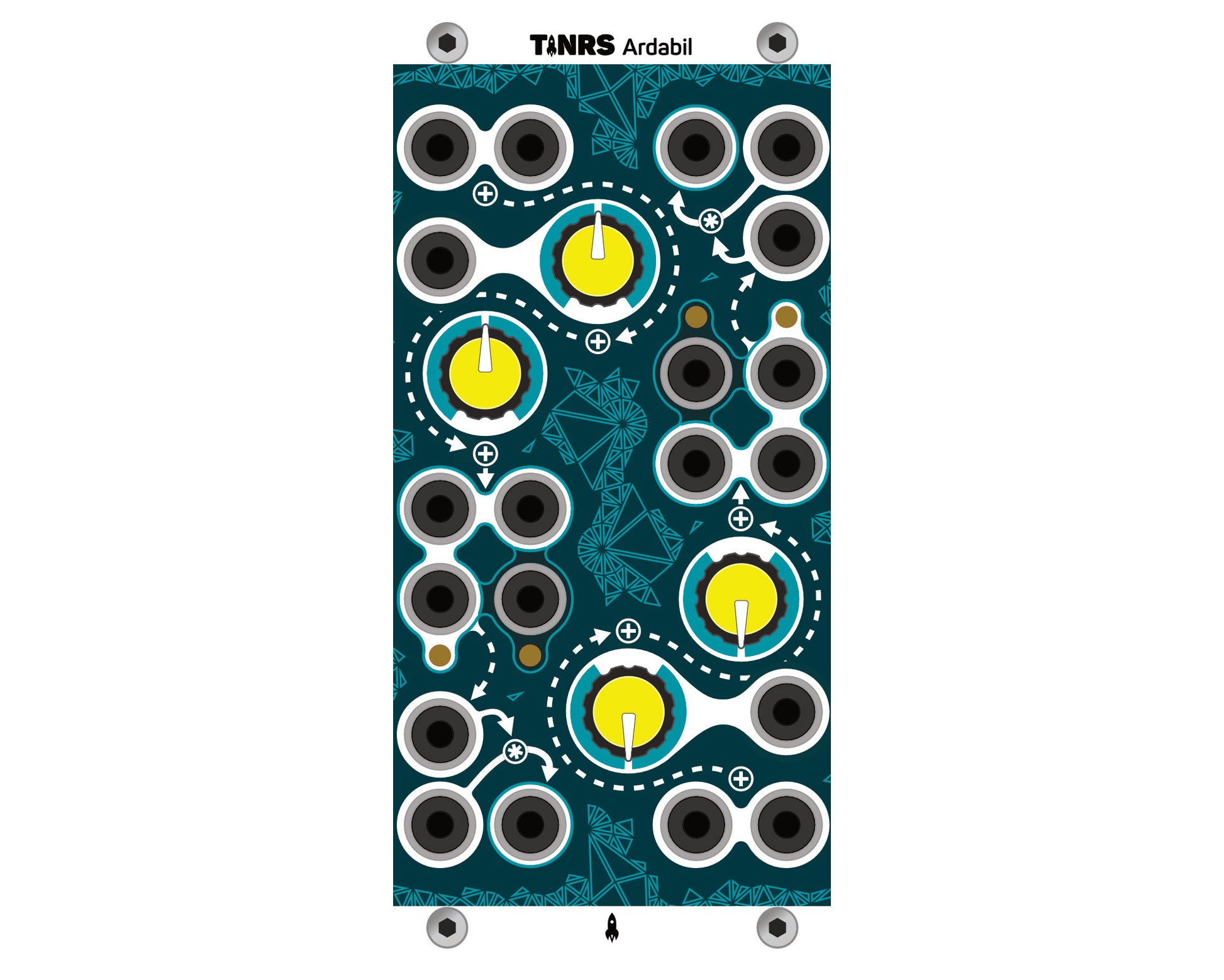

This Is Not Rocket Science Ardabil

As it's simplest conception, the Ardabil is a utility module aimed at some of the more useful connections TiNRS could think of. This module would be good if you're just starting to expand your system and want some extra options.

Features

• Your thread starts with two CV inputs that add together without changing their scaling.
• Plug in any CV and let the knob scale your CV up or down -1 to +1 before it is added to your thread.
• The offset knob can add a fixed -5V to +5V to your woven signal.
• Threads into three buffered outputs; one has an LED that lights up when there is a positive signal.
• The fourth jack is an inverted output with a LED that lights up when there is a positive signal (which is a negative signal in the other three outputs).
• The CV input controls the volume of the audio input into the output. The CV input defaults to the signal from a buffered output.
• Adder + Attenuverter + Offset into Buffered Outputs.
• Buffered Output * -1 into Inverted Output CV (default is Buffered Output).
• Audio into VCA Output.

Video: https://youtu.be/WXqxJ0EPIi8

Product Specs

• Item Number: 27561
• Make: This Is Not Rocket Science
• Model: Ardabil
• Condition: Brand New
• Finish: Teal
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Attenuator Utility VCA CV Modulation Multiple
• Made In: Netherlands
• MPN: TiNRS-ARD
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 12 HP 20 mm deep
• Power*: 80 mA +12V 2 mA -12V 0 mA 5V

* User contributed details
