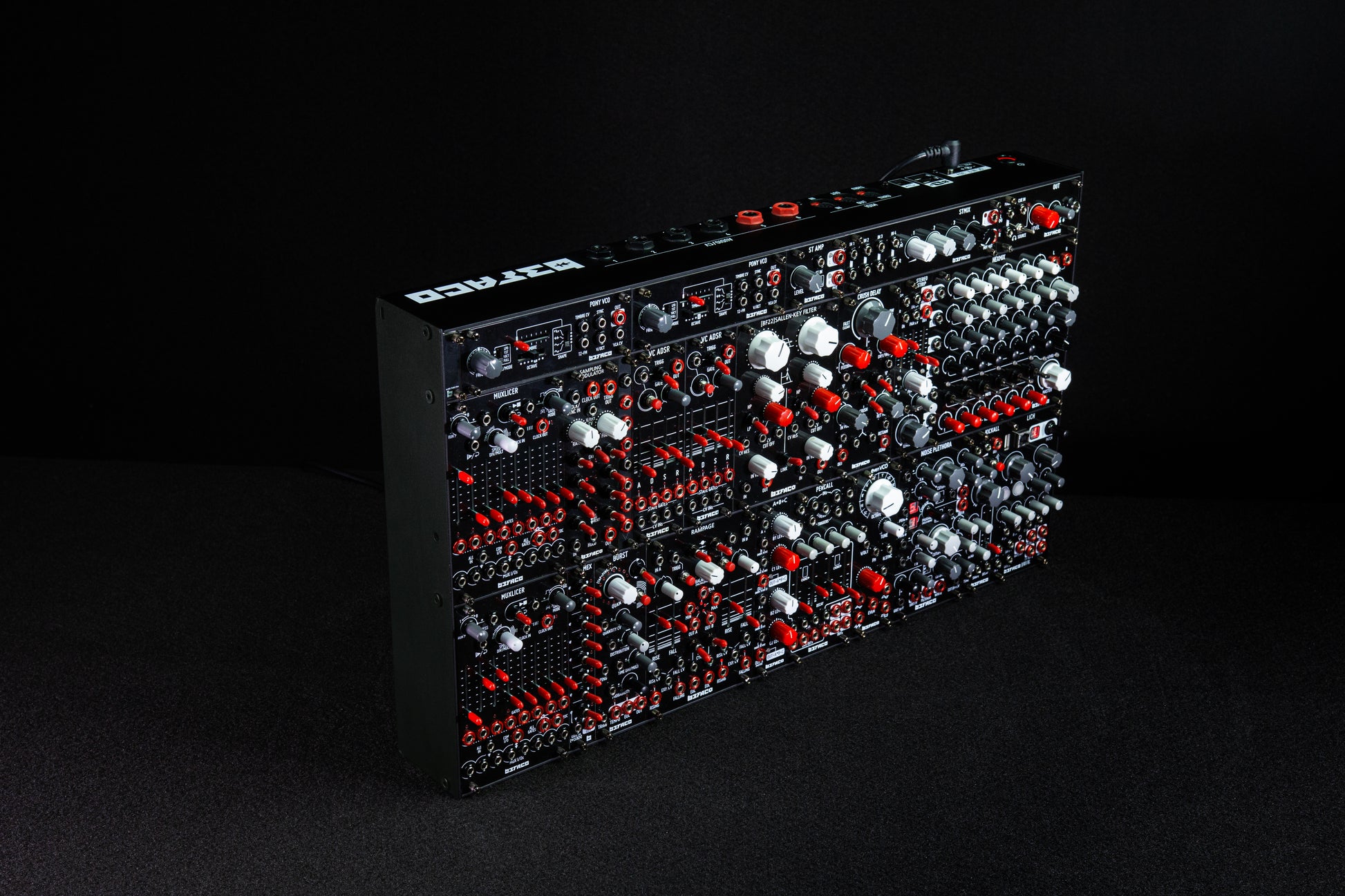

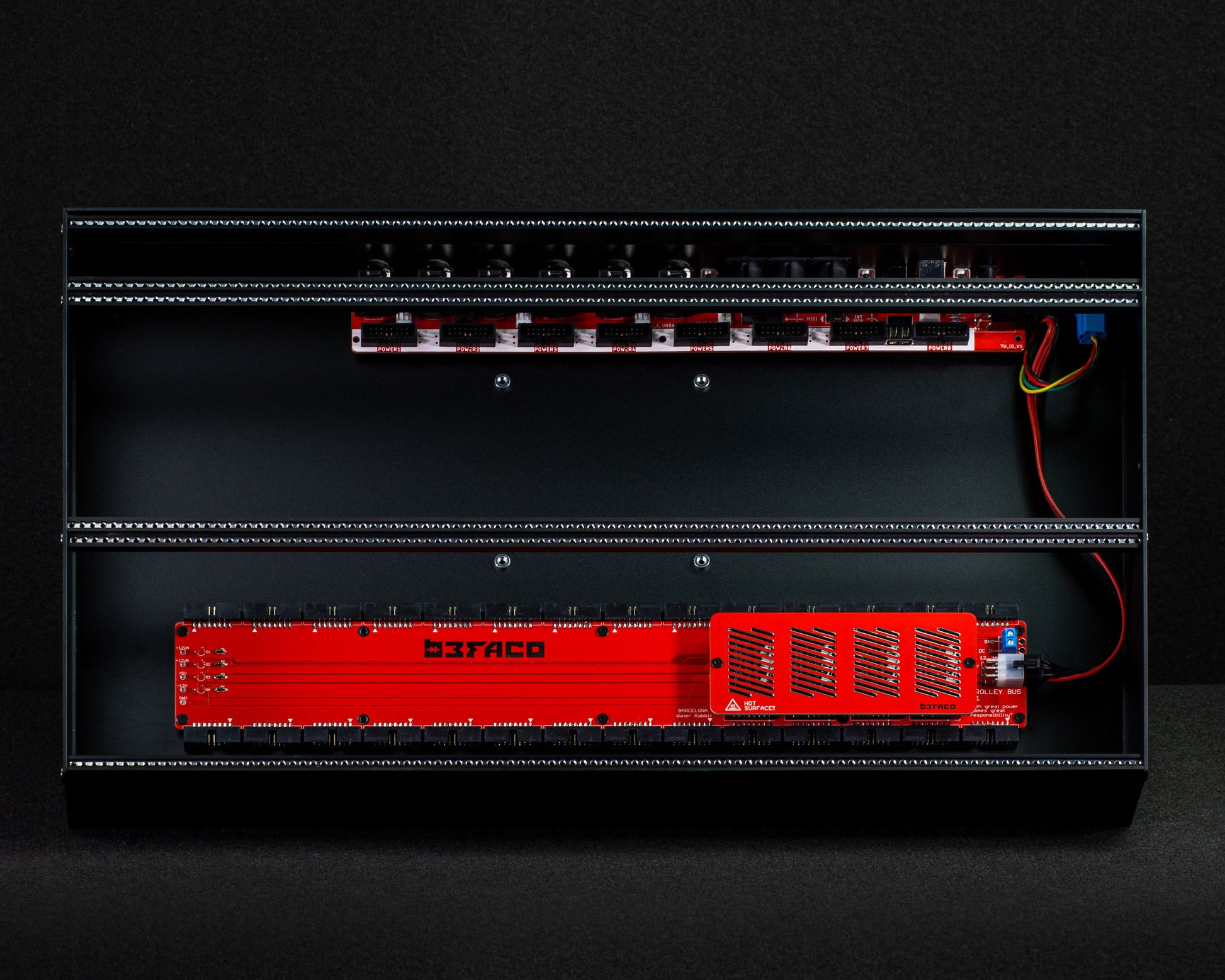

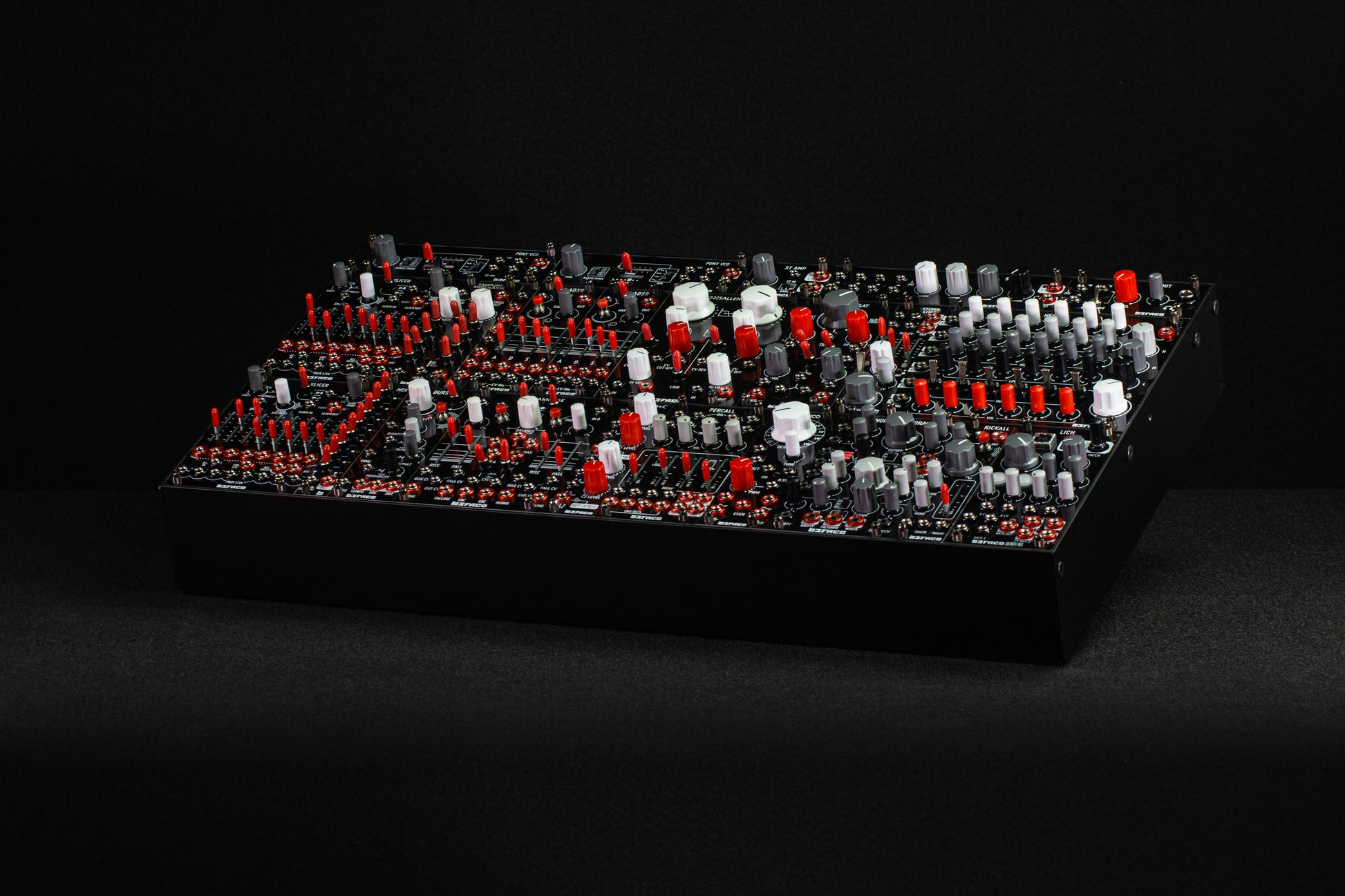

The Befaco 7U case is quipped with the latest and most sophisticated power supply (Trolley Bus), to supply up to 5000mA of power. Ready to feed the most power-hungry modules.
The 7U case is also equipped with a vast array of connections to pair your system with external devices. Each connector follows the Intellijel format, making them fully compatible with Intellijel’s 1U modules.

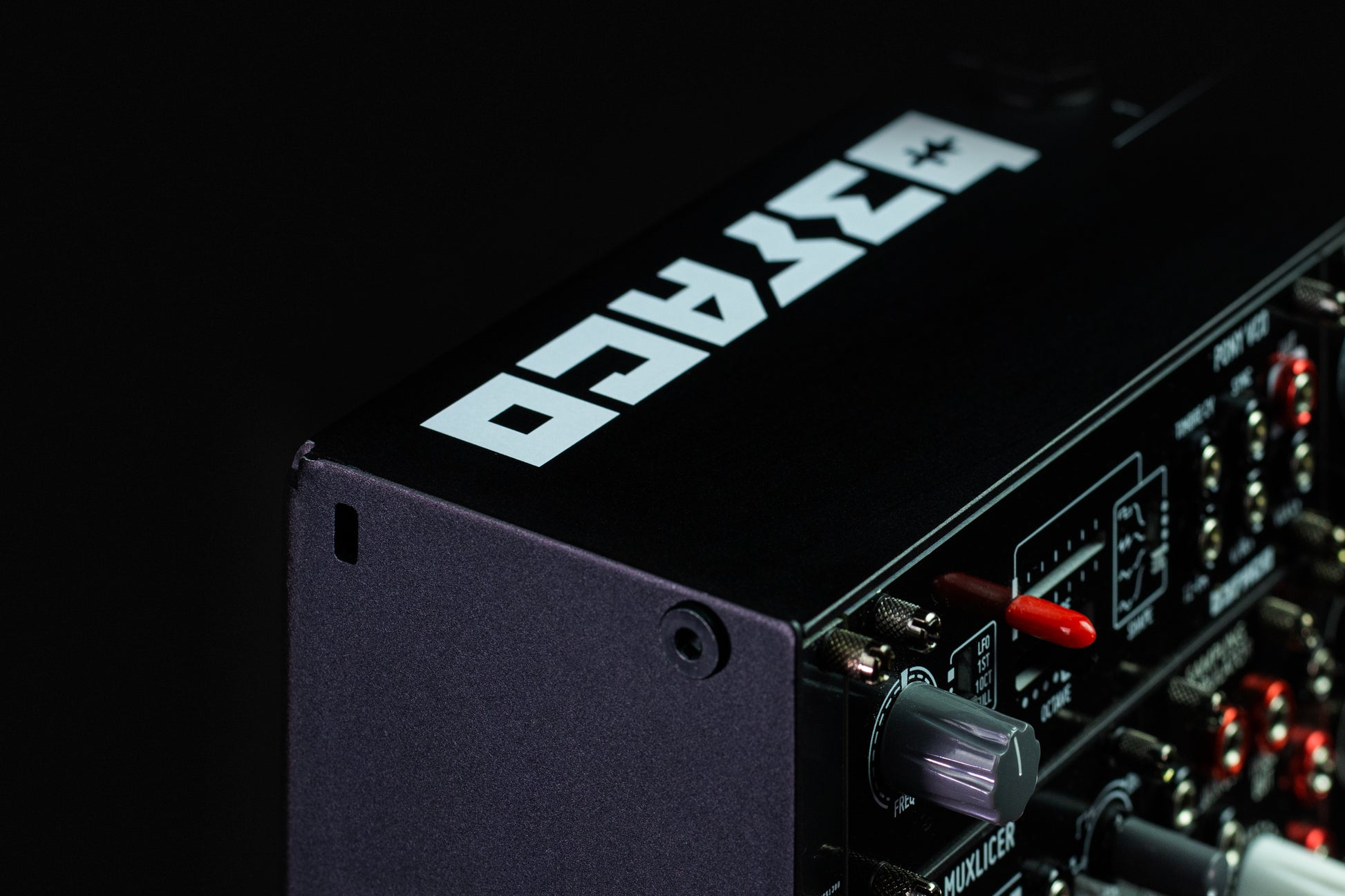

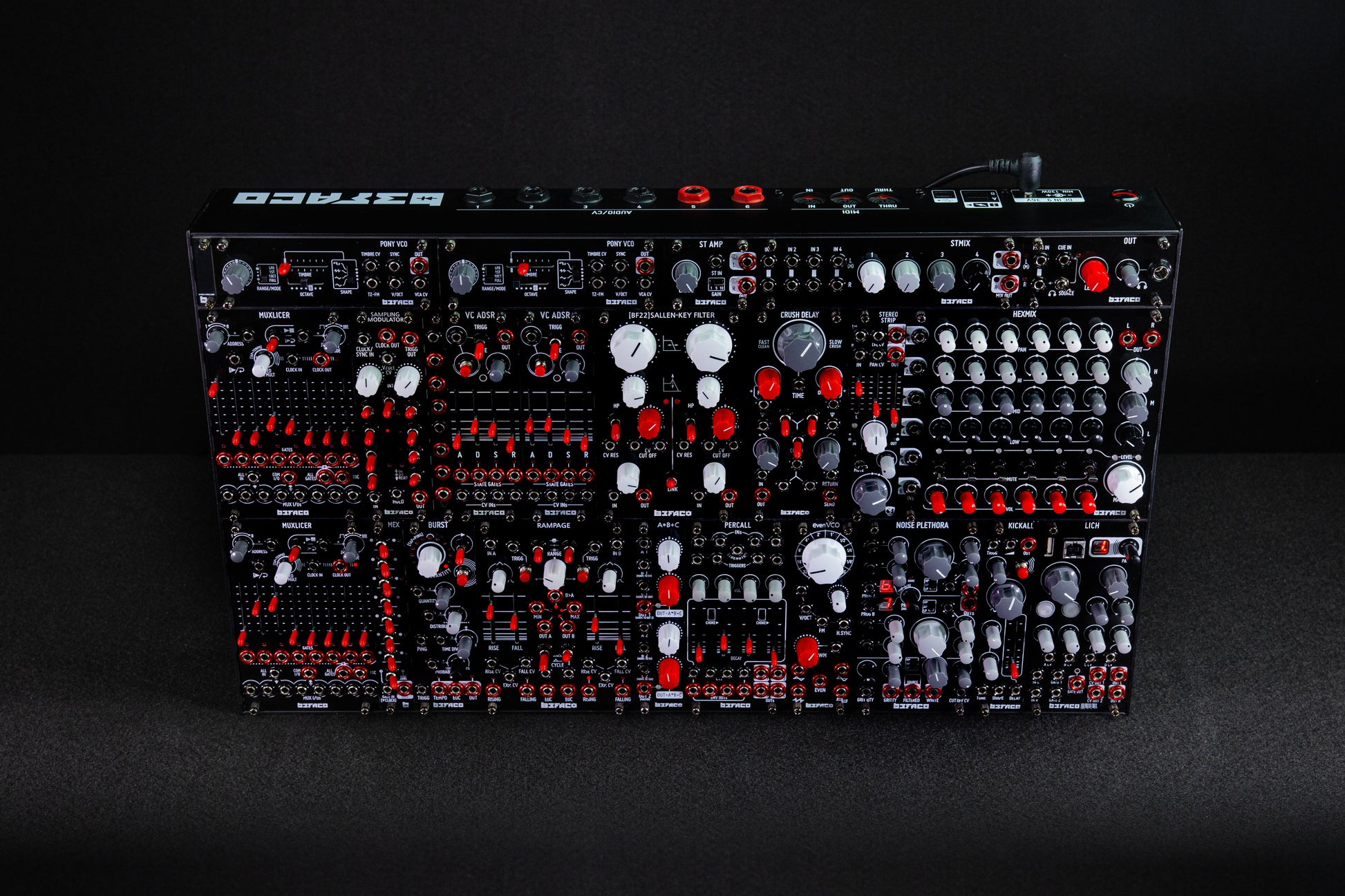

Designed with a high-quality Unibody Black Anodised Aluminium frame, the 7U Case is a slim and sturdy solution to travel with and the included PET-G clear cover keeps your modules safe even patched.
SPECS:
- External Dimensions (without cover): 53.5cms x 31cms x 8cms
- External Dimensions (with cover): 53.5cms x 31cms x 14cms

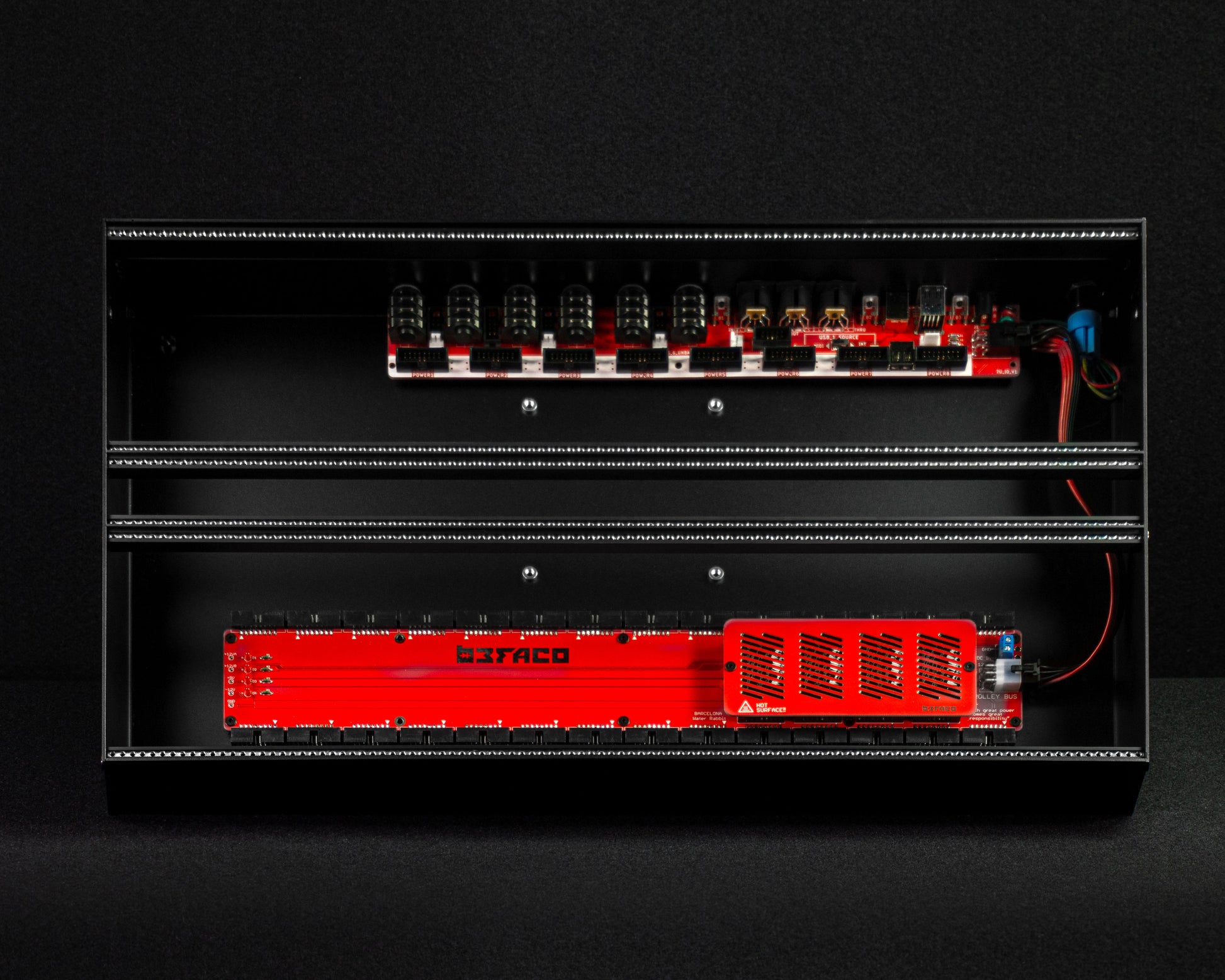

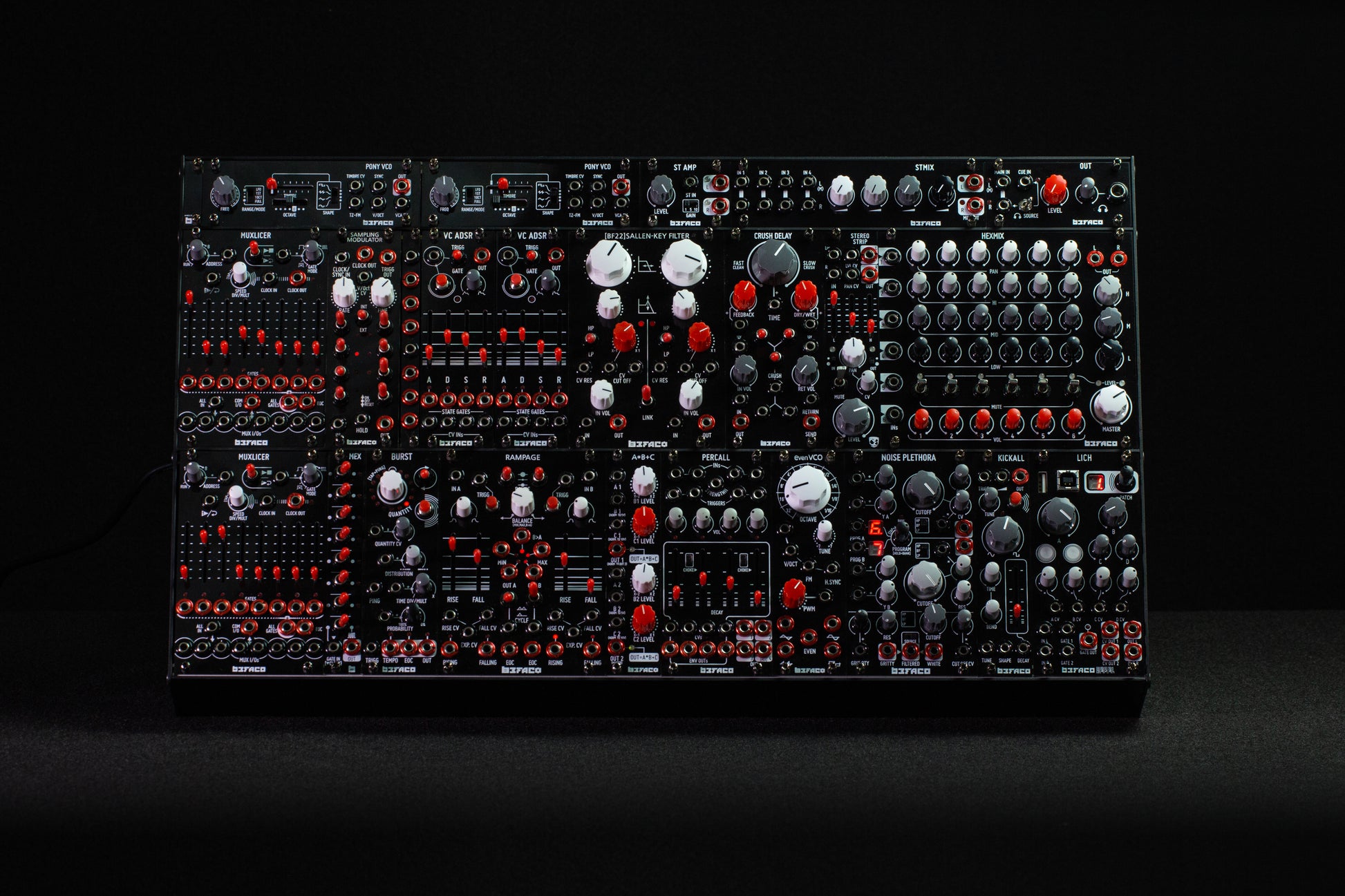

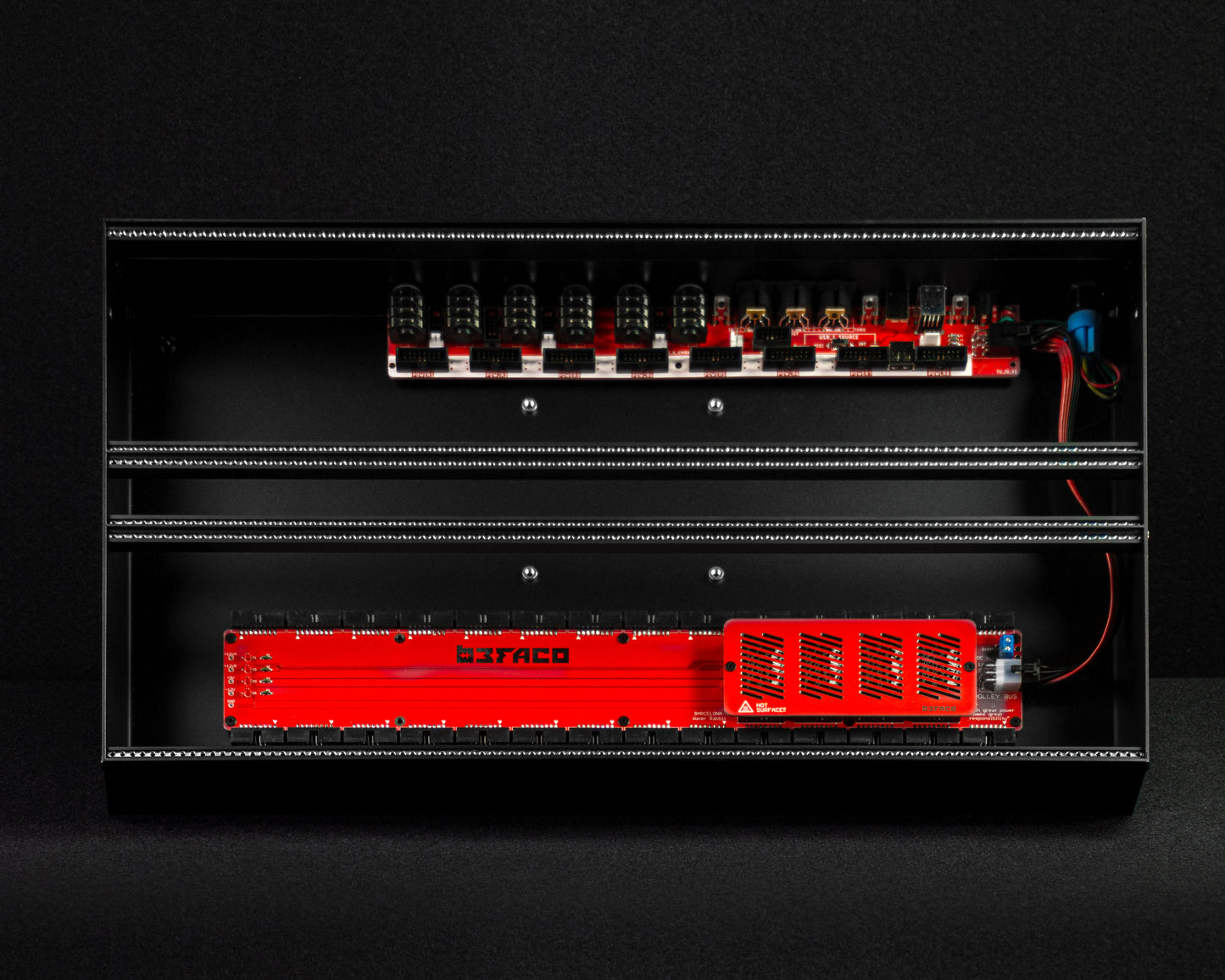

- Internal Row Dimensions: 2x 3U 104HP and 1x 1U 104HP (Intellijel format)
- Power supply Specifications: +12V: 5000mA, -12V: 2500mA, 5V: 4000mA
- Module Depth: 53mm (power supply side), 70mm (rest of the case)
- Module Slots: 36
- Weight (with cover): 3.4kg

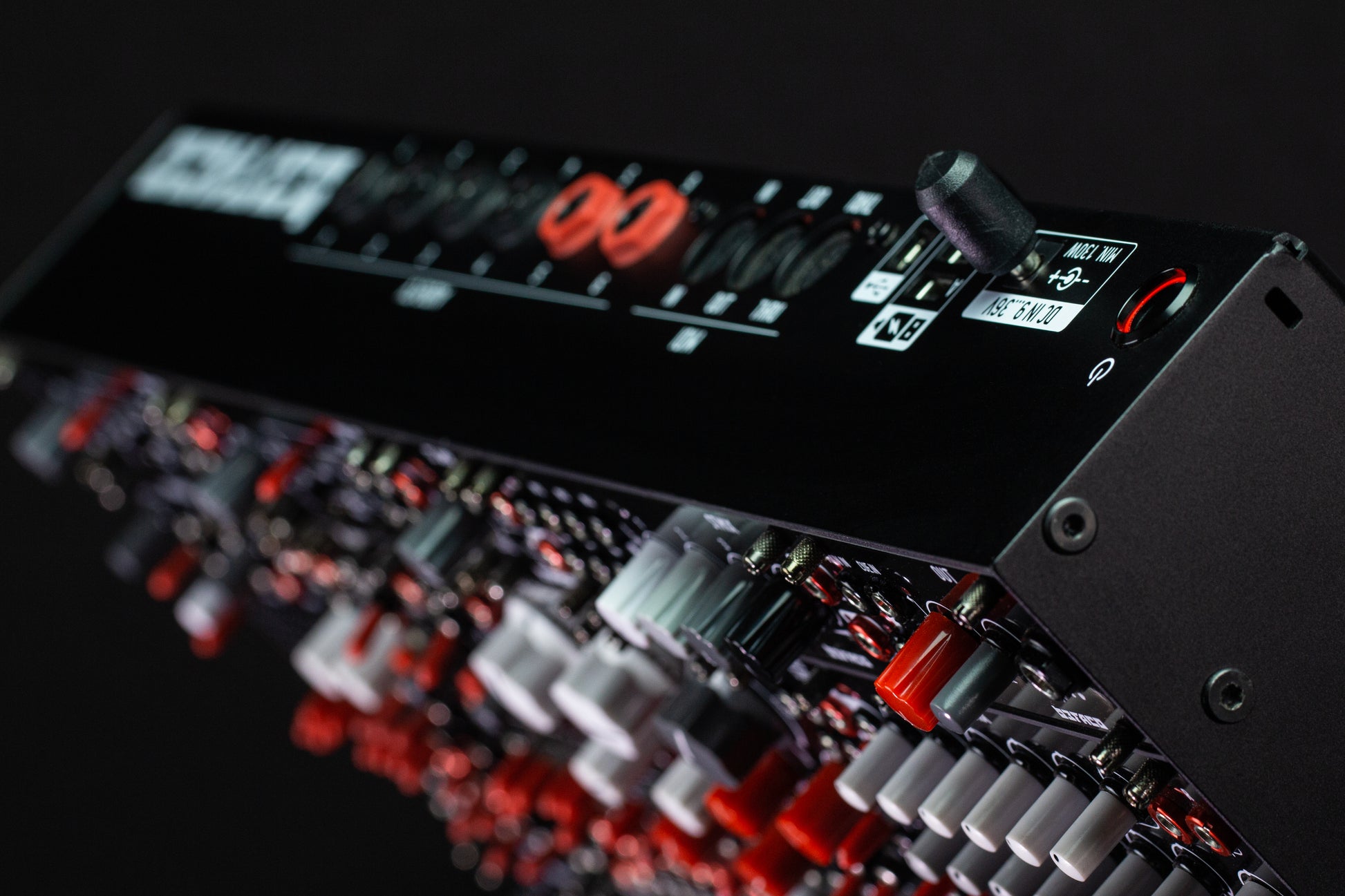

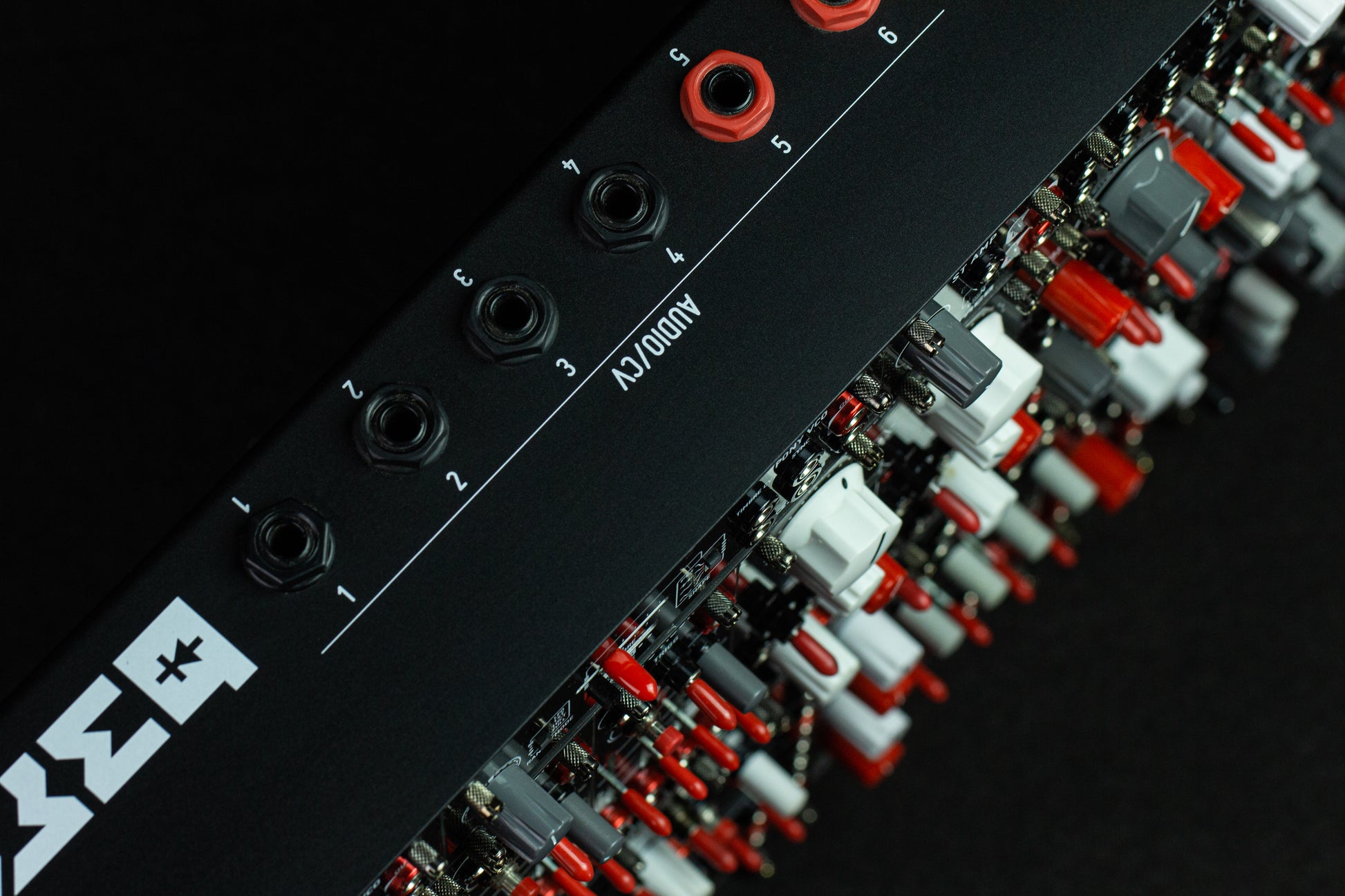

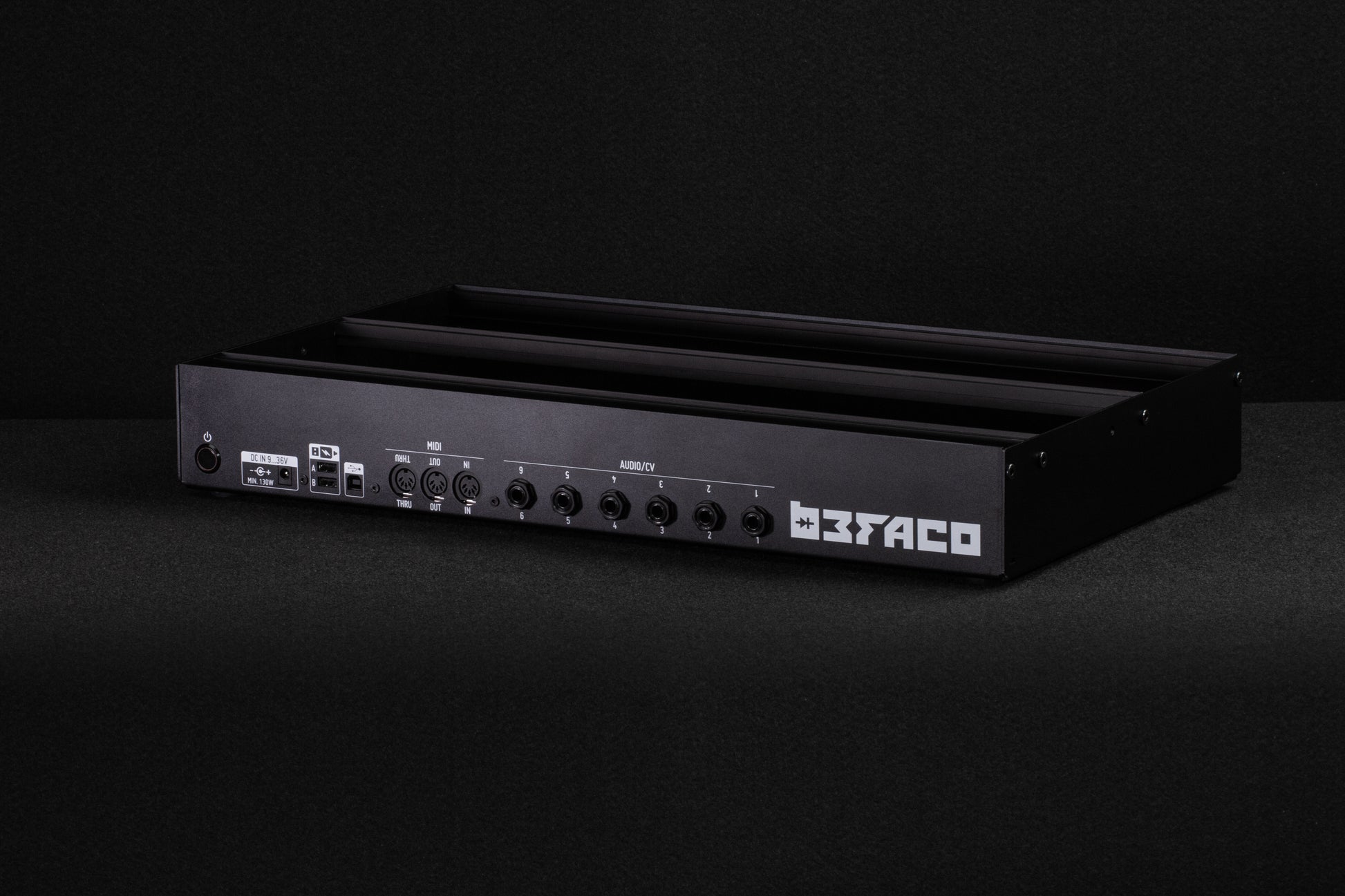

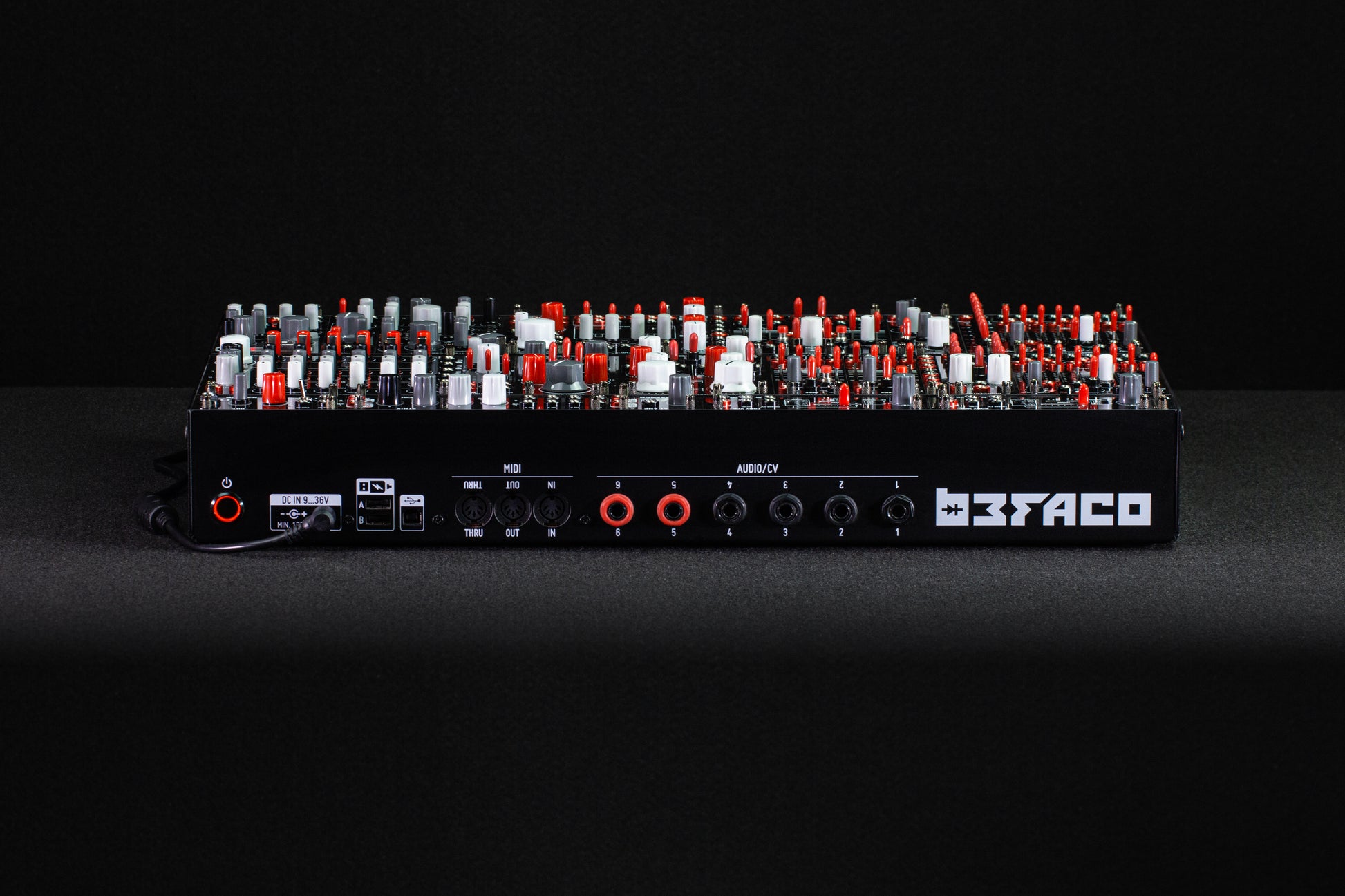

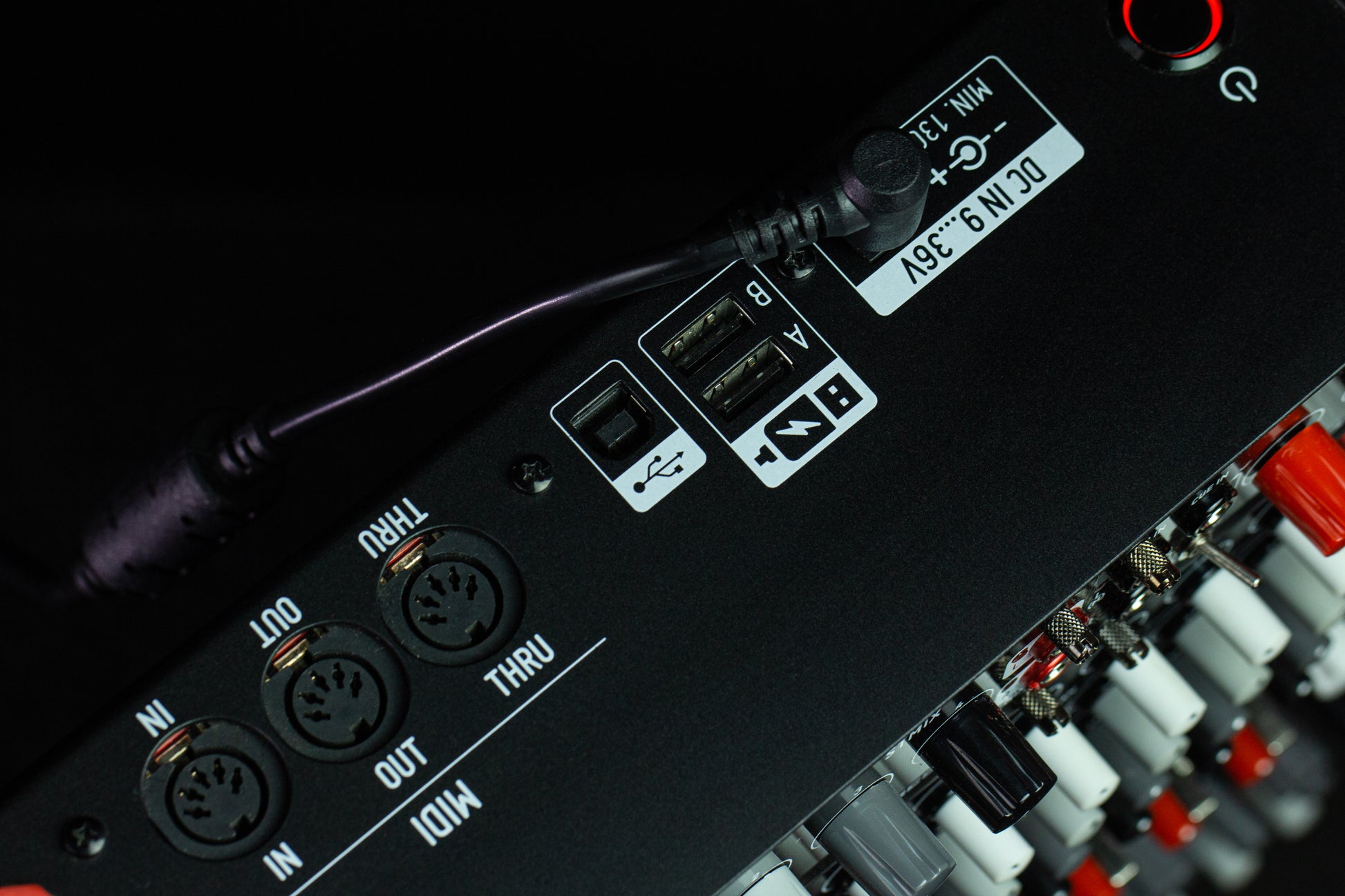

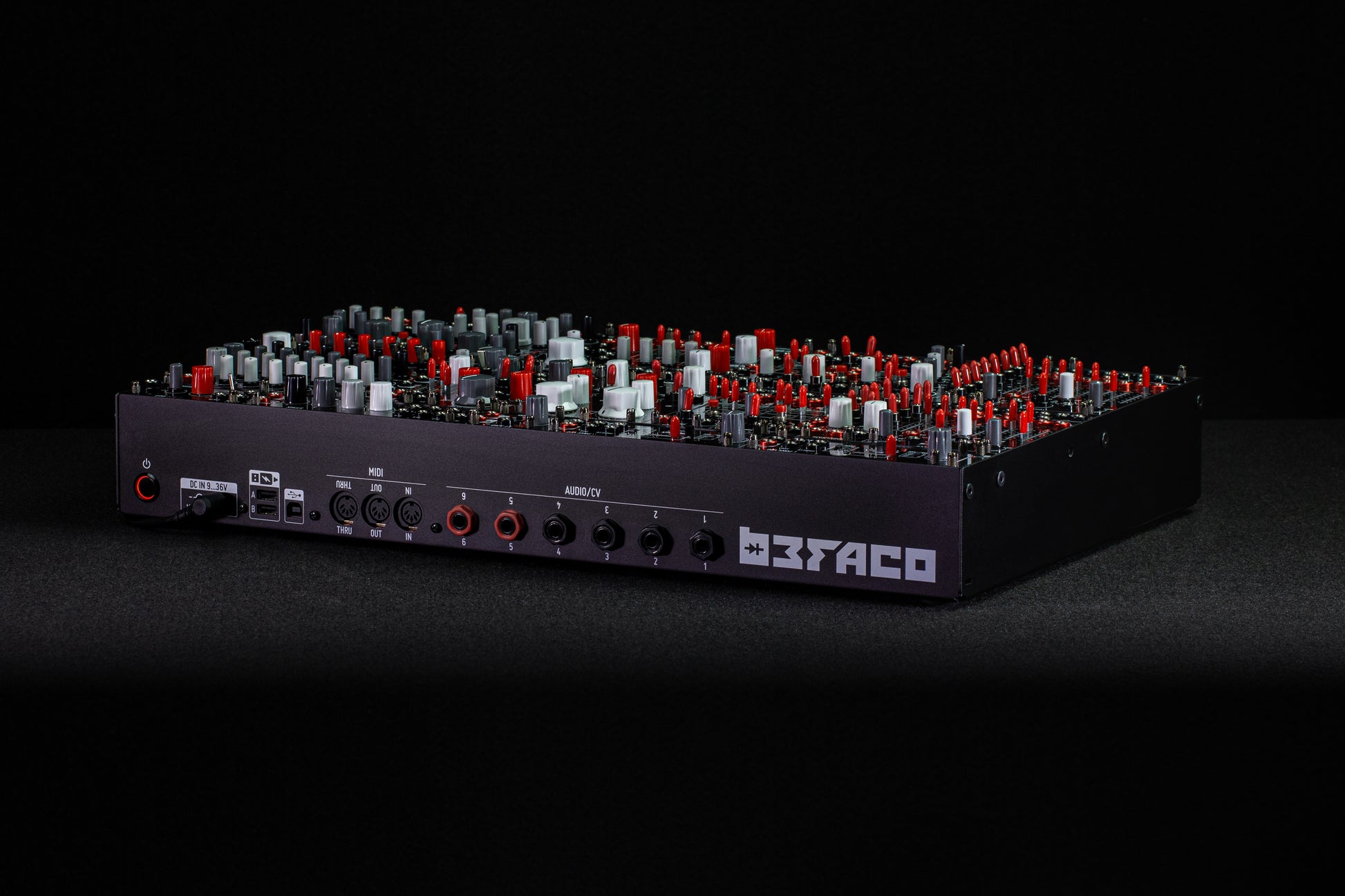

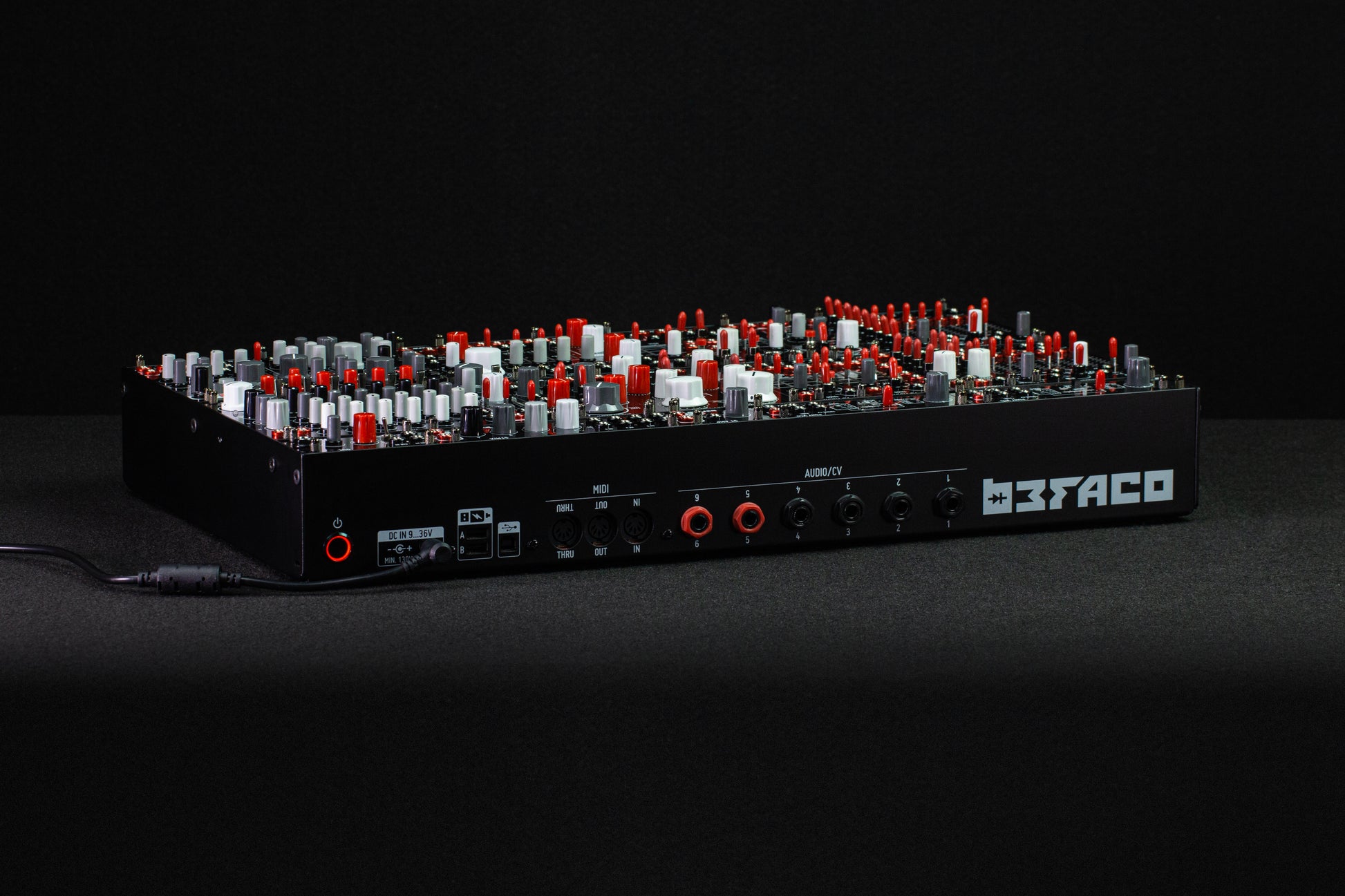

- Rear connectors: 6x 6’3″ Jack I/O (Balanced or Unbalanced), MIDI DIN In/Out/Thru, USB Device Type B, Apple compatible USB-A charging ports.
- Power brick: 120W 2.5mm Barrel connector center positive (included)

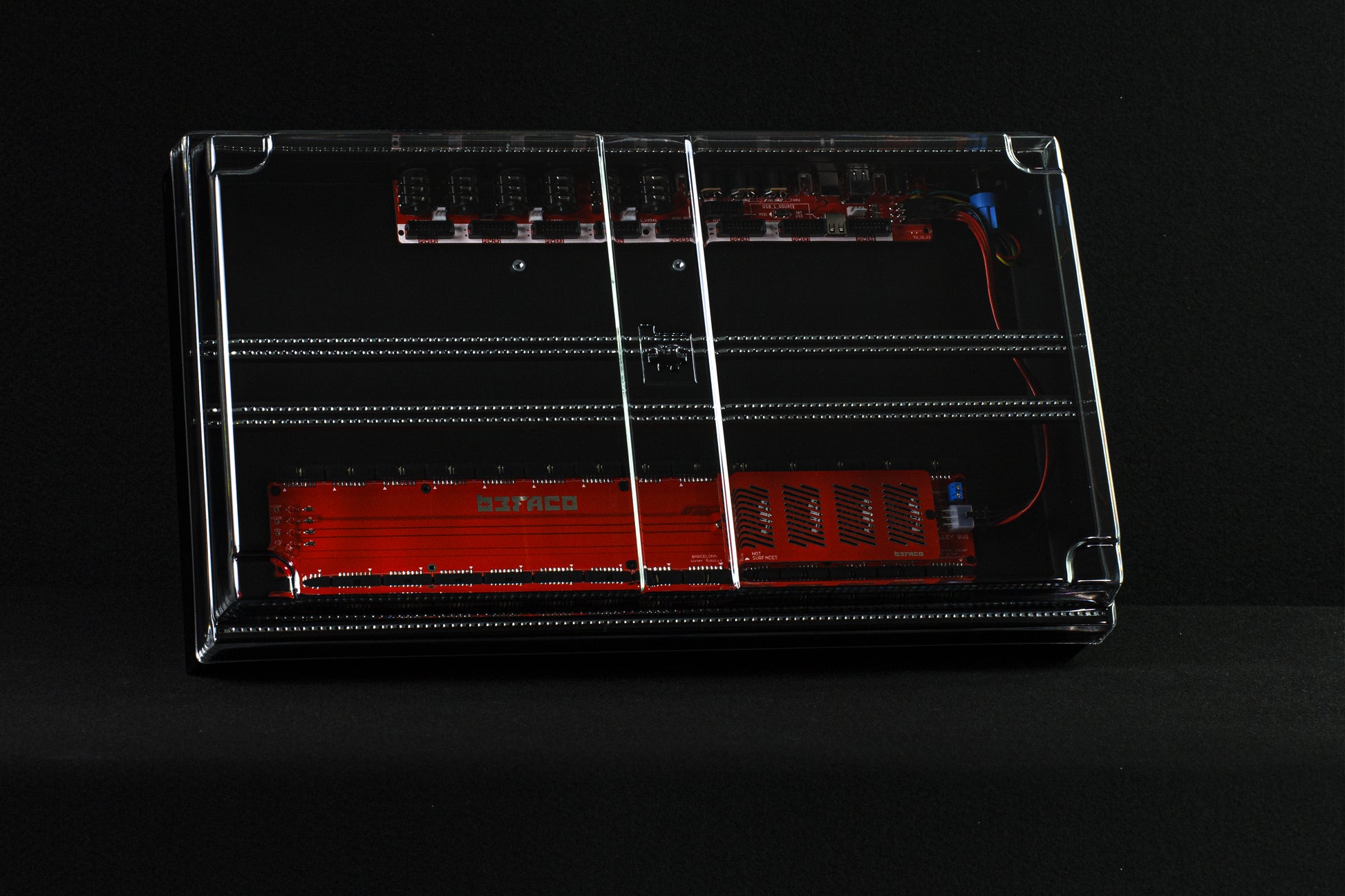

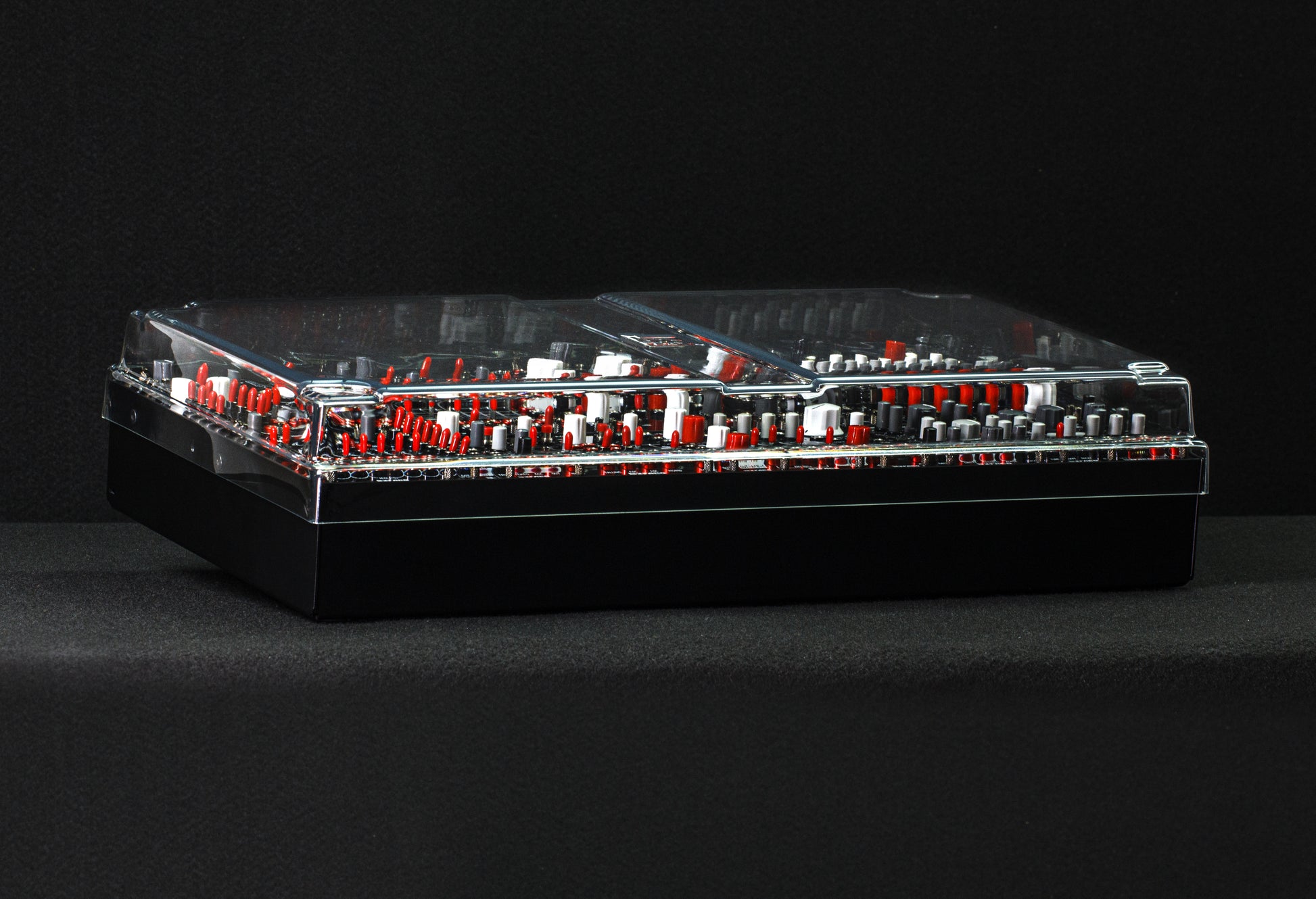

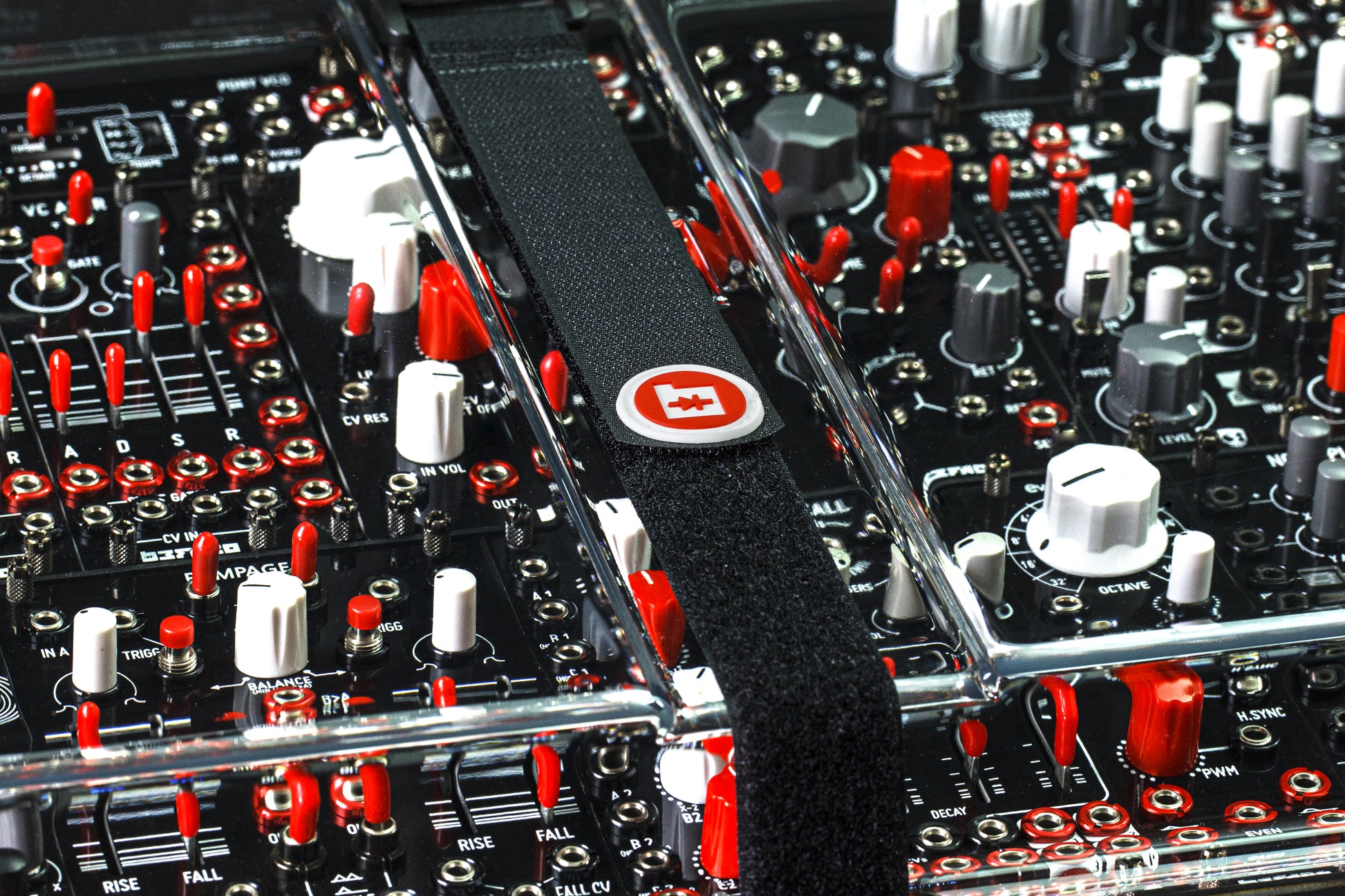

- Cover: PET-G Clear cover (included)
- Finish: Black Anodised Aluminium

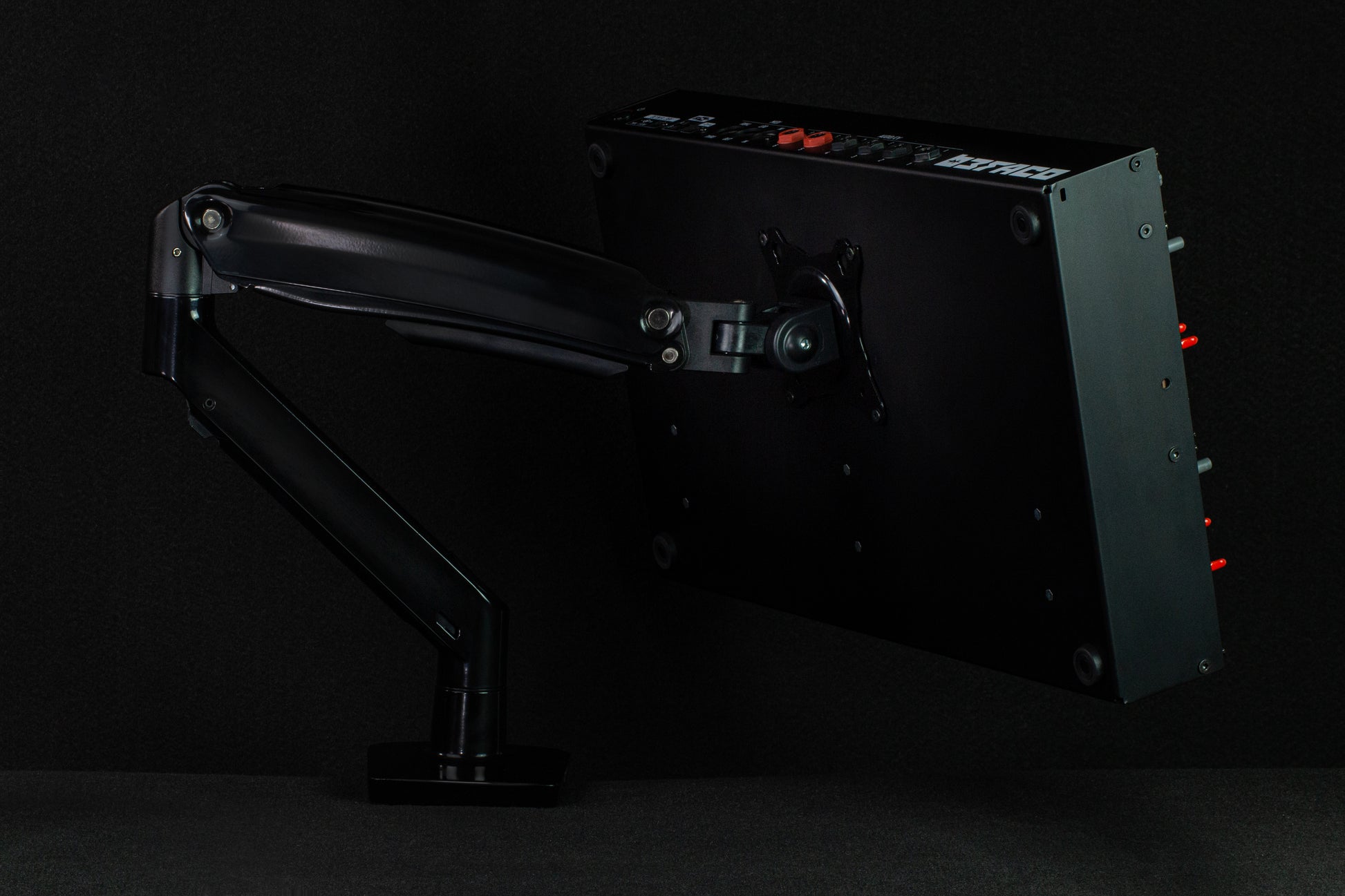

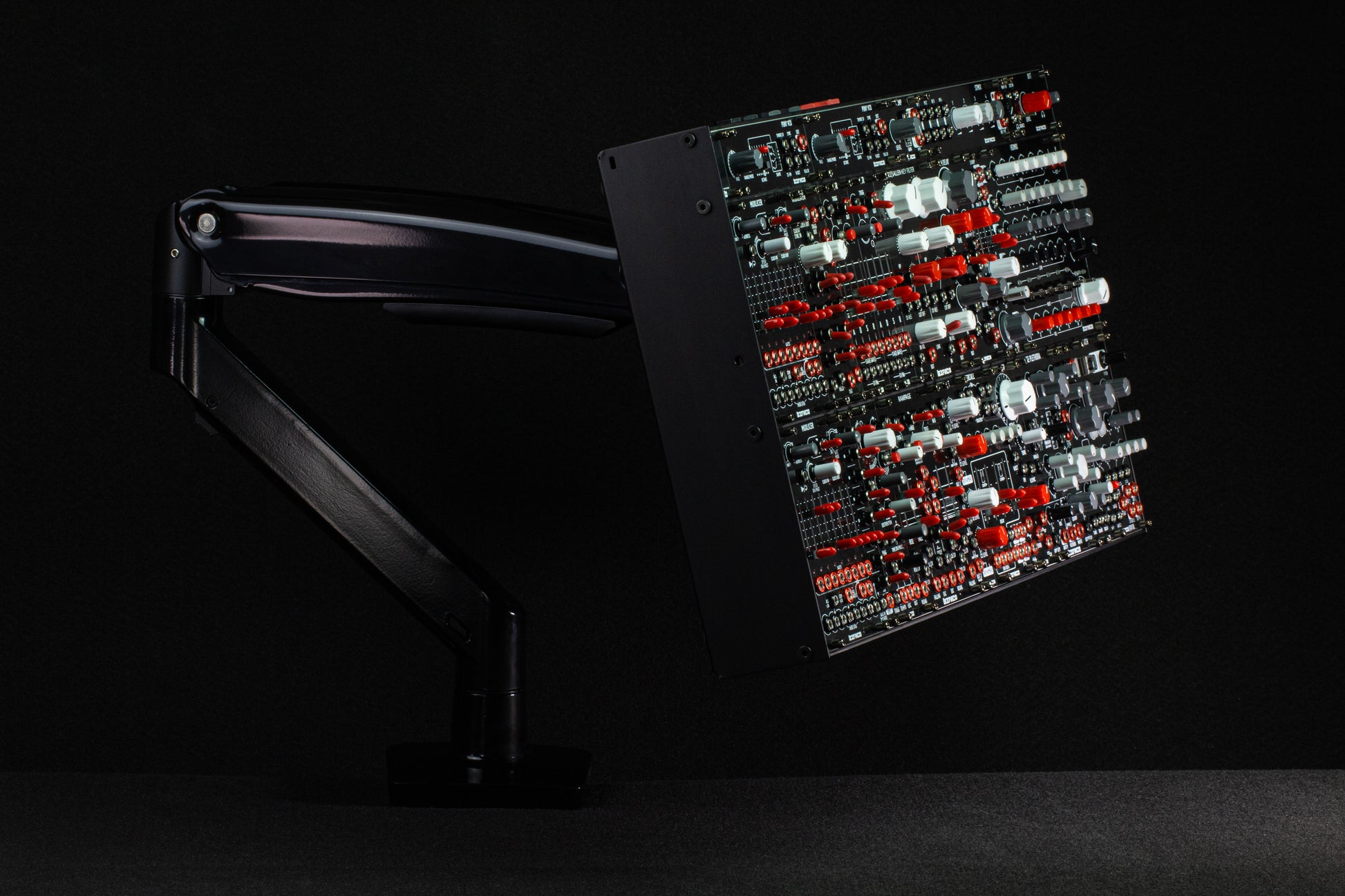

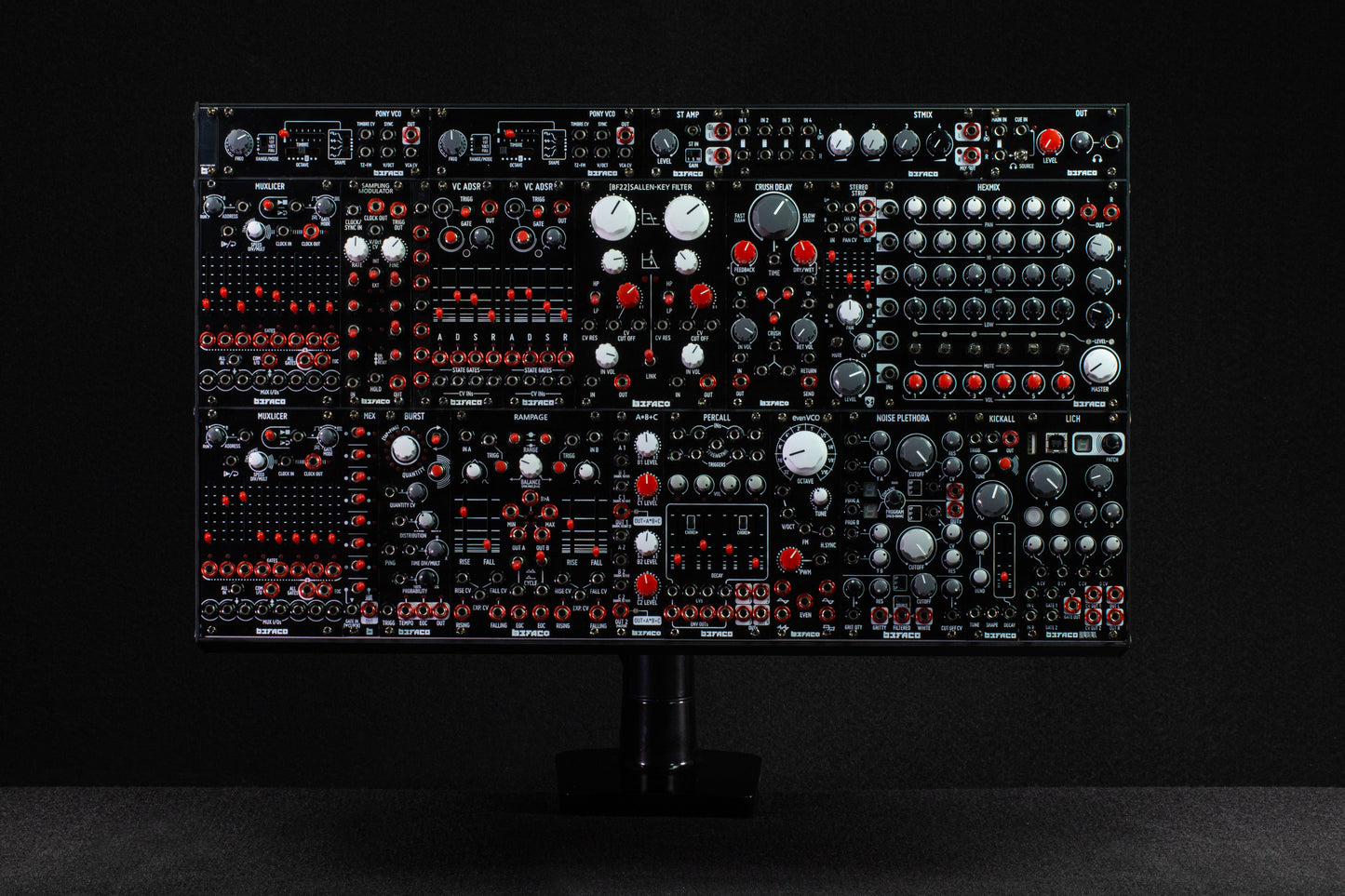

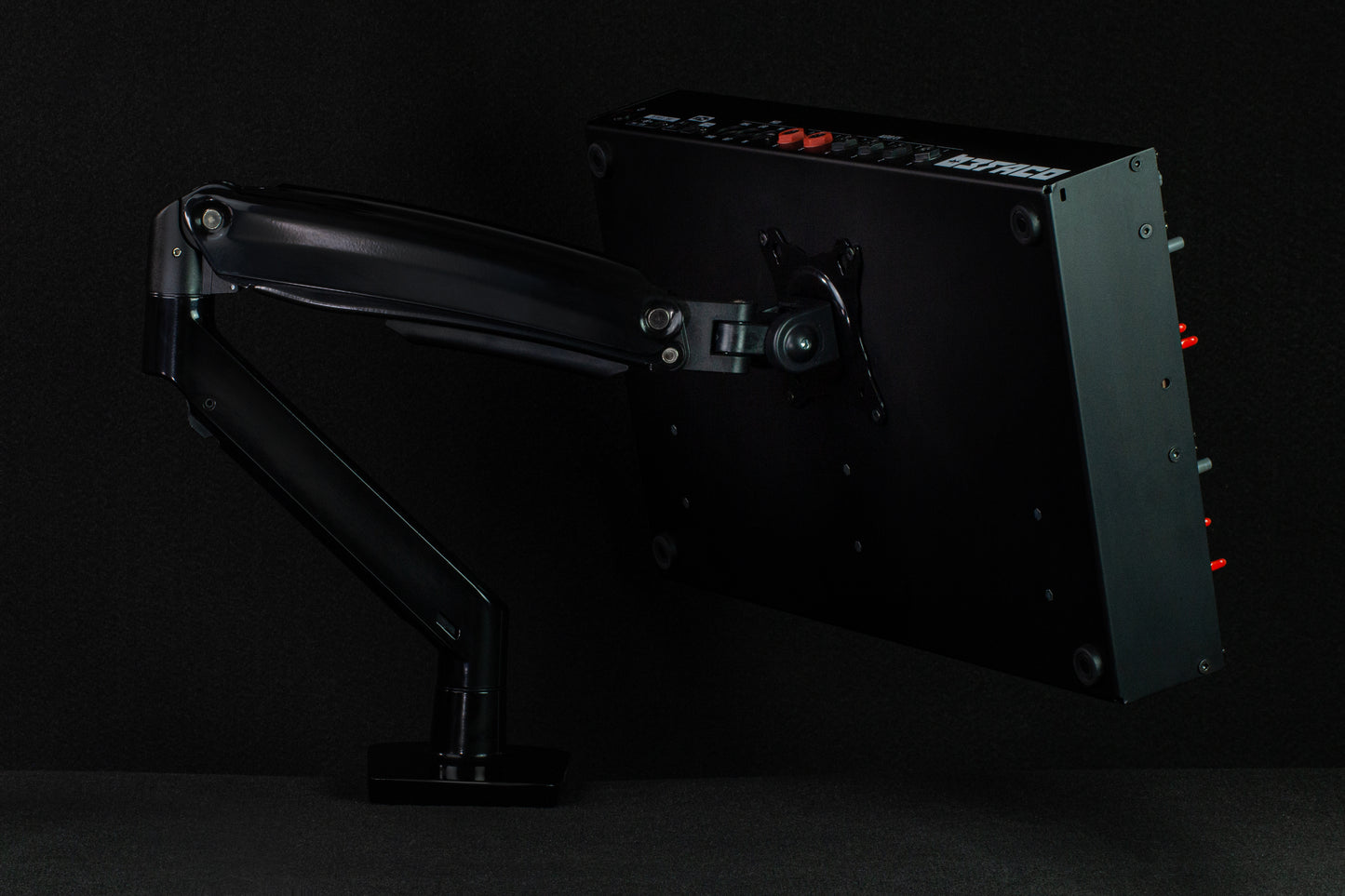

- Vesa 100 format threads. Recommended Vesa stand: >12kg
- Kensington Lock
*Modules not included.
Product Specs
- Item Number: 27472
- Make: Befaco
- Model: 7U Case
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Made In: Spain
- MPN: CS001
