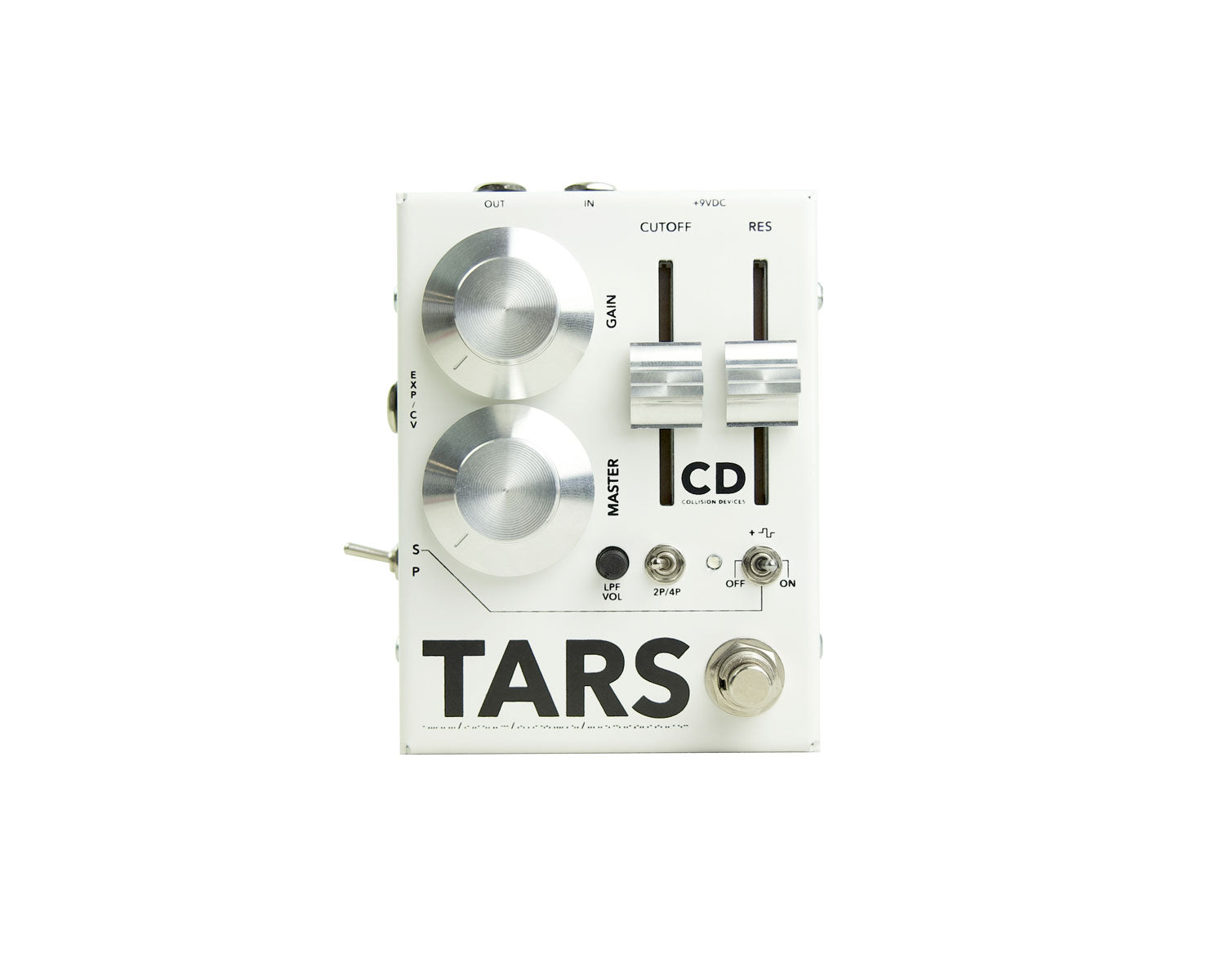

The Collision Devices TARS ("This Audio Reached Singularity") is a Fuzz & Filter pedal inspired by the Black Hole Symmetry's Fuzz and the MS-20 filter.
Cut through the mix with the different filter possibilities or sweep between the frequencies to create huge waves of noise.
Features:
- Gain : Placed after the Jfet transistor input stage and followed by silicon gain and clipping stages.
- Master : Master volume control.
- CutOff : This fader controls the cutoff frequency of the MS-20 style low pass filter. Based on a LM13700 stage and goes from 15Hz to 44kHz.
- Resonance : Increases the intensity of the signal around the cutoff frequency.
- LPF VOL : VCA - sets the output volume of the filter. Pretty useful to adjust the filter to your setup.
- 2p/4p toggle switch : Select the attenuation curve. Cut at -12dB/octave (2p) or at -24dB/octave (4p).
- Add Fuzz (On/Off) toggle switch : Add an extra unfiltered fuzz signal. The result is louder and creates cool frequencies boost or cut depending on the cutoff position.
- S / P toggle switch : Put the fuzz through the filter in serial - or use both effects in //.
- Expression/CV : The Expression/CV control is linked to the cutoff fader. The cutoff fader value sets the lowest value the EXP pedal can go.
Video: https://youtu.be/1wbplZhPKUQ
Product Specs
- Item Number: 27430
- Make: Collision Devices
- Model: Tars
- Condition: Brand New
- Finish: White
- Categories: effects-and-pedals ⇒ fuzz ⇒ pedal
- Made In: France
- MPN: CD-TARS
- EAN: 3770029812027
