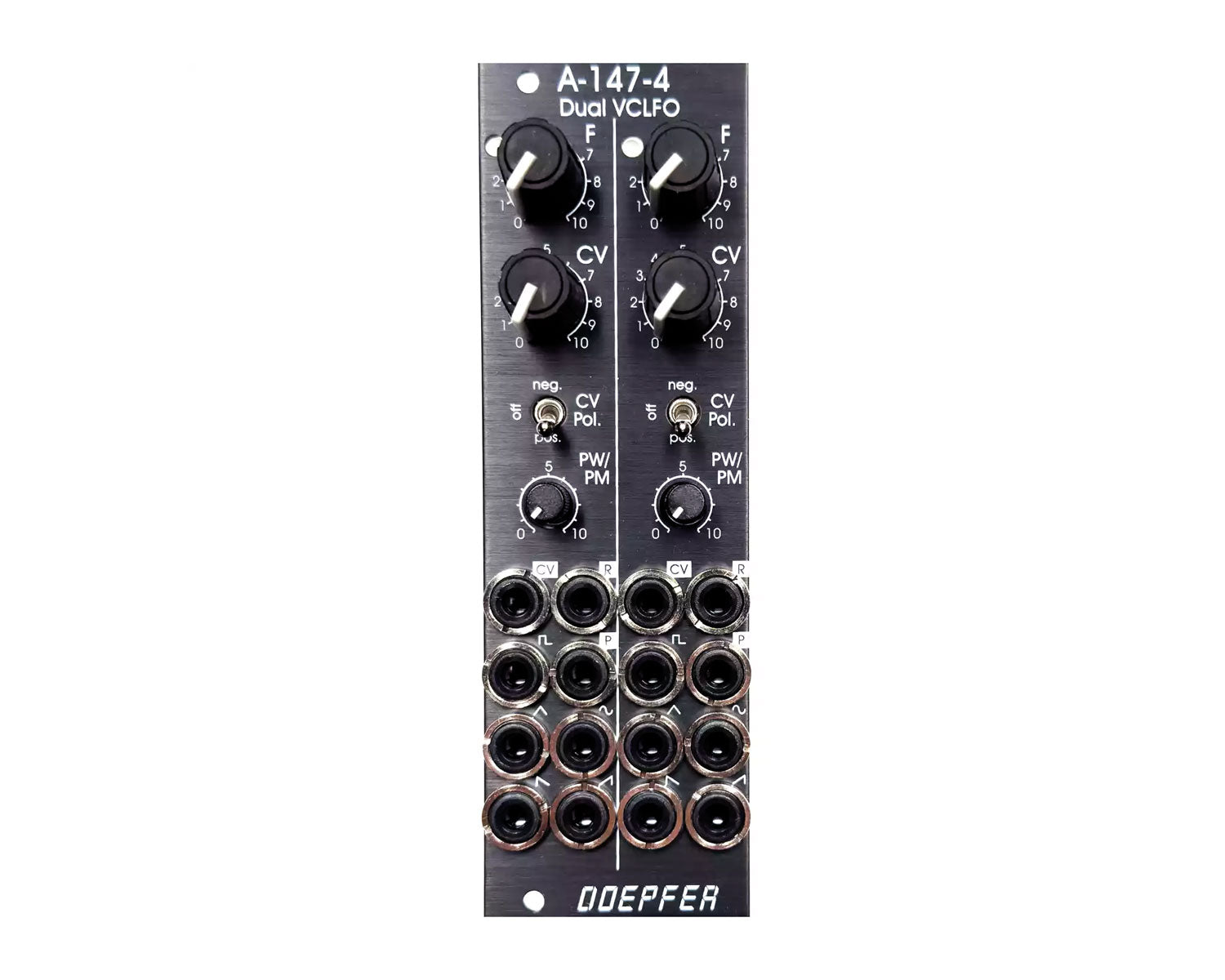

A-147-4 is a dual voltage controlled LFO, each with triangle, sine, rising & falling sawtooths, as well as rectangle waveforms. The pulsewidth of the rectangle can be controlled manually or modulated via control voltage. The waveforms are converted from a core triangle waveform. By means of a jumper the basic frequency range of each LFO can selected: about 0.02 Hz (~ 50 seconds) ... 2.5kHz or about 0.0017 Hz(~ 600 seconds) ... 220Hz. That way each LFO can be used also as a VCO with a max. frequency of about 2.5kHz. Each LFO features a reset input which can be used to reset the triangle signal.
Video: https://youtu.be/CPPjL_9fwAY
Product Specs
- Item Number: 27410
- Make: Doepfer
- Model: A-147-4v
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Dual/Stereo LFO
- Made In: Germany
- MPN: A-147-4v
- EAN: 4250711114763
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 8 HP 45 mm deep
- Power*: 80 mA +12V 70 mA -12V 0 mA 5V
* User contributed details
