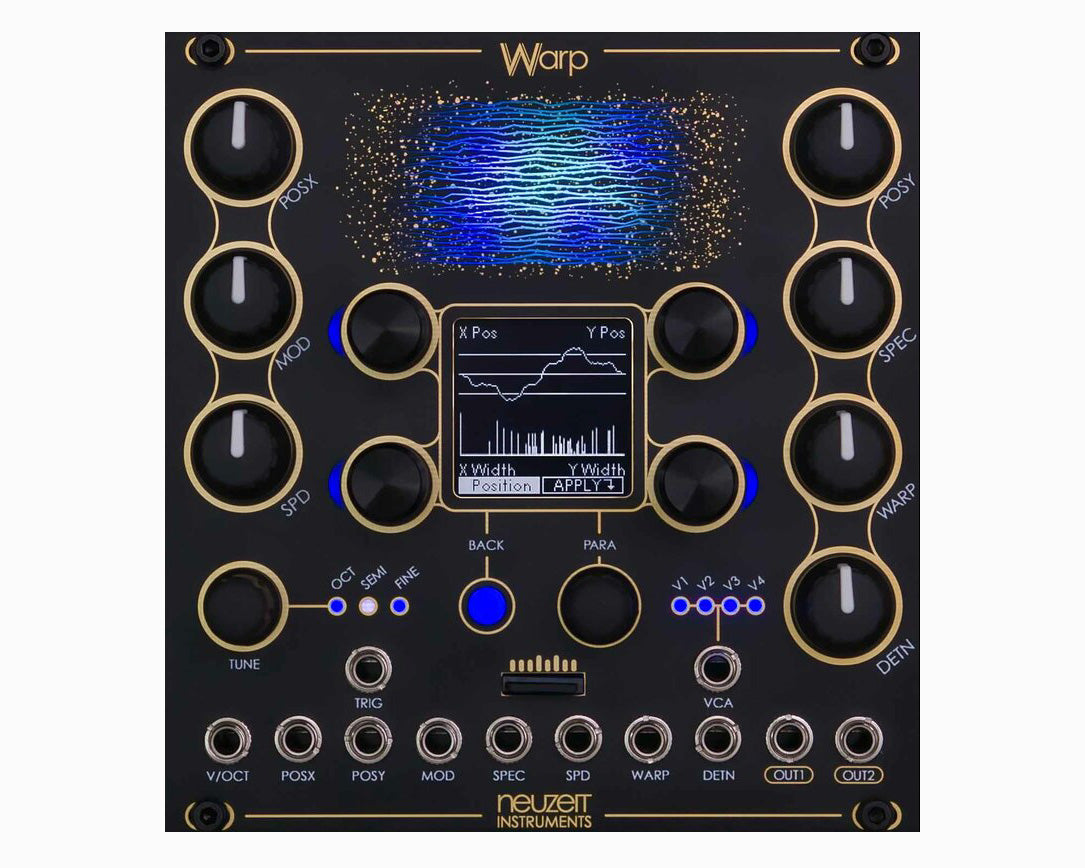

Neuzeit Instruments Warp

A new synth engine which merges wavetable and additive synthesis techniques. A colourful XY LED matrix visually represents, with 32x16 frequency spectra, the space from which Warp draws its unique timbres. As each of Warp's four voices move independently through the XY space, they pick up additive timbres based on 512 sine waves placed in the surrounding frequency spectra. The module offers the ability to save and load presets and also comes with audio files and presets on board. Warp also contains a number of effects and utilities. These include wave folding, PWM, overdrive, redux, 12/24dB/octave high pass & low pass filters for each voice, two ADSRs and two LFOs.

Specs

• Width: 24 HP
• Depth: 30 mm
• Current draw +12V: 205mA
• Current draw -12V: 20 mA
• Current draw +5V: 0 mA

Video: https://youtu.be/nFlm_b8OXbY

Product Specs

• Item Number: 27408
• Make: Neuzeit Instruments
• Model: Warp
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Dual/Stereo Oscillator Synth Voice
• Made In: Germany
• MPN: NZIwrp
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 24 HP 30 mm deep
• Power: 225 mA +12V 25 mA -12V 0 mA 5V
