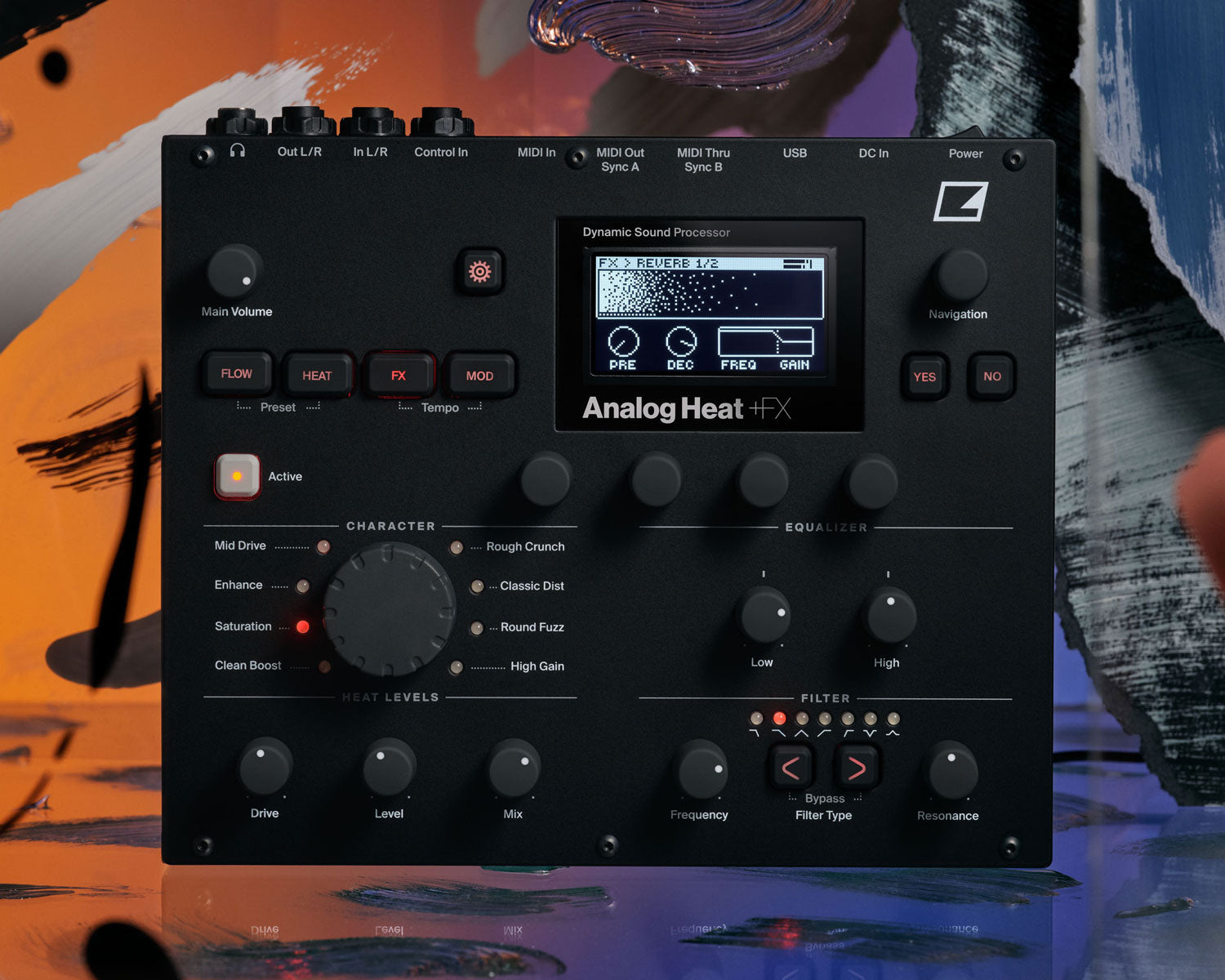

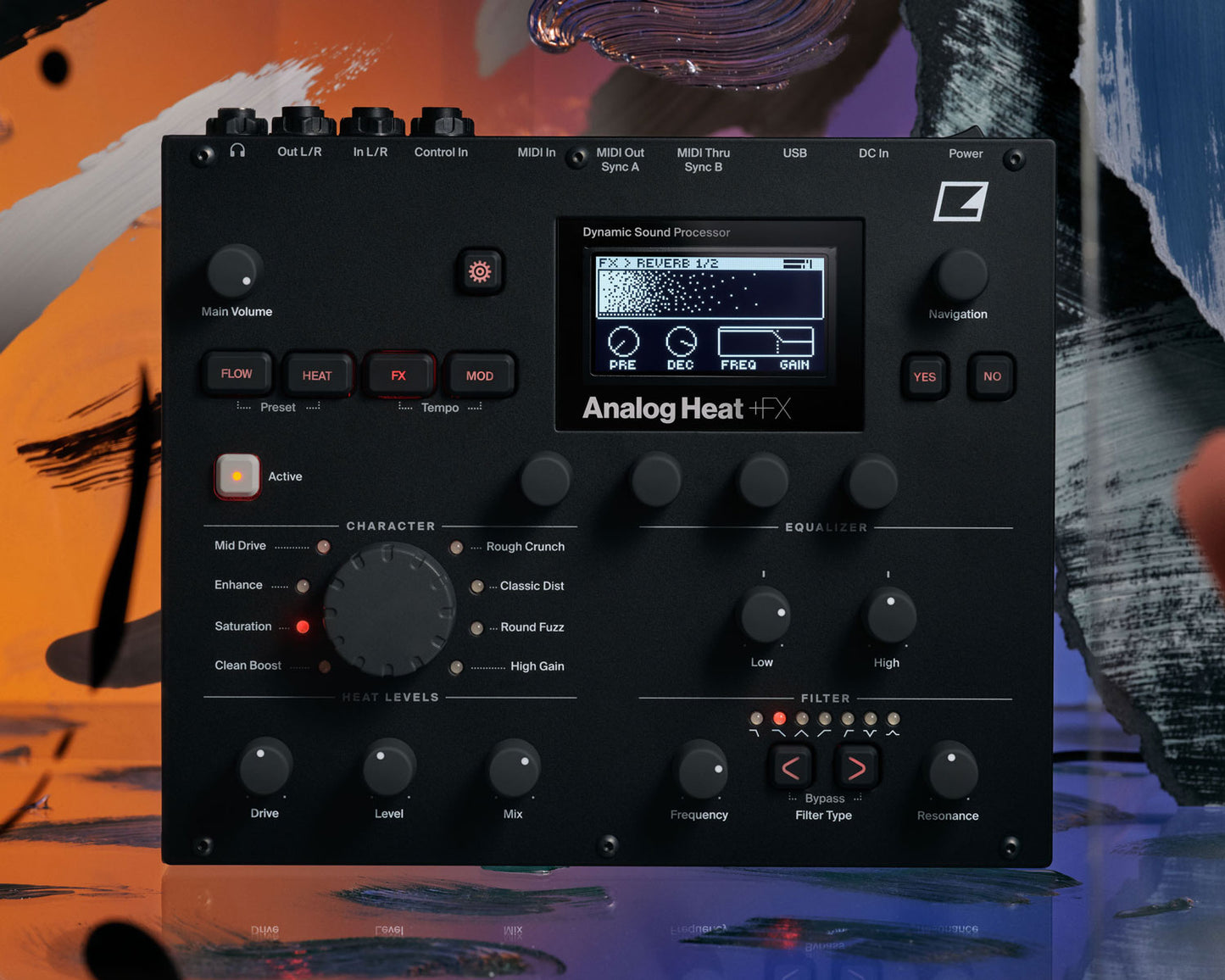

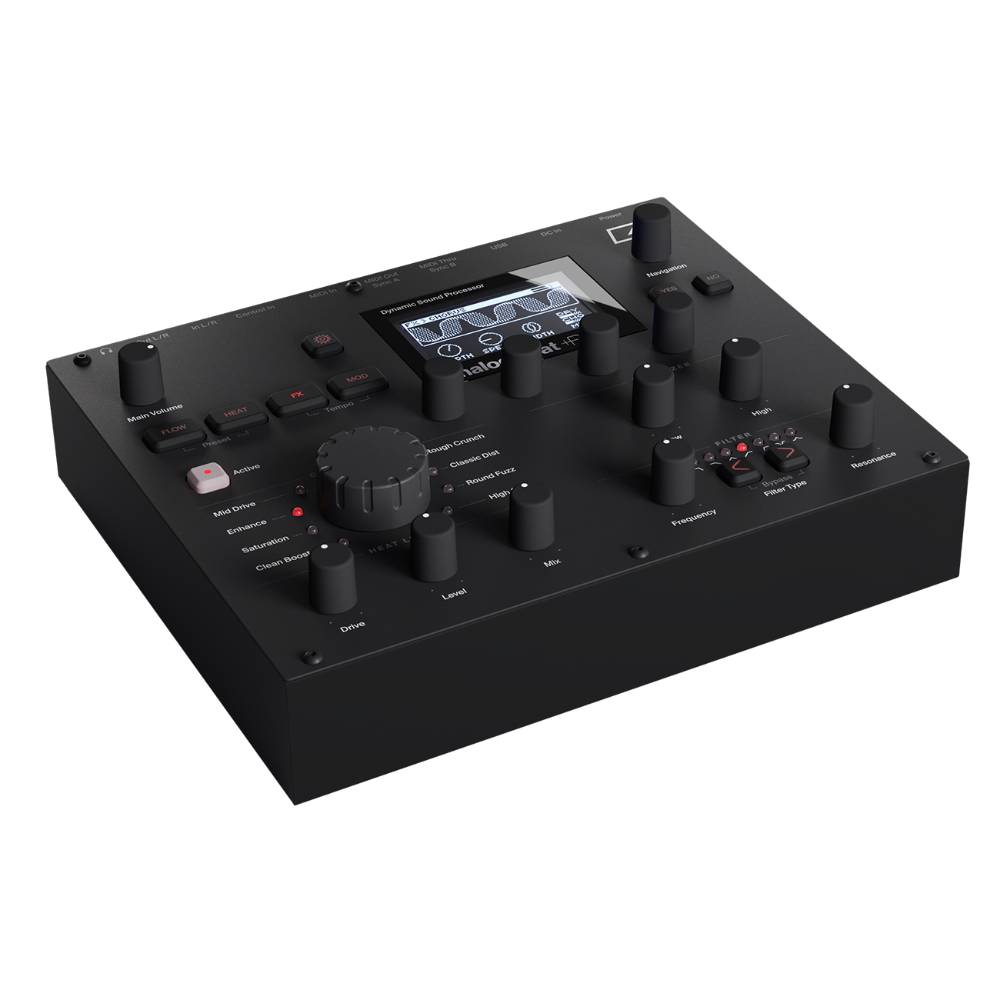

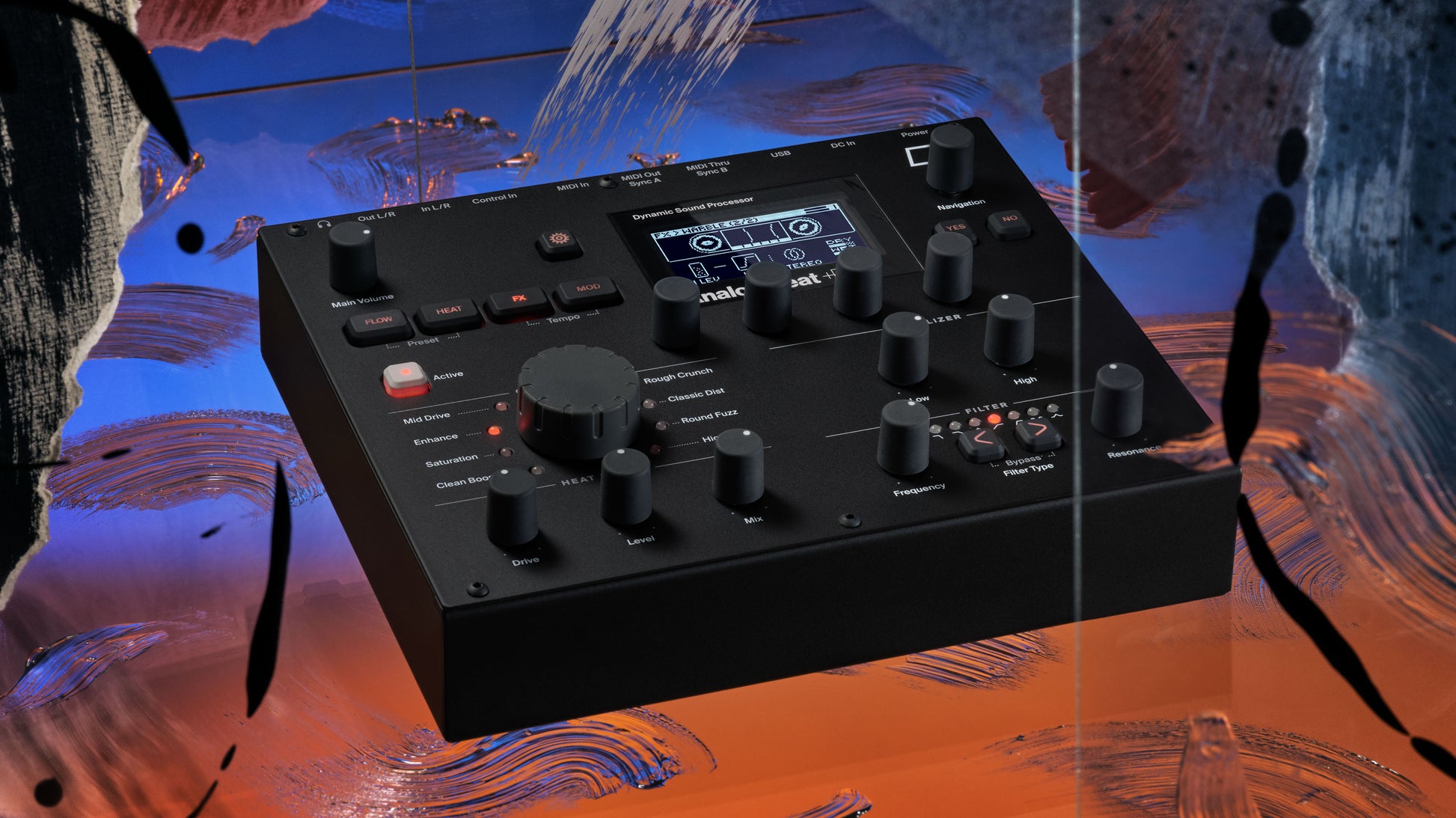

The Elektron Analog Heat +FX ia a dynamic sound processor in a fun box.
Elektron has taken the Analog Heat MKII and added digital effects (delay, reverb, tape warble, chorus, bits, compressor, bass focus) + 3 LFO’s with two destinations each and extended the preset slots to 512 instead of 128.
The Analog Heat +FX is an all-around sound colouring and manipulation box that gives you a wide colour palette of processing possibilities.
The Heat Block

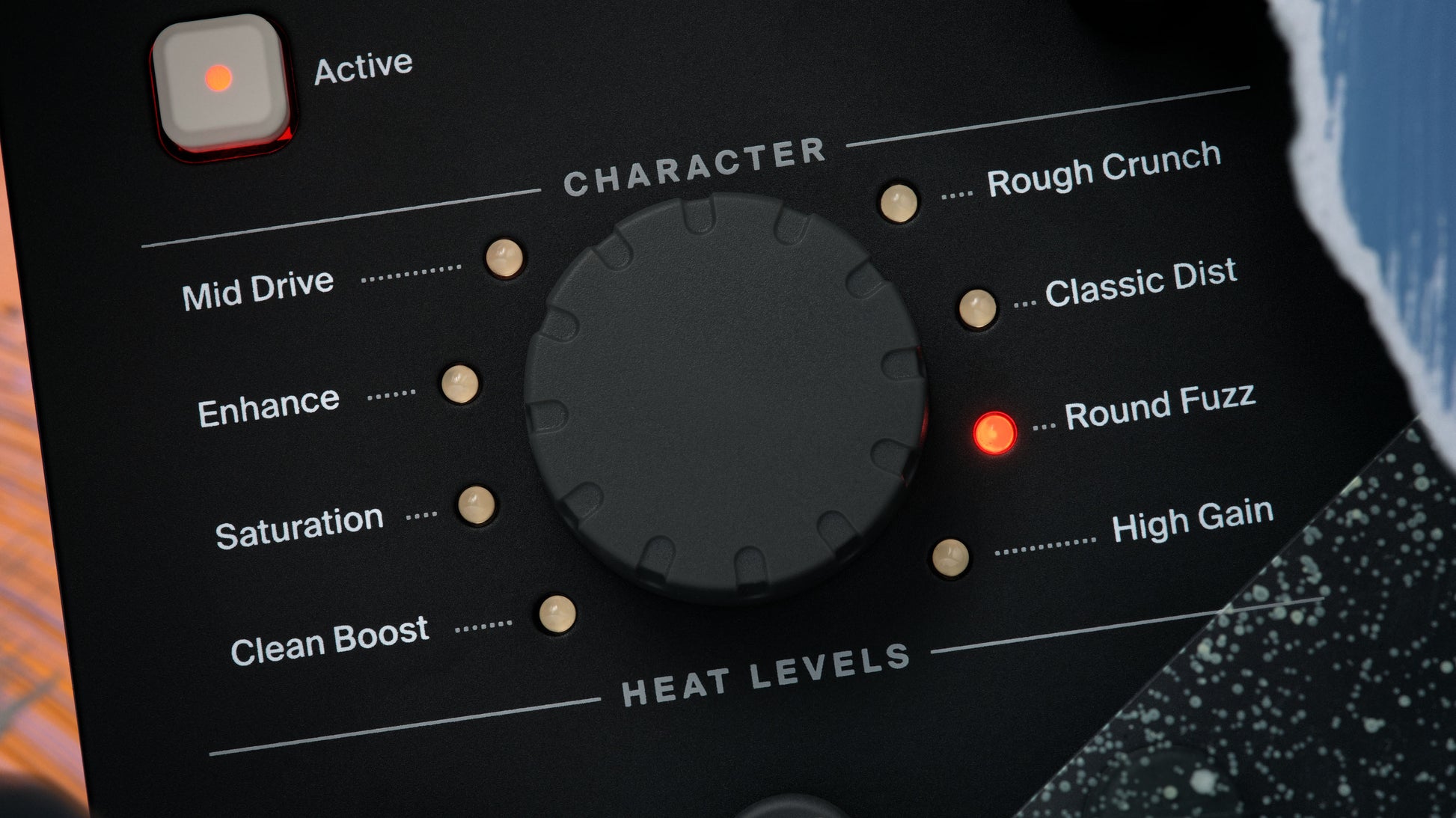

Add warmth, depth and character with eight fully analog stereo distortion circuits ranging from a subtle clean boost to complete annihilation.
Shape your material using the multi-mode filter. Selects from 7 filter types
like classic lowpass and high pass, as well as a bandpass, notch or peak.
Fine tune, add and subtract your lows and highs by twisting the knobs of
the 2-band adaptable EQ. Then fracture your sound using the noise gate.
The Digital Effects
Drift away with the warble effect, add a dash of chorus, create rich, immersive soundscapes with delay and reverb. Drip grit with a dash of bit & sample rate reduction to add a special touch of lo-fi glitchyness. Squeeze or fine tune the dynamic range of your signal with the compressor.
Flow
Reorder the effects to experiment and find your own signal flow, with your own special timbres. Add depth, dimension, complexity, and colour to your music - the re- arrangeable signal path lets you showcase all of its nuance. The options are endless. Save your explorations in one of the 512 preset slots – for instant recall.
Modulation
Experiment and have fun with a bunch of modulation options, each with two destinations. Take the incoming sound and shape it into a modulation source using the envelope follower.
Make the parameters wobble and weave in a co-ordinated or chaotic manner using any of the 3 LFOs – all with their own multiple waveforms and modulation destinations.
##Specs:
Sound Processing
- 8 stereo analog distortion circuits for adding warmth, depth, and character.
- Stereo analog multi-mode filter with 7 filter types for shaping your sound.
- 2-band adaptable stereo analog EQ for fine-tuning and adjusting lows and highs.
- Noise Gate for controlling unwanted noise.
- Reverb, Delay, Chorus, Warble, Bits, Compressor, and Bass focus effects for creating rich soundscapes.
Modulation
- 1 assignable envelope follower with two destinations.
- 3 assignable LFOs with two destinations per LFO, offering a variety of modulation options.
Storage
- 512 user preset slots for saving and recalling your favourite sounds.

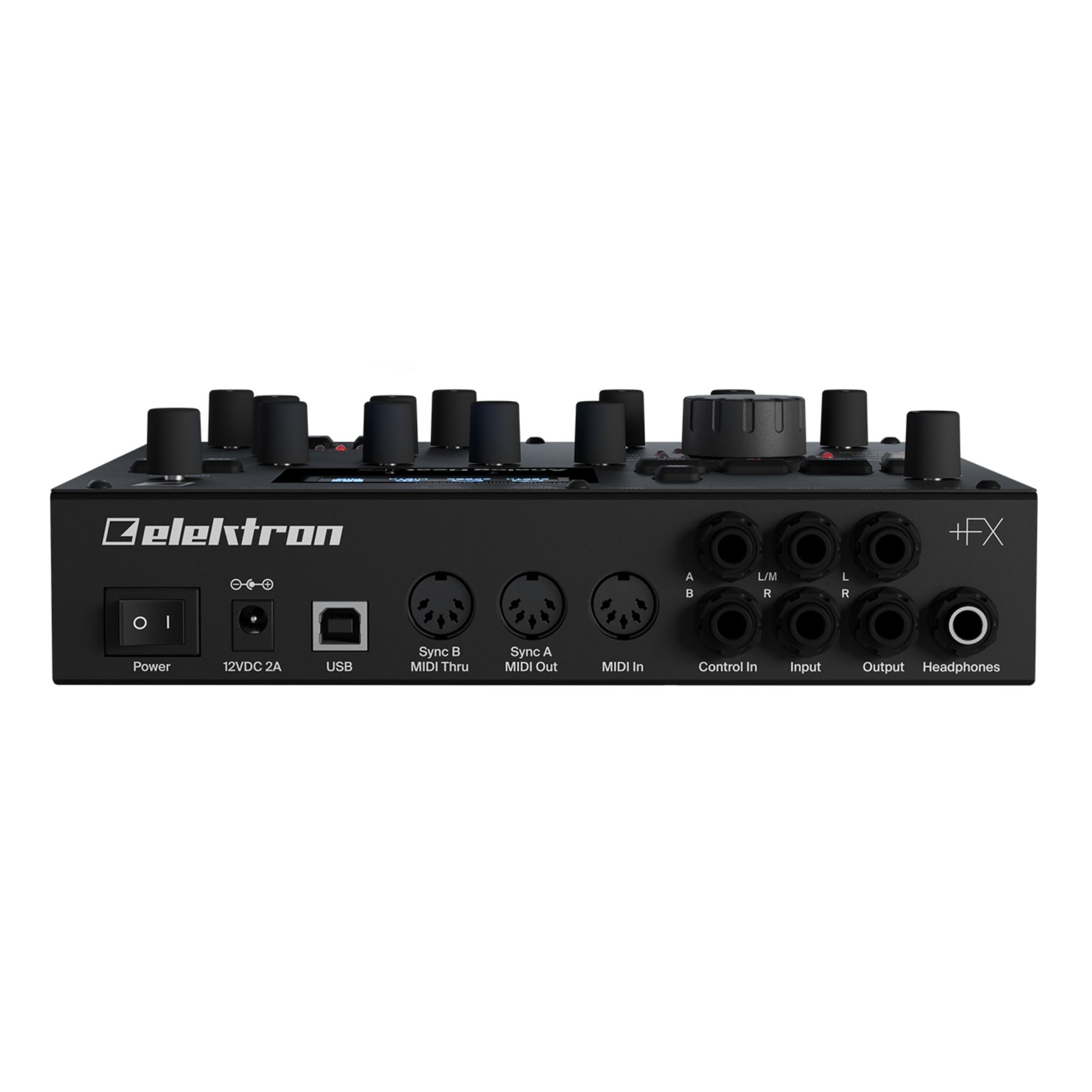

Hardware

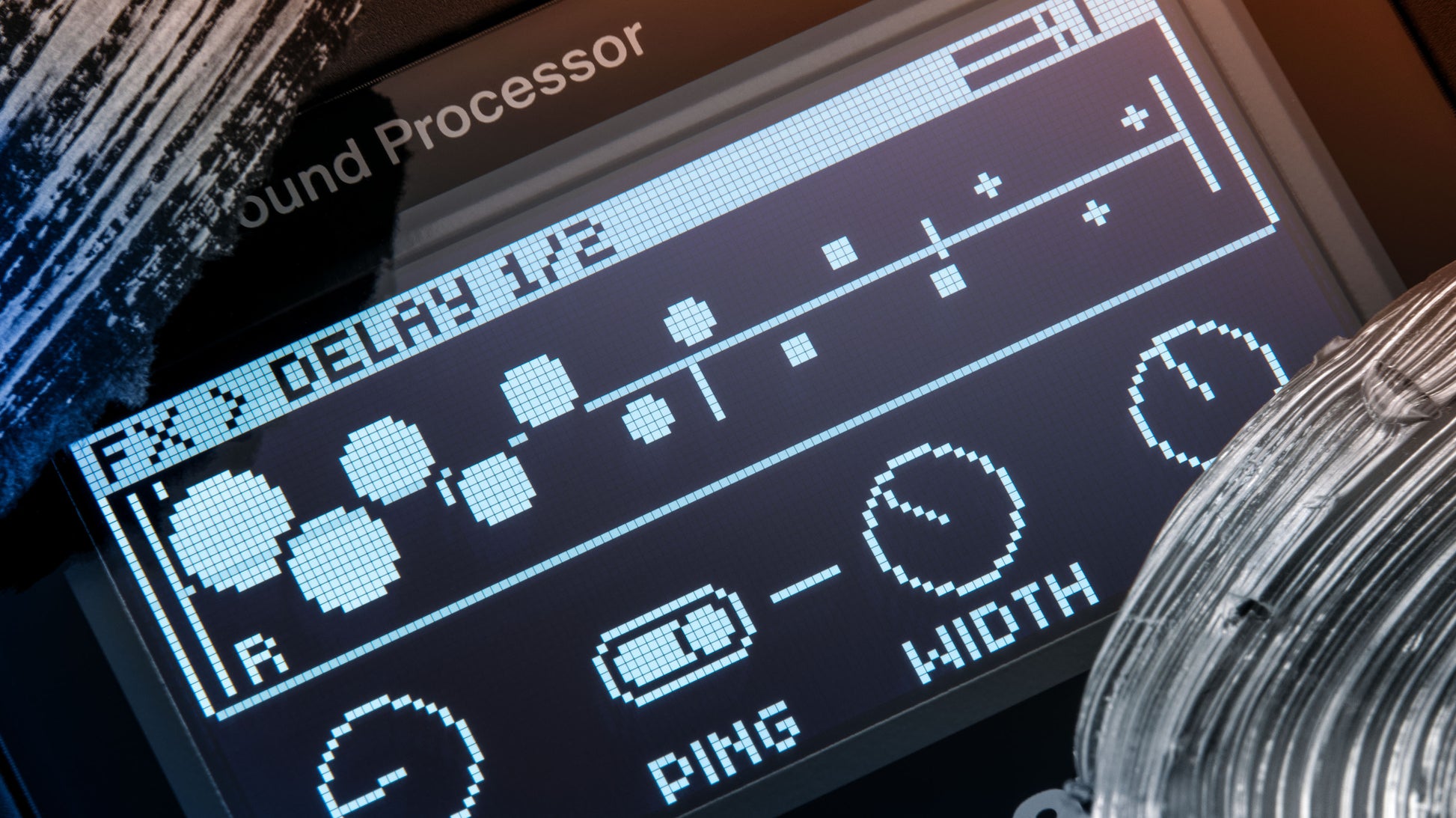

- 128×64 pixel OLED screen for easy navigation and parameter control.
- MIDI In/Out/Thru with DIN Sync out for seamless integration with other devices.
- 2 balanced audio out jacks and 2 balanced audio in jacks for versatile connectivity.
- 1 stereo headphones jack for private monitoring.
- 2 CV/Expression pedal input jacks for additional control options.
- 48 kHz, 24-bit D/A and A/D converters for high-quality audio performance.
- Hi-Speed USB 2.0 port for convenient connection to a computer or other devices.
For a limited time only:
https://grouptechnologies.com.au/heat/
Video: https://youtu.be/PCgQaC4edAw
Product Specs
- Item Number: 27371
- Make: Elektron
- Model: Analog Heat +FX
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ workstation-keyboards
- Function: Digital Distortion Multieffect
- Made In: Sweden
- MPN: ELEKAHFX
- EAN: 7350049240831
- Modular Grid: Pedals ⓘ ＋
- Dimensions*: 216 mm wide 183 mm high
- Power*: 1100 mA / 12 V DC / Positive Center
* User contributed details
