Incompatible voltage ranges? Convert between the most common signal ranges: -5 to +5 V, 0 to +5 V and 0 to +10 V. Bonus! Functions as a pair of dual input unity gain mixers, -6 and +6 dB audio gain stages or a multi-output fixed voltage source all under 2 HP.
Voltage control is the basic tenant of modular synthesis: parameters may be modulated by changing control voltages (CVs), simply by plugging in a patch cable. The Bias 2 provides a precise and compact solution to quickly interface signals between modules within a Eurorack modular system, without interrupting your creativity. With meticulously engineered analogue signal paths providing absolutely transparent performance for any Eurorack signal: CV, audio or gates/triggers.
Features:
- Precision analogue dual scaler/offsetter in an ultra-narrow 2 HP.
- Designed to simplify interfacing between common Eurorack voltage ranges: -5 to +5 V, 0 to +5 V and 0 to +10 V.
- Each section can be configured to add or average signals.

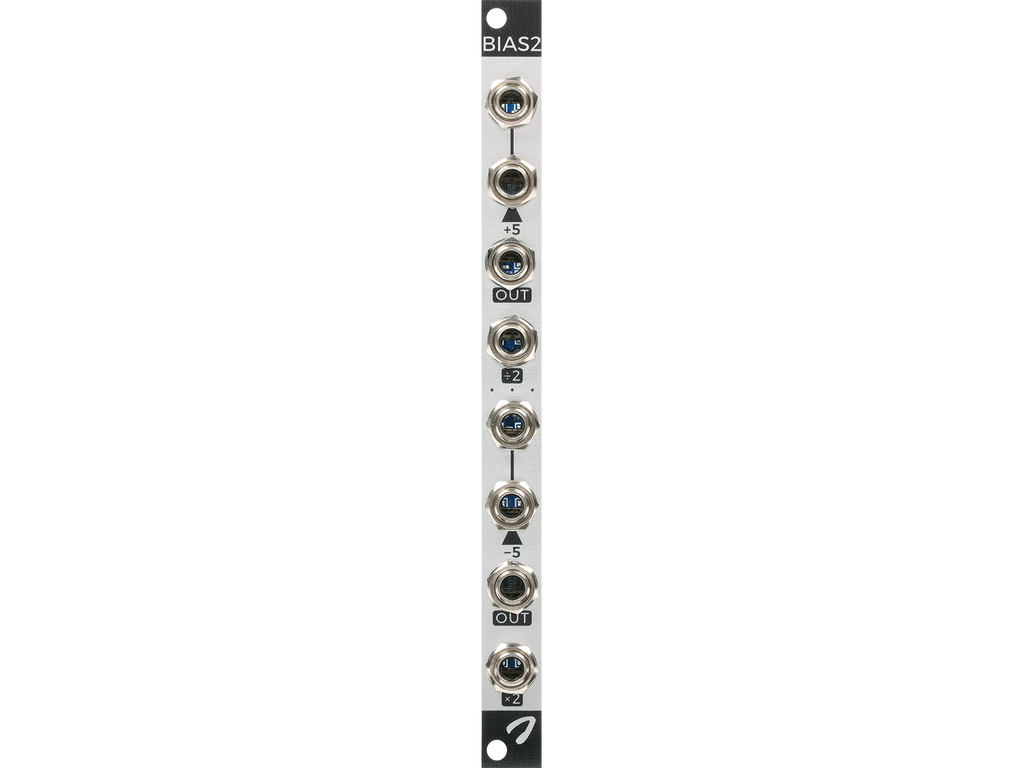

- Top section has a +5 V reference normal and Ć·2 attenuation output, bottom section a ā5 V normal and Ć2 gain output.
- High gain accuracy, very low offset, noise and distortion, flat bandwidth to 20 kHz: suitable for any signal.
- Impedance-compensated outputs.

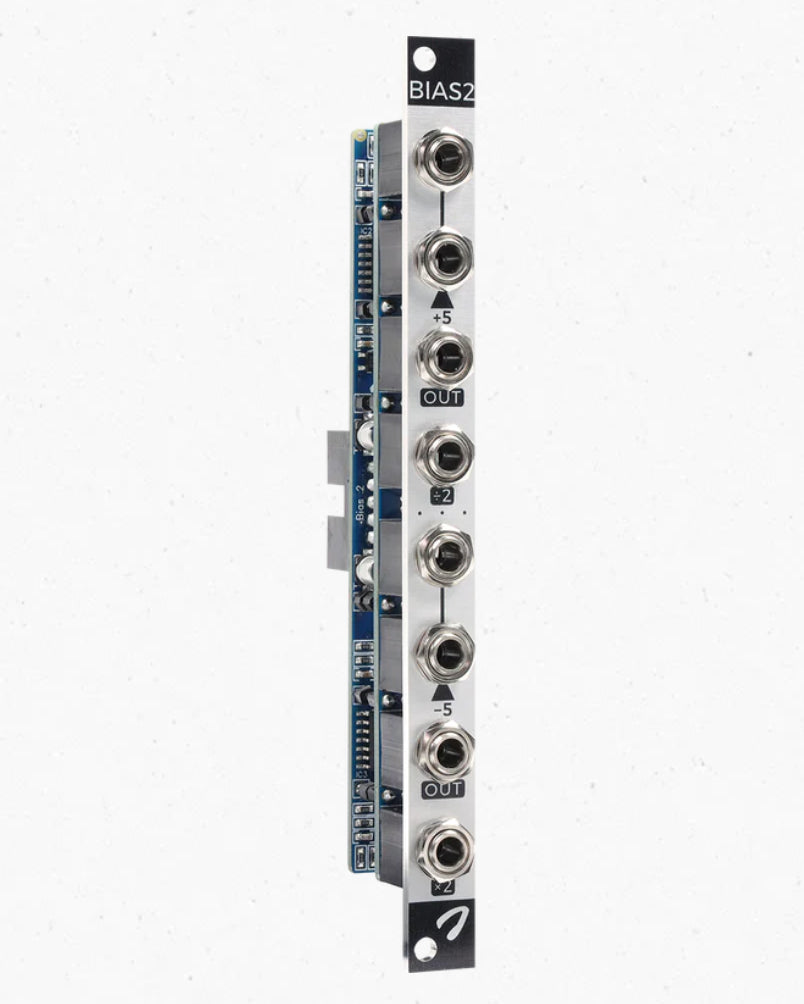

- Precision-milled 2 mm anodised aluminium front panel with high-resolution, non-erasable graphics.
- Bullet-proof design: polarised power header and MOSFET protection circuit.
- Includes 16-to-10-pin Eurorack power ribbon cable.
- Premium mounting hardware: black screws, black nylon washers and matching hex key.
- High-quality components and assembly; designed and made in Belgium.
Product Specs
- Item Number: 27368
- Make: Joranalogue
- Model: BIAS 2
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Utility
- Made In: Belgium
- MPN: JORB2
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 2 HP 40 mm deep
- Power: 20 mA +12V 20 mA -12V 0 mA 5V
