* This item is not currently in stock, orders will be fulfilled when the item becomes available.

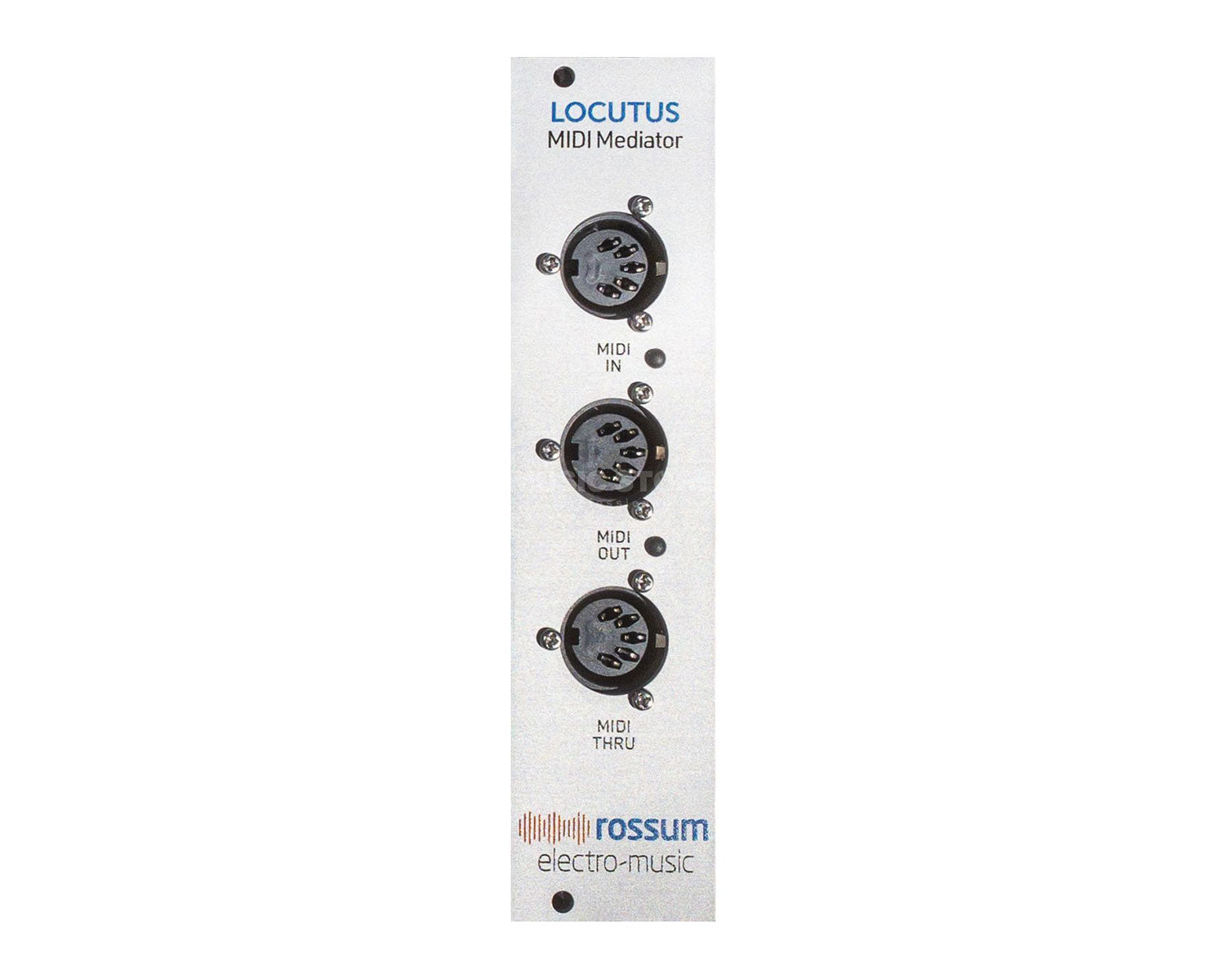

The Rossum Electro-Music Locutus is a 6HP add-on interface for the Assimil8or allowing you to interface with MIDI instruments, controllers and sequencers to provide multichannel modulation and dynamic polyphonic possibilities.
Locutus supports multiple MIDI modes, and multiple voice assignment modes designed to work with keyboards, drum machines, the Rossum SP-1200, and other gear.
Please note that Locutus requires an Assimil8or; it includes a special cable to connect to the Assimil8or CPU.
Once connected, MIDI sources connected to Locutus’ MIDI IN port can be used to modulate Assimil8or parameters using velocity, channel pressure, and MIDI CC (Continuous Controller) messages, select presets using MIDI Program Change (PC) messages, and/or optionally trigger Assimil8or channels with MIDI notes using user-selectable assignment modes.
MIDI Setups can be configured with assignment modes including Dynamic, which intelligently cycles through Assimil8or’s channels to easily create polyphonic patches, Multi assignment modes ideal for playing multitimbral Assimil8or patches with MIDI sequencers, SP-12 modes designed especially for triggering Assimil8or with SP-1200’s MIDI output, and more.

The MIDI OUT port can be used to optionally transmit program messages when presets are changed and/or to send MIDI CC data based on the analog control voltages patched to Assimil8or’s 24 CV inputs. Using the new CV-to-MIDI options, Assimil8or and Locutus can be configured to control and modulate MIDI equipment using a eurorack modular system.
Download and install version 3.0 of the Assimil8or software to use the Locutus MIDI Mediator module with Assimil8or.
There is no charge for this update. The update includes some significant feature enhancements in addition to the MIDI functions enabled by Locutus, and will be available to download from the Rossum Electro-Music website (on the Assimil8or ‘downloads’ tab) here
This update to the Assimil8or software introduces improvements to editing samples and loops, including a visual indicator of the playback position and the option to snap to zero crossings when editing Sample Start & End and Loop Start & End. New factory content including presets, samples, and MIDI Setup examples to demonstrate Assimil8or’s new polyphonic and MIDI capabilities will also be available for download free from rossum-electro.com.
Video: https://youtu.be/XgzEReDa_Ew
Product Specs
- Item Number: 27061
- Make: Rossum Electro-Music
- Model: Locutus
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Expander MIDI Utility
- Made In: United States
- MPN: REM-LOC
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 6 HP 25 mm deep
- Power*: Module does not draw current
* User contributed details
