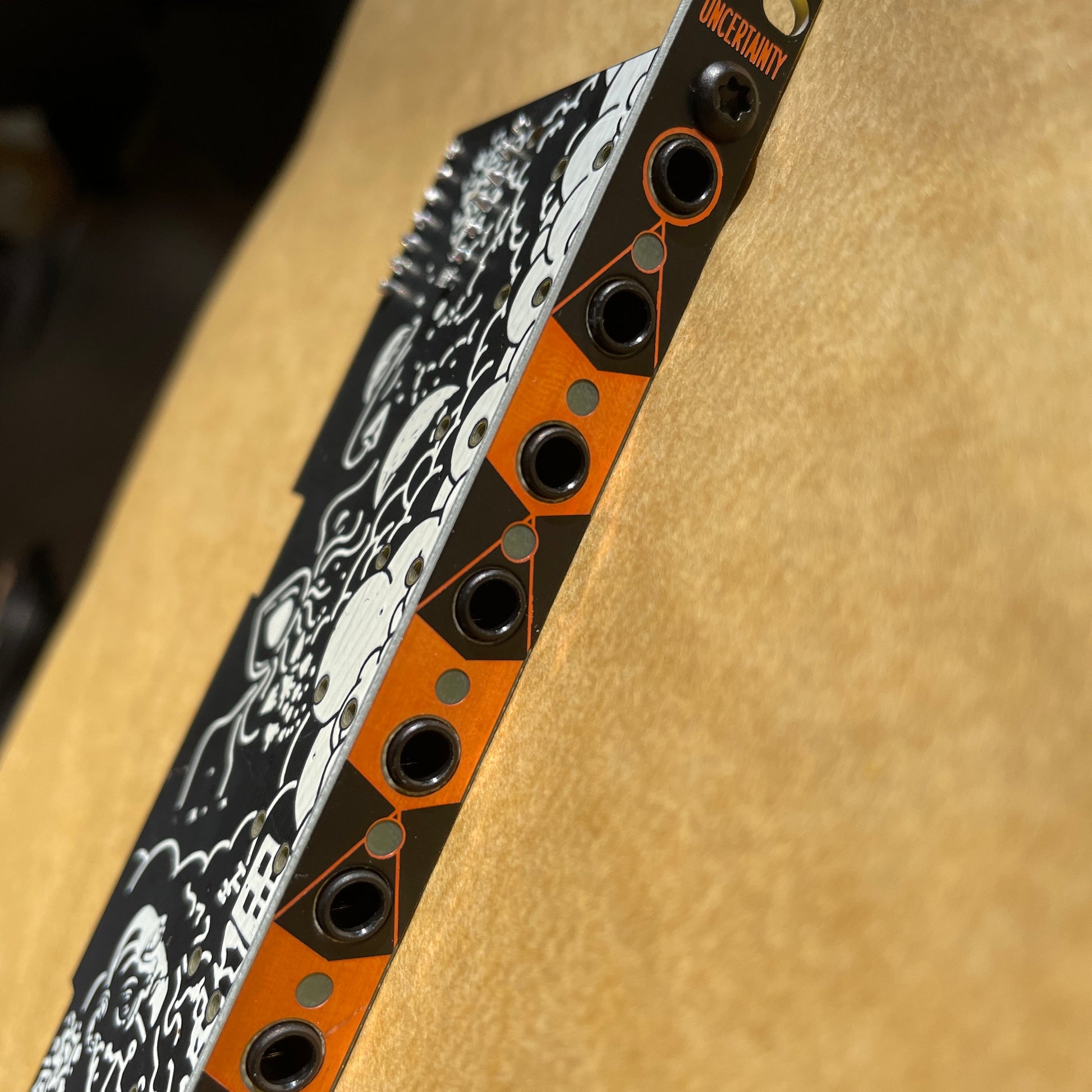

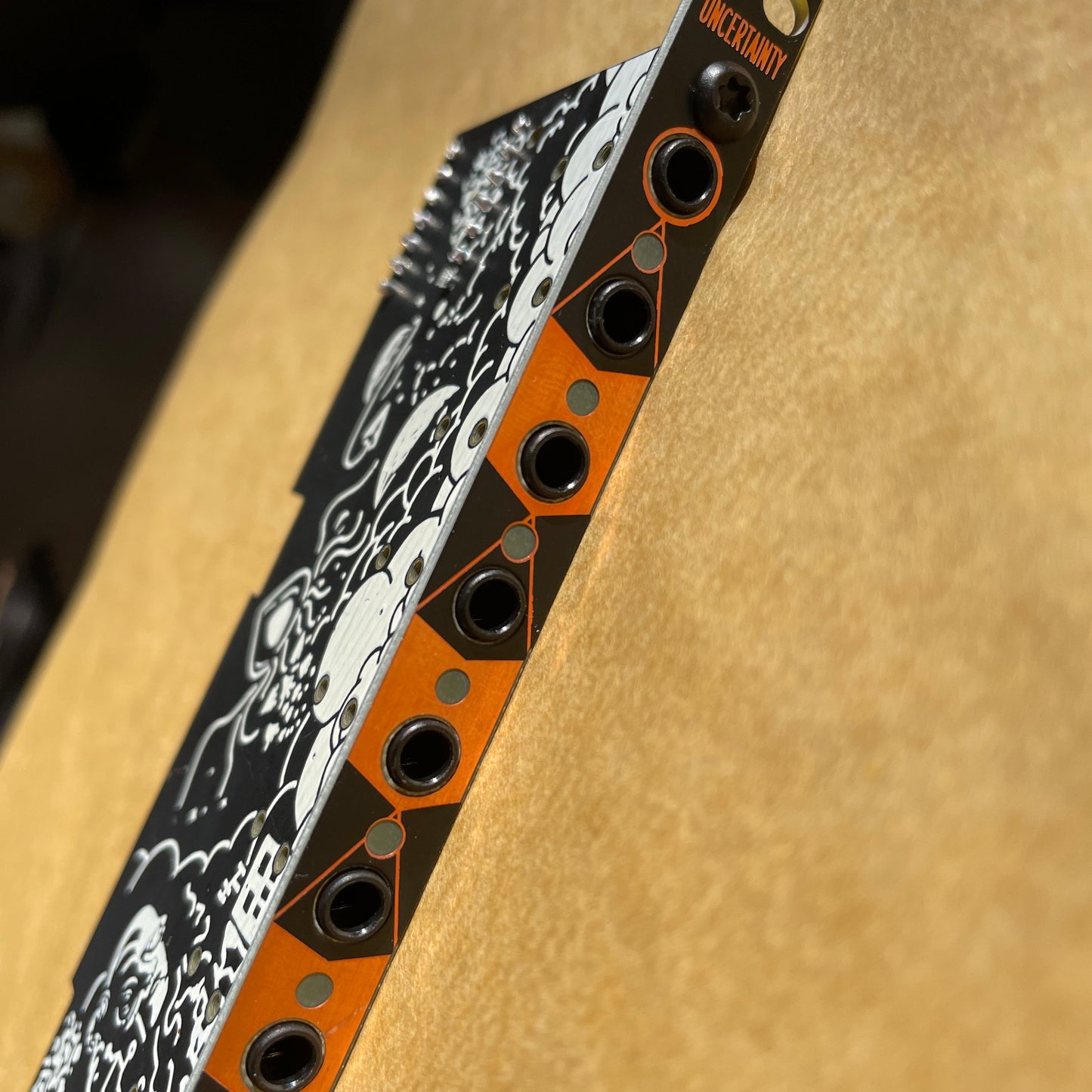

The OAM Uncertainty is a 2HP gate-processor, VU meter, and open-source platform for Eurorack.
Uncertainty is a stochastic gate-processor that randomly drops gates you try to pass through it. You can use it to create branches in your patch where events are channelled into one river or another.
Plug Uncertainty into your computer and you can replace this default firmware with others that completely change the functionality of the module. OAM will be continuously releasing new, free, open-source firmware for Uncertainty, but there is also a community writing and sharing their own code. It’s got a fast processor and can be coded in C++, Python, and Go, so it’s easy to join in.
As of March 2023, Uncertainty has its second official firmware, VU Meter. A perfectly normal VU Meter where each LED gets its own gate output, but it makes gated effects and modulation so easy. You can also use jumpers on the module to invert the VU Meter or switch it into dot-mode, where only the peak LED is activated. So the loudness contour of a patch can strum things!
Uncertainty uses 53ma on the +12V rail plus 9-10ma per gate that is being sent out at any given moment.
- 2HP and 42mm deep
Video: https://youtu.be/Oryi5PtDtmE
Product Specs
- Item Number: 27051
- Make: Olivia Artz Modular
- Model: Uncertainty
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Random Digital Utility Clock Modulator Noise MIDI
- Made In: United States
- MPN: OAM-UN
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 2 HP 42 mm deep
- Power: 92 mA +12V 0 mA -12V 0 mA 5V
