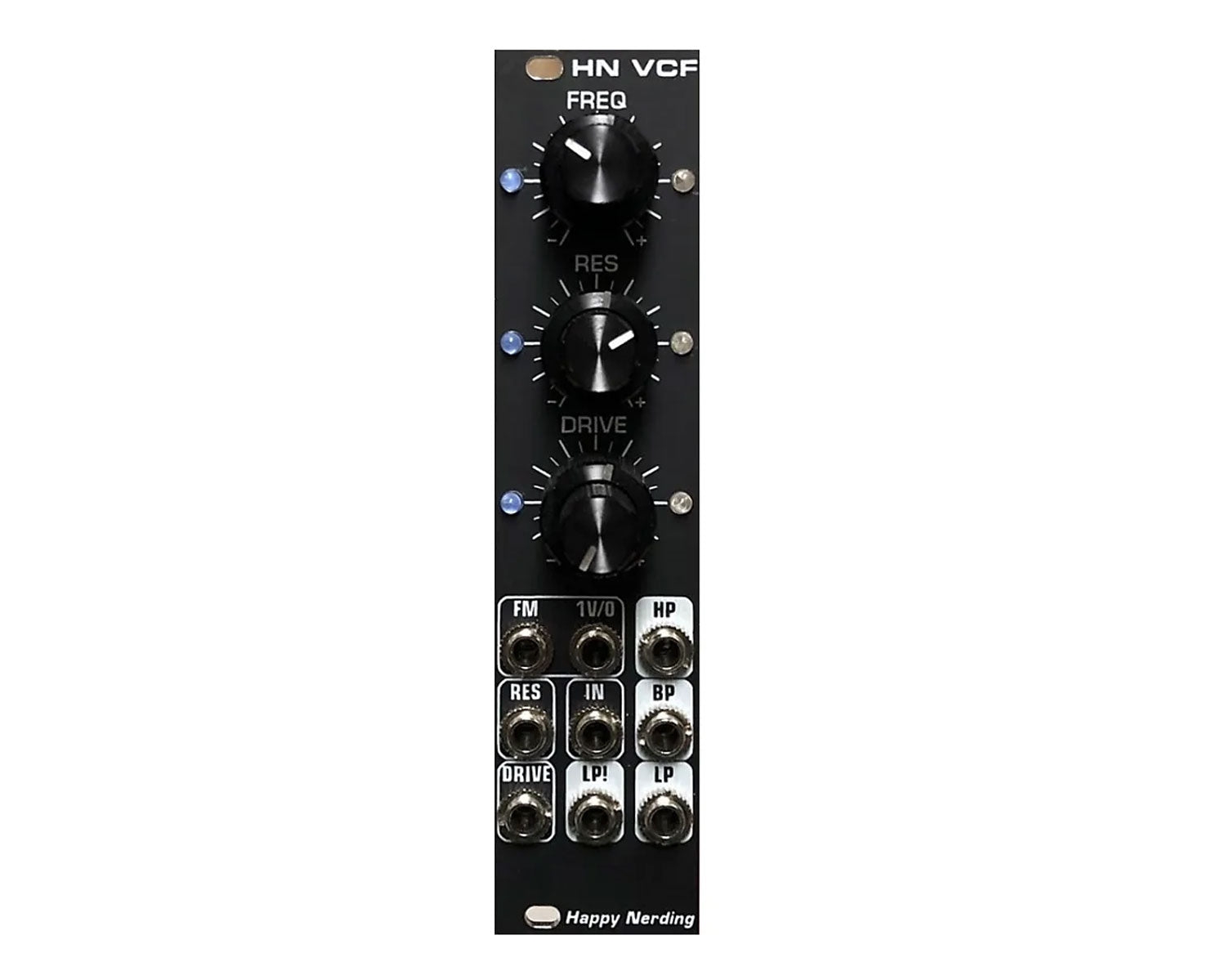

Happy Nerding HN VCF - Black

The Happy Nerding HN VCF is a 6HP state variable filter featuring 12 db Low Pass, 12 dB High Pass, 6 dB Band Pass plus 18 db Low Pass marked as “LP!”, because it has extra drive.
All three parameters: “Freq”, “Resonance” and “Drive” have dual knobs with outer knobs controlling bipolar CV amount. These affected CVs are then shown by the relative green/blue leds. The possibility to have CV over “Resonance” and “Drives” makes it a very capable 6HP filter. HN VCF can be used to transform mono sound to pseudo stereo. To do this you should send “LP” output to one channels and “LP!” to another. With some “Drive” added to the sound it starts to be spread over the stereo field.

Video: https://youtu.be/-NTTC_R3-bc

Product Specs

• Item Number: 26583
• Make: Happy Nerding
• Model: HN VCF - Black
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Distortion Filter
• Made In: Spain
• MPN: HNVCF
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 6 HP 35 mm deep
• Power*: 55 mA +12V 65 mA -12V 0 mA 5V
