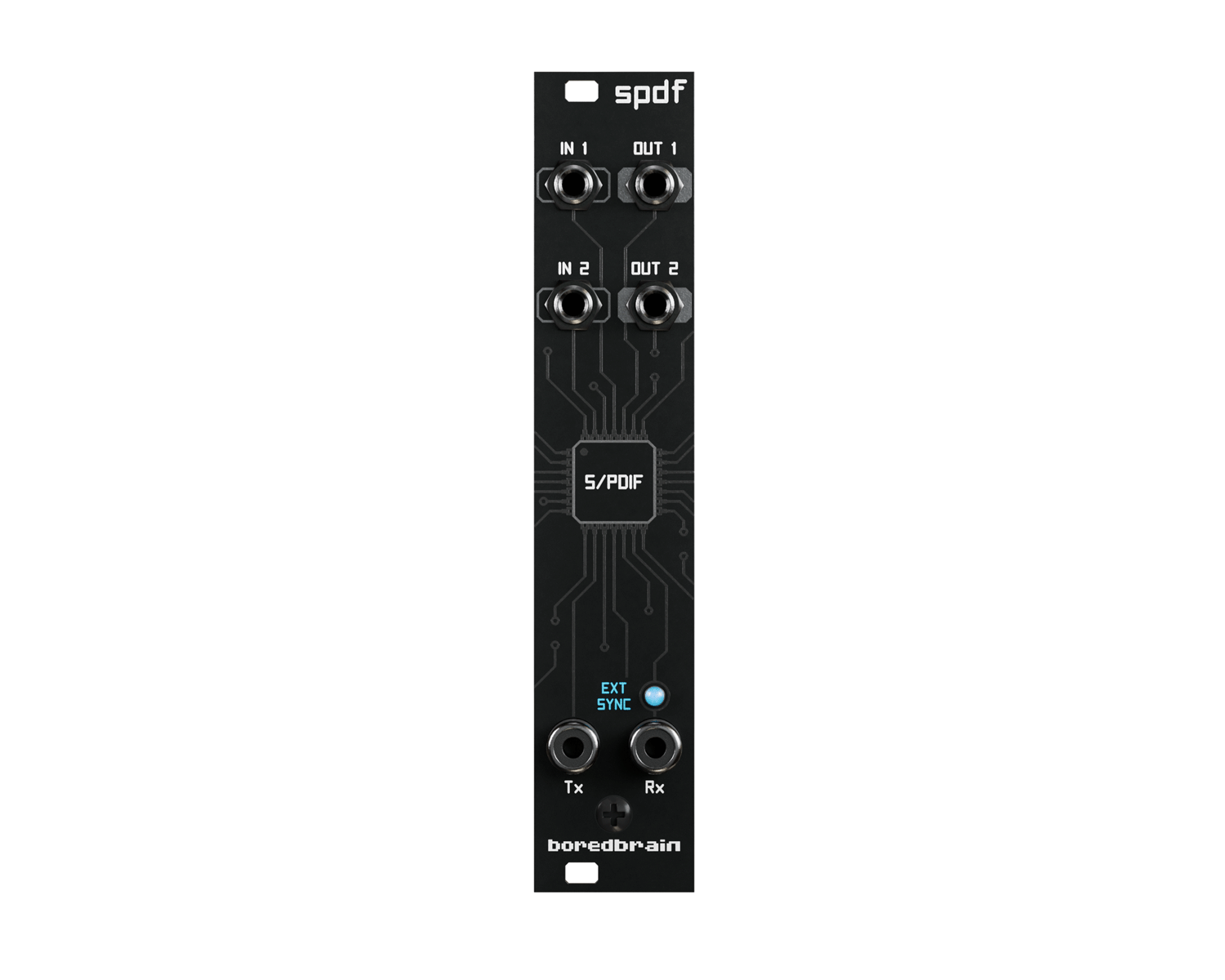

BoredBrain Spdf Analog-SPDIF Converter

The Boredbrain spdf is a 5HP digital encoder and decoder for eurorack synthesisers.
It converts analogue audio and CV signals to and from the S/PDIF format to interconnect digitally with computer audio interfaces and other S/PDIF enabled devices.

Features:

• Encodes 2 analogue inputs into a S/PDIF format
• Decodes a S/PDIF digital signal into 2 analog outputs
• DC-Coupled inputs and outputs support both CV and audio signals
• Selectable 44.1/48 kHz internal sample clock or external sync
• Digital coaxial cable connectors for S/PDIF signals (RCA)

Video: https://youtu.be/NVDctQSI6LA

Product Specs

• Item Number: 26365
• Make: BoredBrain
• Model: Spdf
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Digital Dual/Stereo External Utility
• Made In: United States
• MPN: BB-SPDF
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 5 HP 25 mm deep
• Power*: 55 mA +12V 10 mA -12V ? mA 5V

* User contributed details
