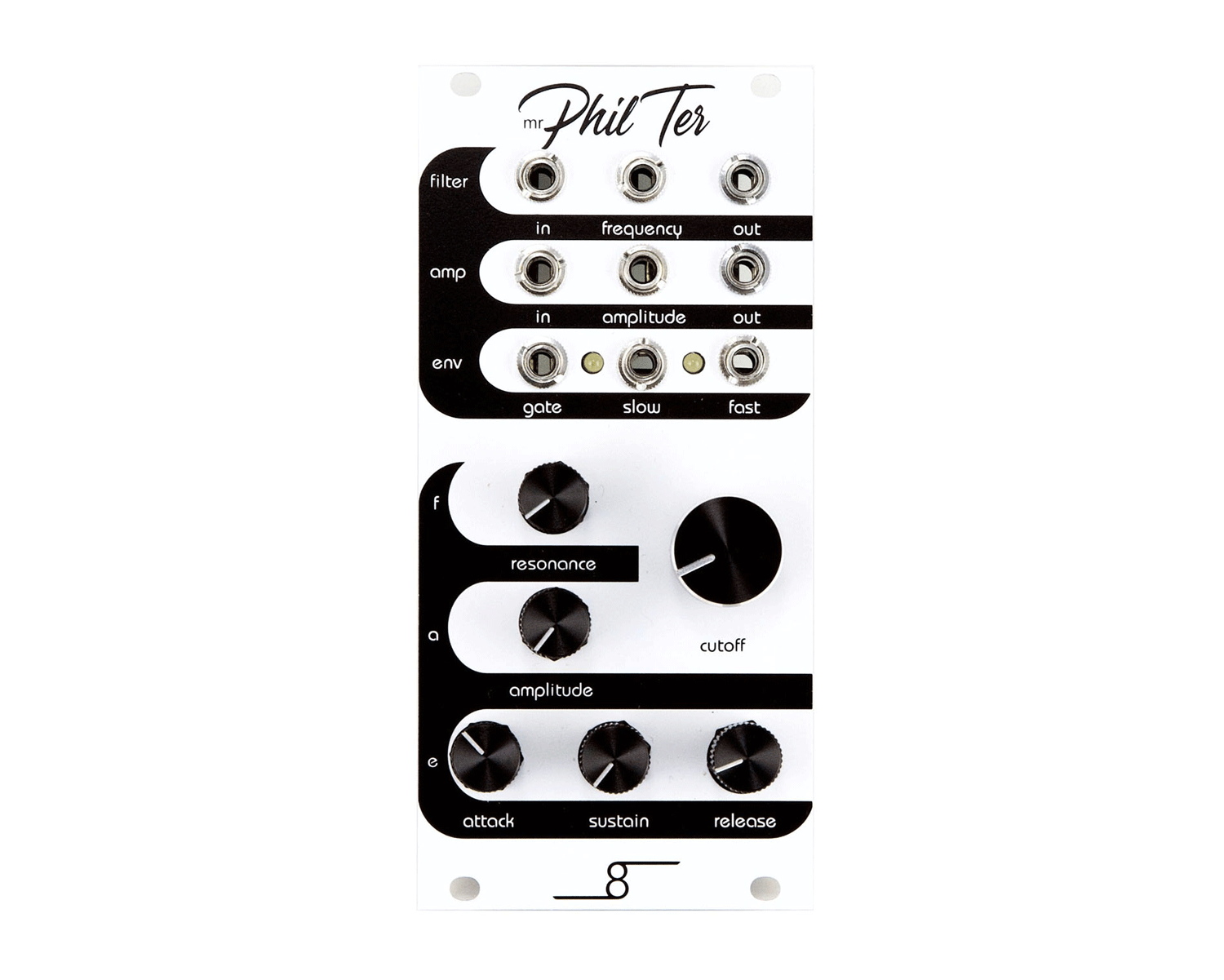

CRE8 AUDIO Mr. Phil Ter VCA + Envelope + Filter

Developed in partnership with Pittsburgh Modular, Cre8audio has packed an abundance of functionality in 12HP to form a complete synth voice when paired with just about any oscillator.
Pittsburgh Modular supplied the analog portions of this module, containing a robust low-pass ladder filter design reminiscent of the classic Moog sound, and a clean, reliable VCA. There's also a digital envelope generator, with controls for Attack, Sustain, and Release providing shared control over simultaneous fast and slow outputs, with times ranging from zero to five or ten seconds respectively.

FEATURES

• Analog filter and VCA with digital envelope generator
• Transistor-based lowpass filter design
• Squeaky clean DC-coupled VCA
• Envelope times range from 0-5 and 0-10 seconds, from fast and slow outputs respectively
• Easter egg mode quantizes envelope to 7-bits for stepped slopes

Video: https://youtu.be/E6FVYgCGcUA

Product Specs

• Item Number: 26266
• Make: Cre8audio
• Model: Mr. Phil Ter
• Condition: Brand New
• Finish: White
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Envelope Generator Filter VCA
• Made In: China
• MPN: CRE-MR-PHILTER
• UPC: 850009372062
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 12 HP 26 mm deep
• Power*: 33 mA +12V 36 mA -12V 22 mA 5V

* User contributed details
