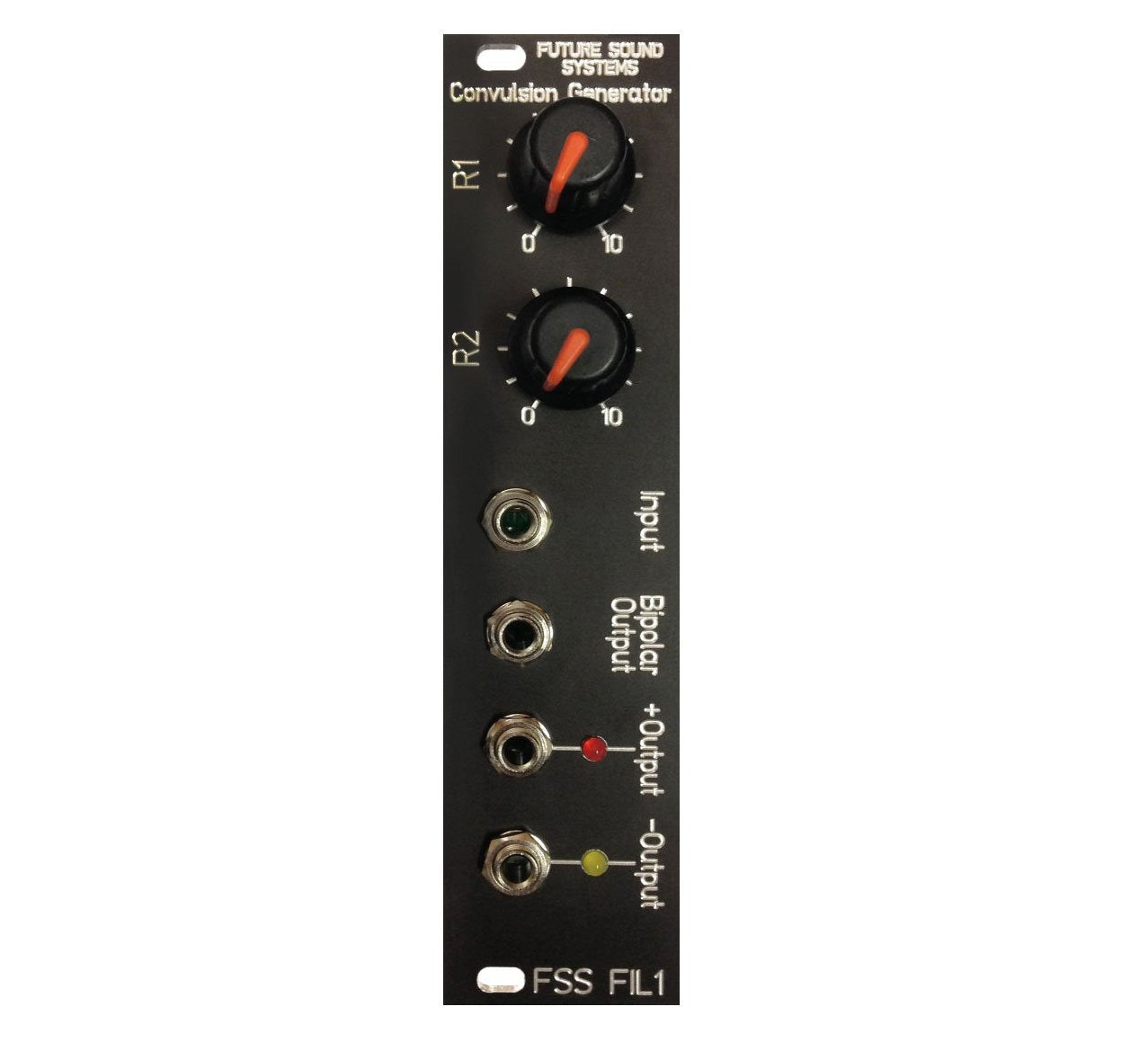

Future Sound Systems FIL1 Convulsion Generator

The Convulsion Generator is based around a bridged-T resonator circuit, as found at the heart of the infamous TR808 kick drum. The circuit will produce decaying sinusoids when pulses are sent to the input. This can be likened to "pinging" a resonant filter. However, in the case of the Convulsion Generator, the resonator has been tuned so that these sinusoids are produced at frequencies below the audible range. This means that the Convulsion Generator can output sinusoidal CV sources, as well as covering the lower end of the audible spectrum, allowing for boomy, bass-heavy kick drums.

Video: https://youtu.be/l5_10exnops

Product Specs

• Item Number: 2572
• Make: Future Sound Systems
• Model: FIL1 Convulsion Generator
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Envelope Generator CV Modulation Resonator
• Made In: United Kingdom
• MPN: 160801301053023
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 6 HP 29 mm deep
• Power*: 20 mA +12V 20 mA -12V 0 mA 5V

* User contributed details
