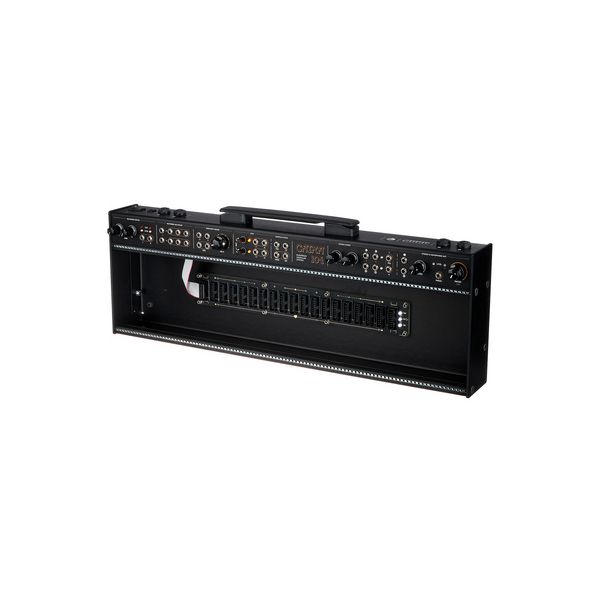

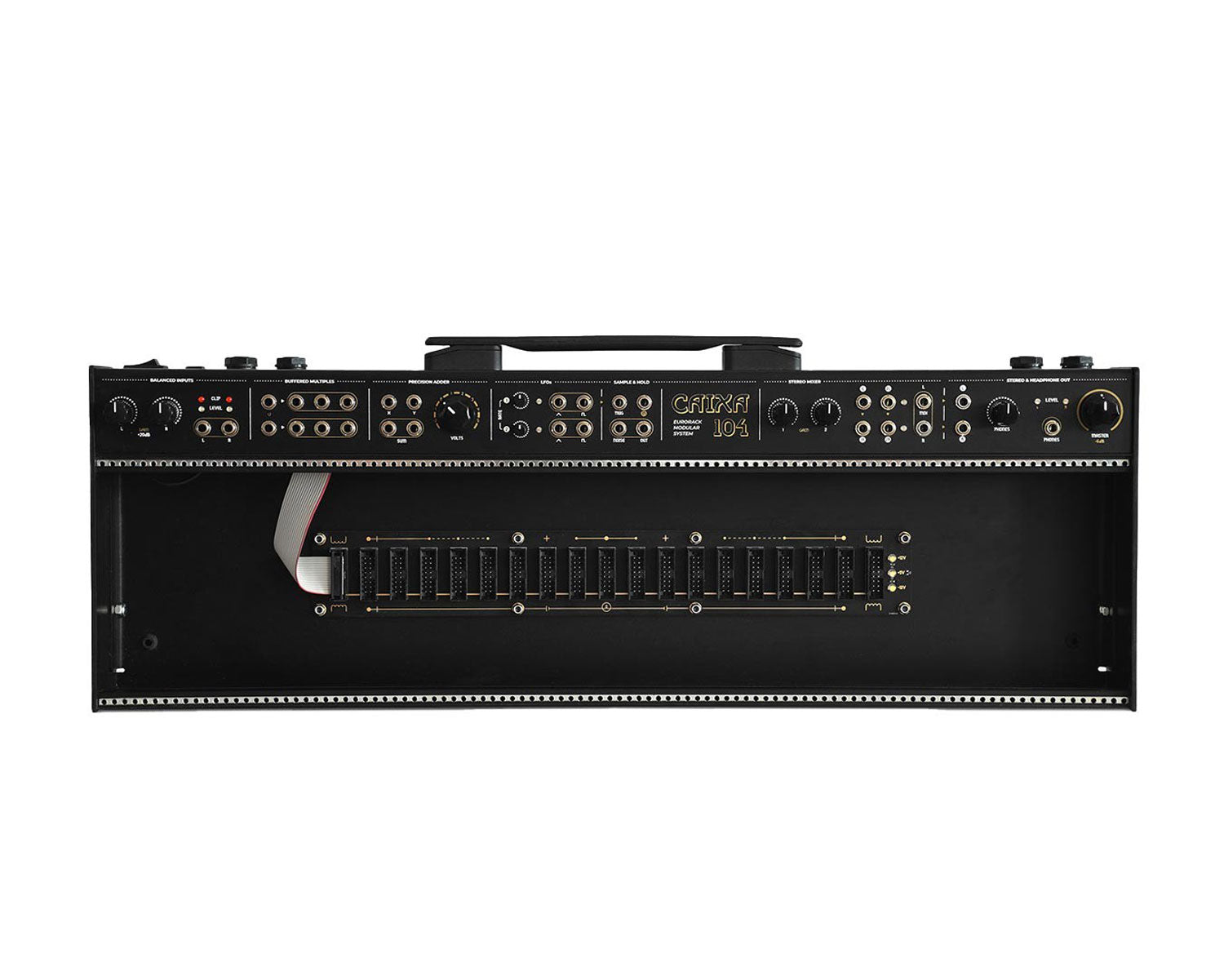

NANO Modules' CAIXA 104 is a small, portable Eurorack case with plenty of power, depth, and integrated modules so you can easily use just the essentials for your performance.
The key feature is a useful row of integrated modules at the top of the case with inputs, outputs, and a stereo mixer section you can easily route your sound. Two LFOS, a precision adder, sample and hold, and buffered mult complete the functional row with voltage and modulation utilities.
Up to 19 modules can be powered with the 30w power supply and the busboard features reverse power protection. You have plenty of room for larger modules with 60mm of clearance outside the busboard and 47mm above the busboard.
Features:
- 104 HP Eurorack case with integrated utilities
- 7 Integrated modules: balanced inputs, buffered mult, precision adder, 2x LFOs, sample and hold, stereo mixer, and stereo line out with headphone output
- Busboard supports 19 modules
- Reverse power protection
- 60mm Depth outside busboard, 47mm above busboard
- 30W Power supply
Video: https://youtu.be/0NH0fRJJMRA
Product Specs
- Item Number: 25629
- Make: NANO Modules
- Model: Caixa 104
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: LFO Mixer Multiple Power Sample and Hold Utility External Noise
- Made In: Spain
- MPN: NAN-CAI104
- Modular Grid: Eurorack ⓘ ＋

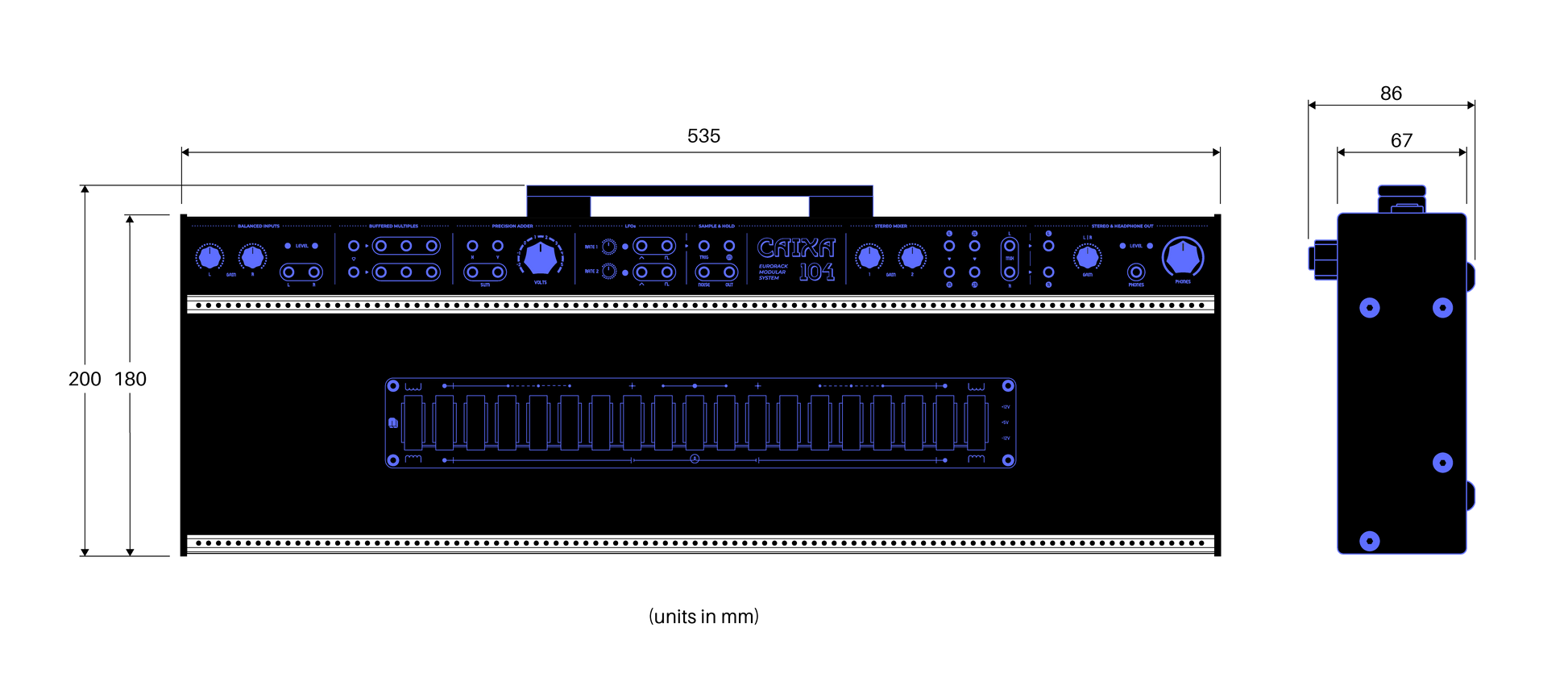

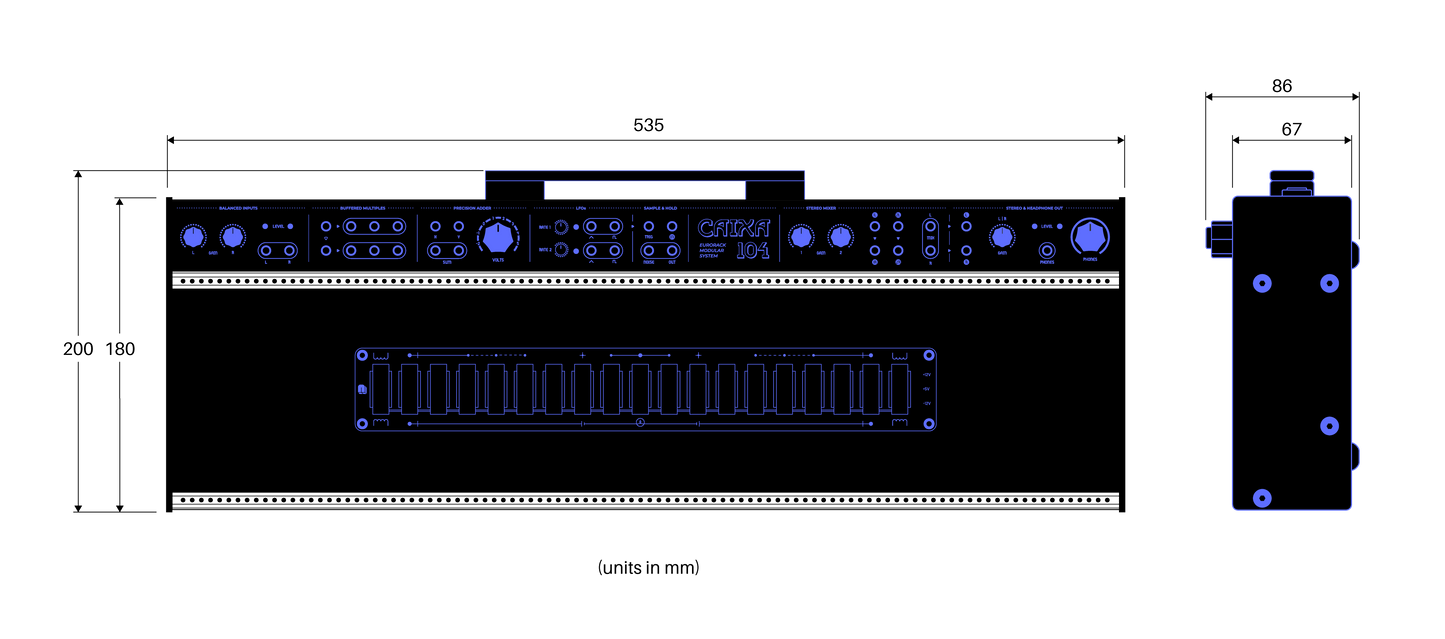

- Dimensions: 104 HP 6 mm deep
- Power: Module does not draw current
