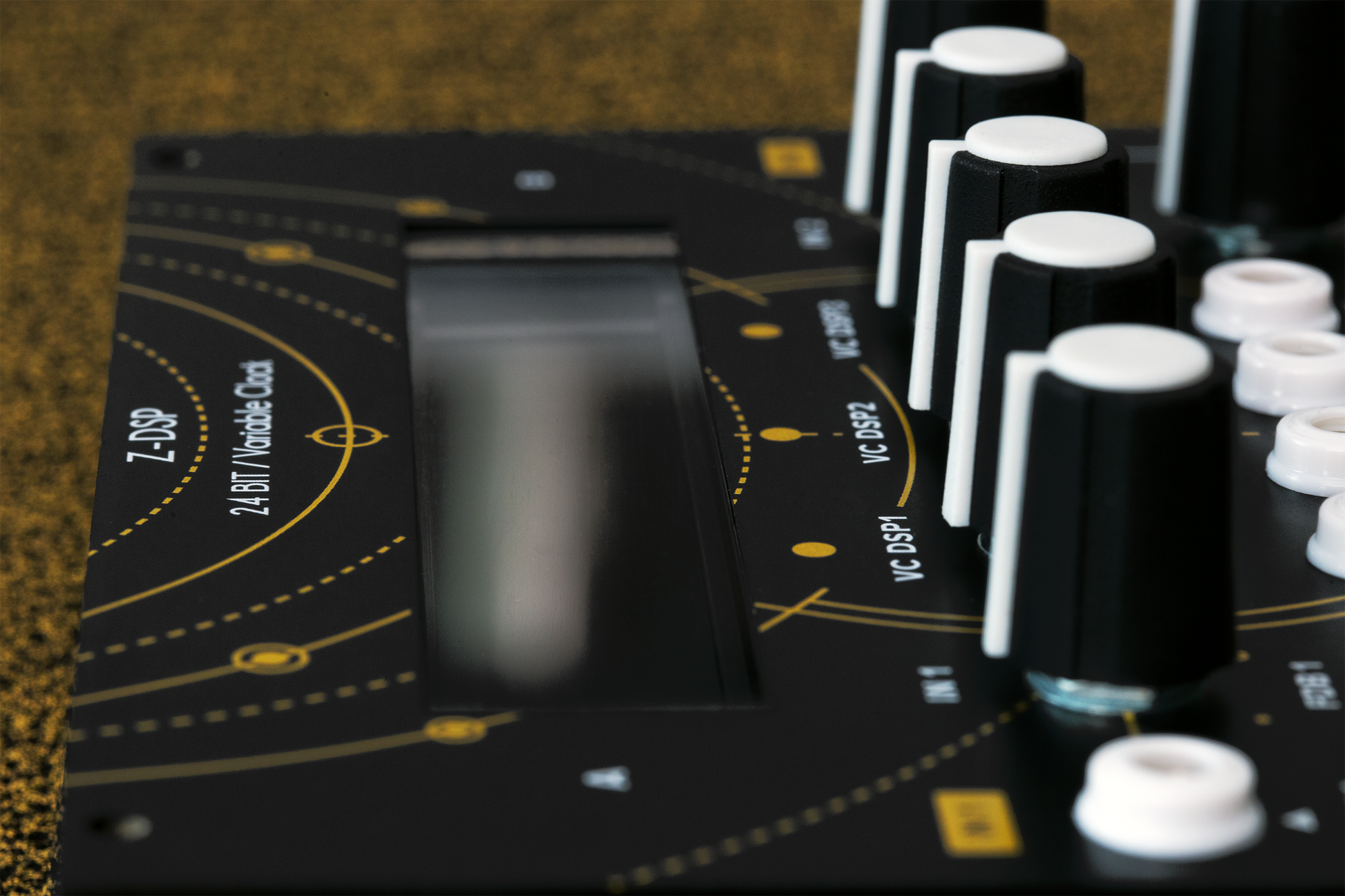

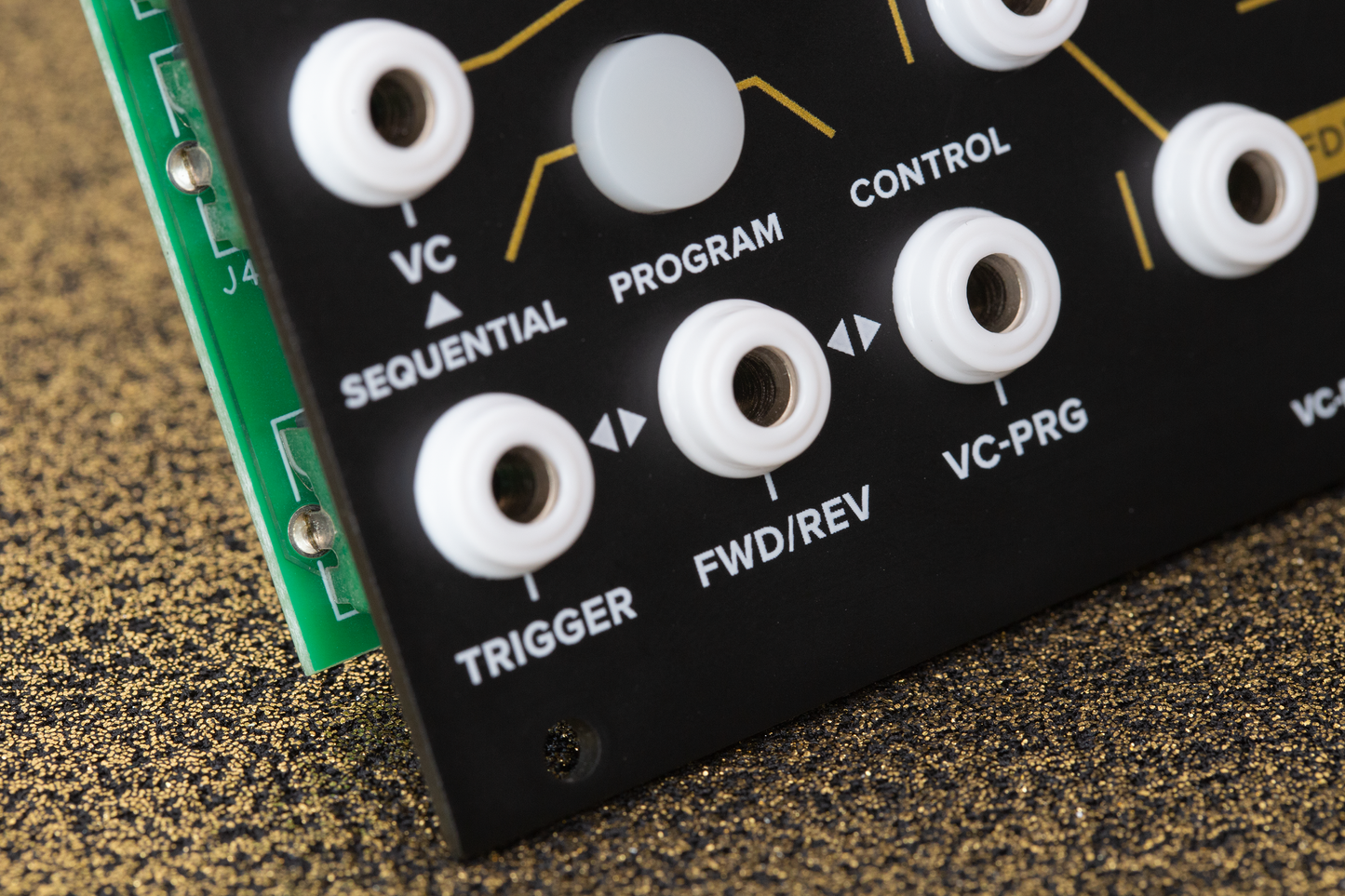

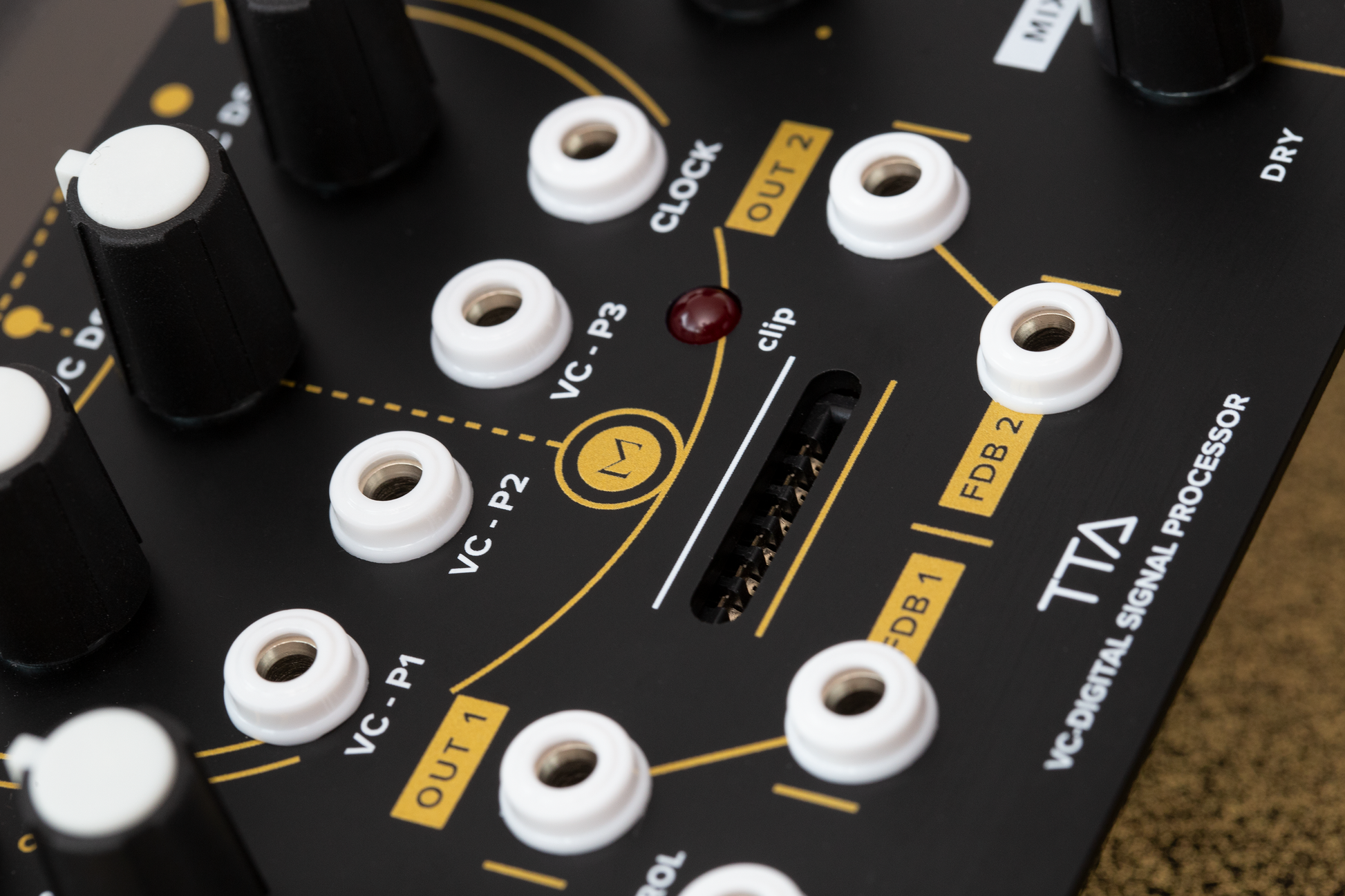

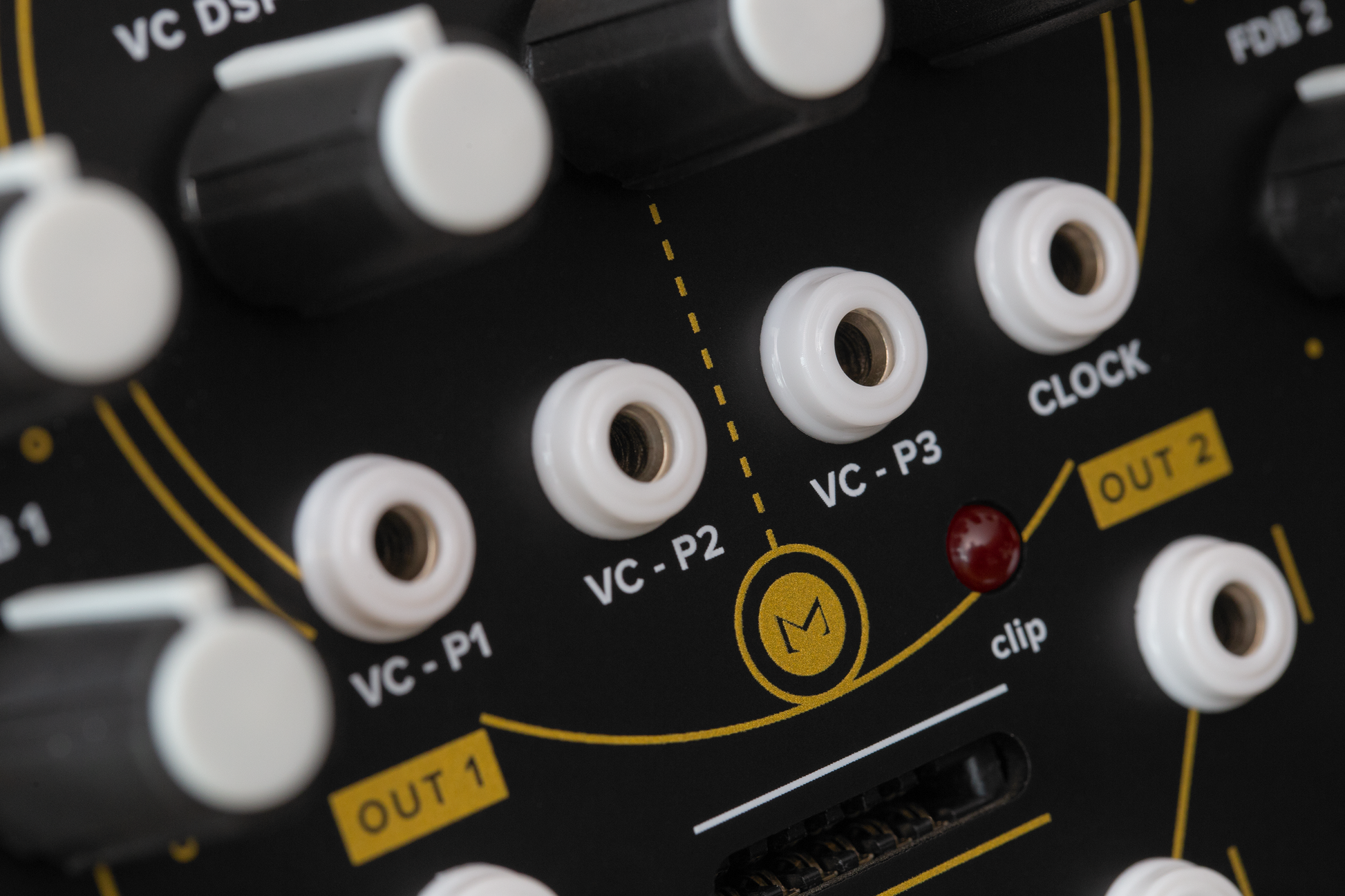

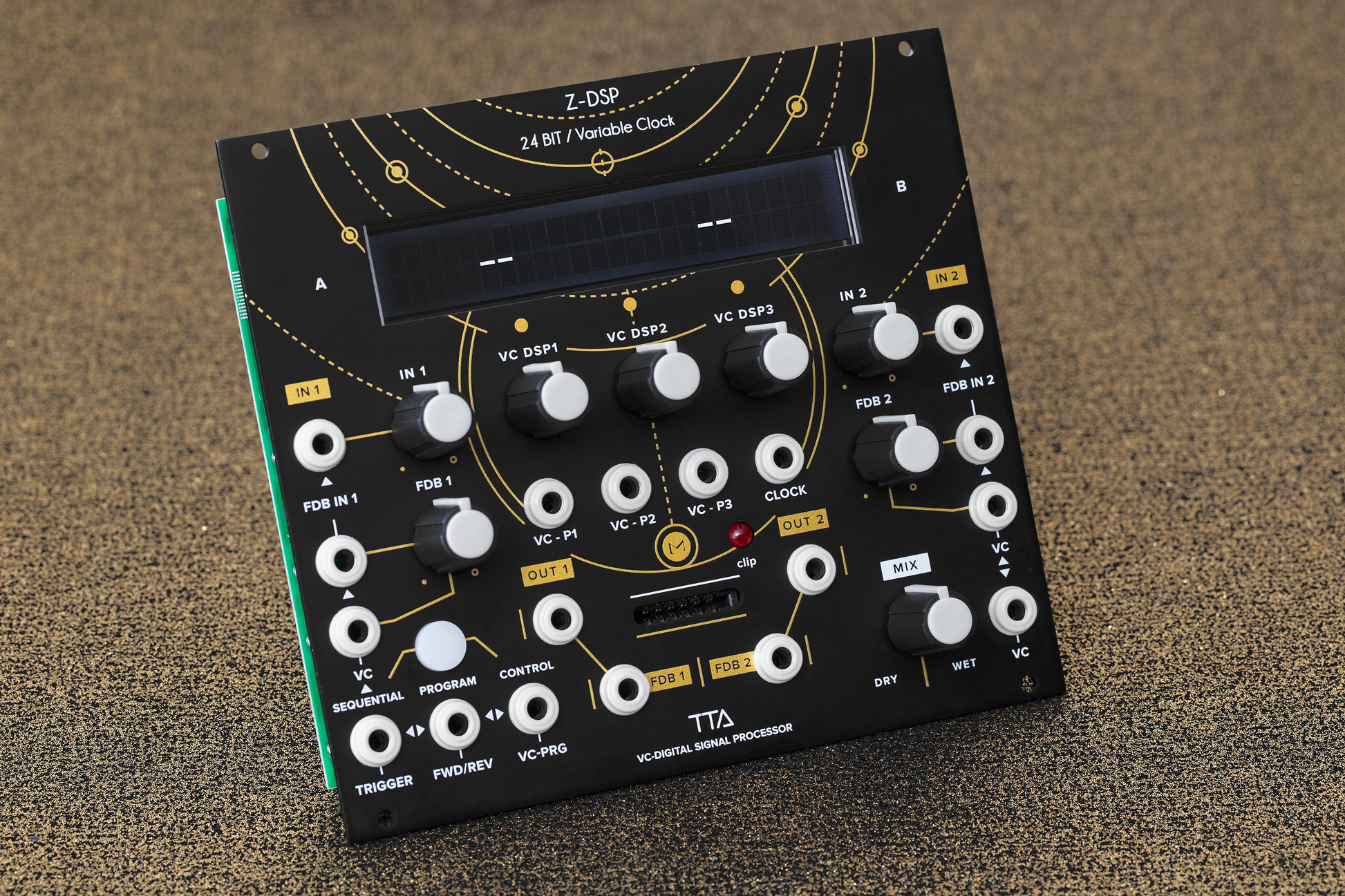

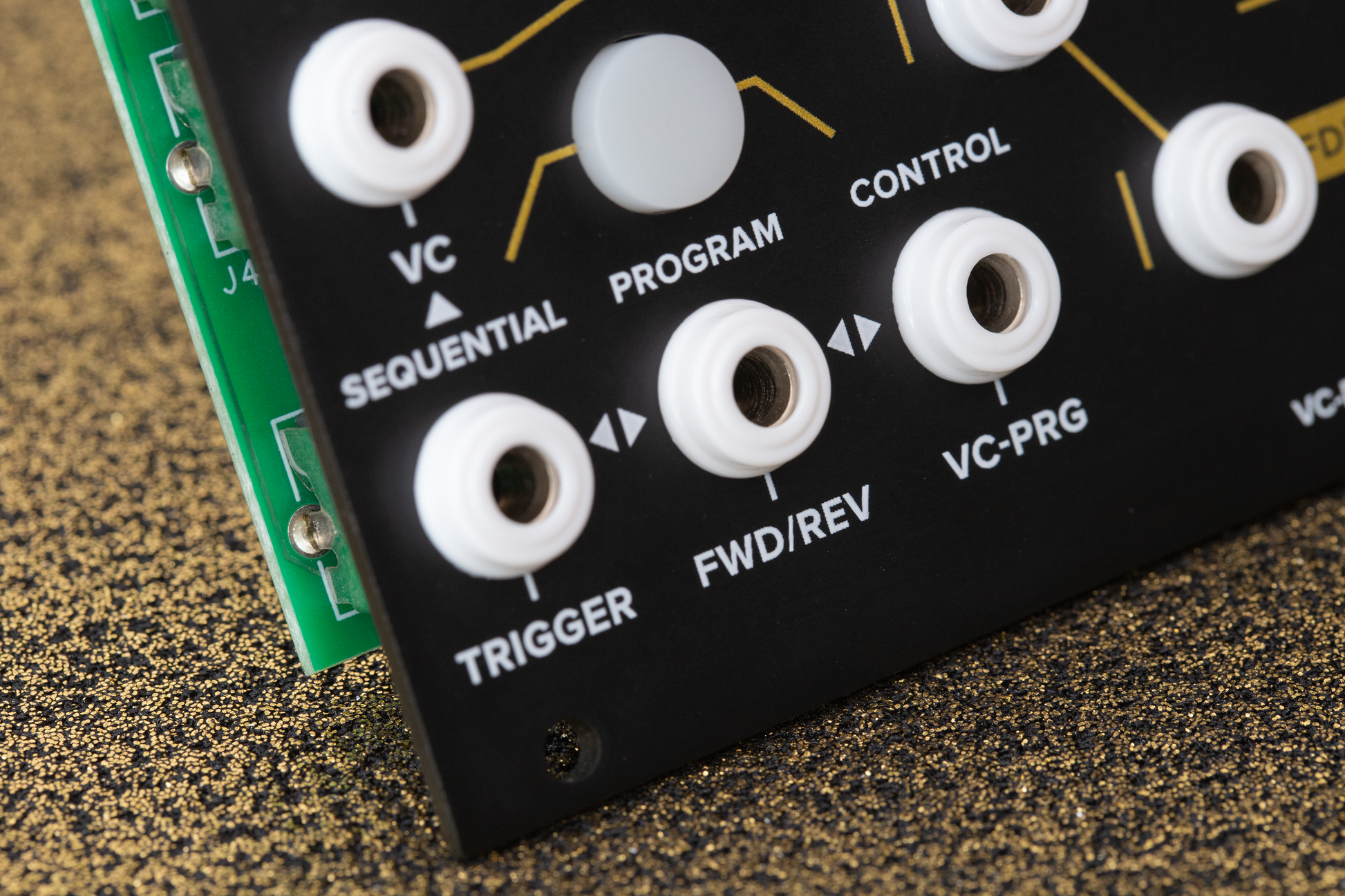

The powerful ZDSP in 20HP Now available with a black panel.
- Completely new analogue circuitry to dramatically reduce noise levels
- Updated front-panel design
- Reduced distortion improves sound quality for the entire frequency range
- Improved immunity to noise emitted by other modules sharing the same power bus
- Increased output gain improves signal to noise ratio
- Single PCB and surface mount technology improve reliability during production + use

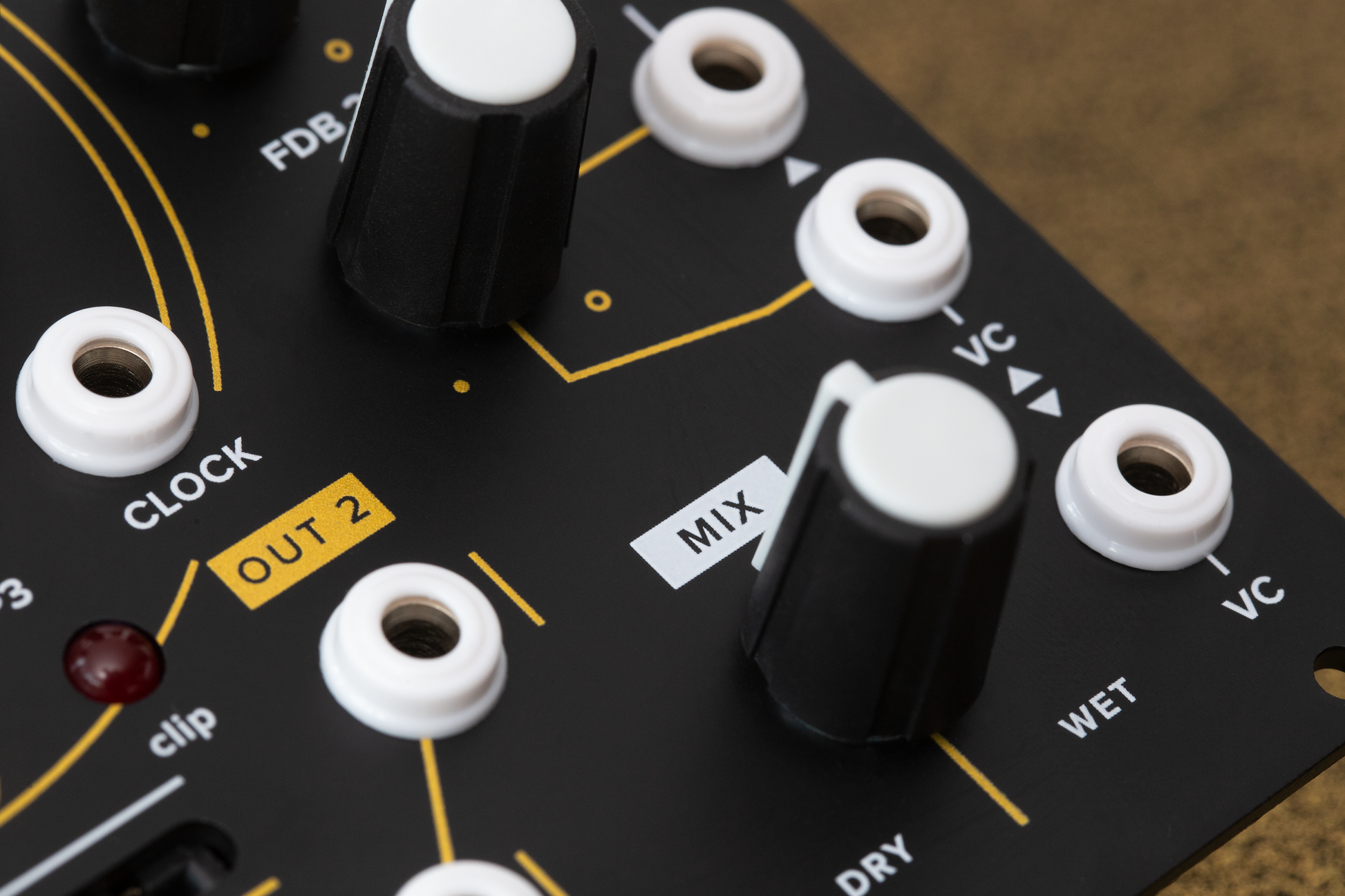

- Equal power cross fading of the MIX section, great for live use
- Logarithmic response of input gain knobs
- Fixed display stability when cards are pushed in and out
- Reverse polarity protection added
- Lighter shipping weight
- New cards work with original Z-DSP
- All cards and NumberZ are compatible
The Z-DSP features:
- Effects generating platform for modular synthesizers
- Interchangeable cartridges with an exclusive array of boutique effects like Chorus, Reverb, Delay, Pitch Shifting and Granular to name a few
- 24-bit sampling, 15kHz of bandwidth
- Dedicated audio processing hardware
- Dedicated clocking of the DSP chip
- CV parameters of stereo feedback, program switching and DSP features
- Clear display for easy reading and tracking
- Assortment of commercial cards by Tiptop Audio and specialists like Valhalla DSP
- NumberZ programmer and blank cards available to load effects algorithms using the FV-1 DSP chip programming language
- Freely available effects programs found in online modular communities
- Design, load and share open source code of your own
Ships with Dragonfly Delay and and Halls of Valhalla cards.
Video: https://youtu.be/SmQmtj3uXdQ
Product Specs
- Item Number: 24922
- Make: Tiptop Audio
- Model: Z-DSP Voltage Controlled Signal Processor - Black
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Delay Digital Effect Filter Pitch Shifter Reverb Panning Phase Shifter
- Made In: Thailand
- MPN: TTA-ZDSP-Black
- EAN: 8859469903214
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 28 HP 59 mm deep
- Power: 130 mA +12V 36 mA -12V 0 mA 5V
