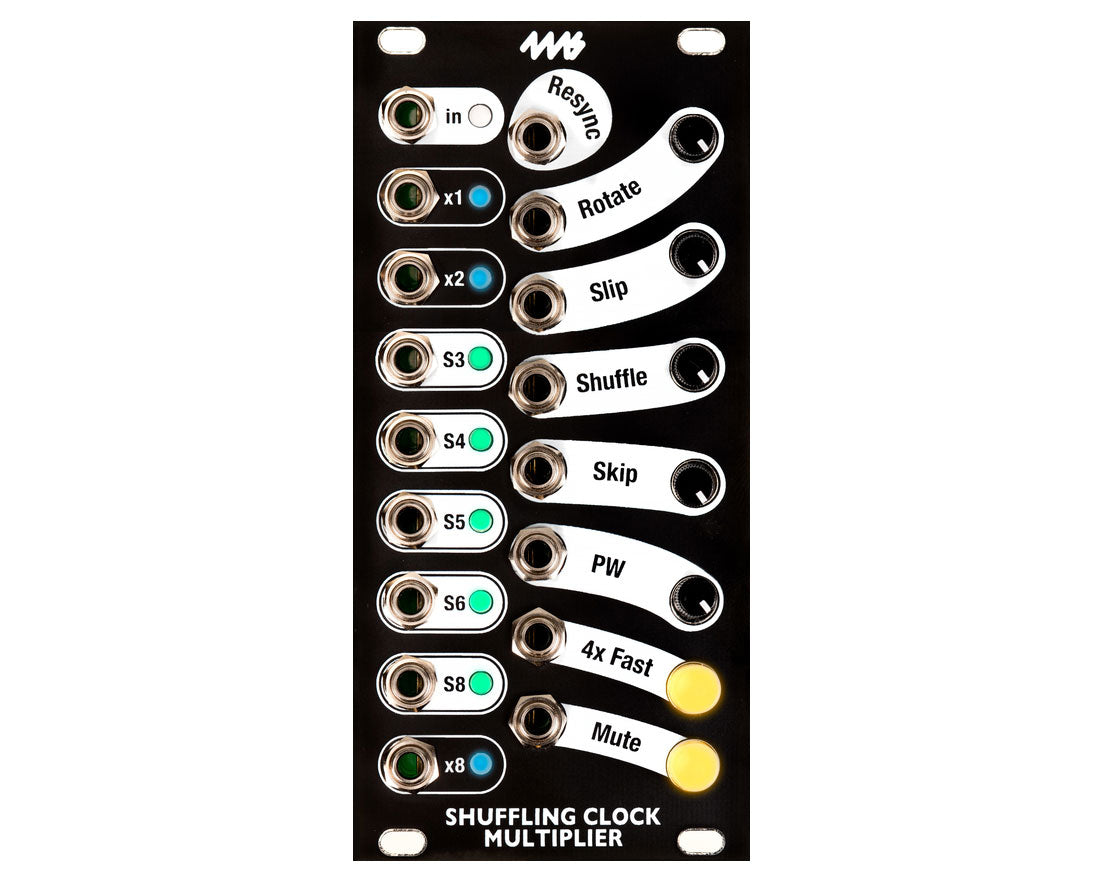

The SCM Plus is a clock multiplier with eight gate outputs and complex beat manipulation features. It combines the classic Shuffling Clock Multiplier (SCM) and SCM Breakout (SCMBO) into a single module using higher precision hardware than its predecessors.
- Eight gate outputs, each multiplying up to x32
- Five slipped/shuffled/skipped clock outputs and three steady clock outputs
- Five knobs with CV jacks:
- Rotate shifts multiply-by amount
- Slip causes particular beats to land ahead in time
- Shuffle selects which beats are affected by Slip
- Skip omits certain beats in a pattern
- Pulse Width controls width of output pulses
- Resync trigger input resets the slip/shuffle/skip counters
- 4x Fast button and gate jack increase multiply-by amount by a factor of four
- Mute button and gate jack stop all outputs
- Save Clock feature restores last saved tempo when powering up
- Clock Bus jumper allows module to receive tempo from other modules over the power bus
- Free Run jumper allows unit to operate without an external clock
- LED dimmer trimpot allows for custom LED brightness
- 12HP Eurorack module
Product Specs
- Item Number: 24635
- Make: 4ms
- Model: Shuffling Clock Multiplier Plus (SCM Plus)
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Clock Generator Clock Modulator Frequency Divider
- Made In: United States
- MPN: SCM+-BLK
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 12 HP 24 mm deep
- Power: 52 mA +12V 15 mA -12V 0 mA 5V
