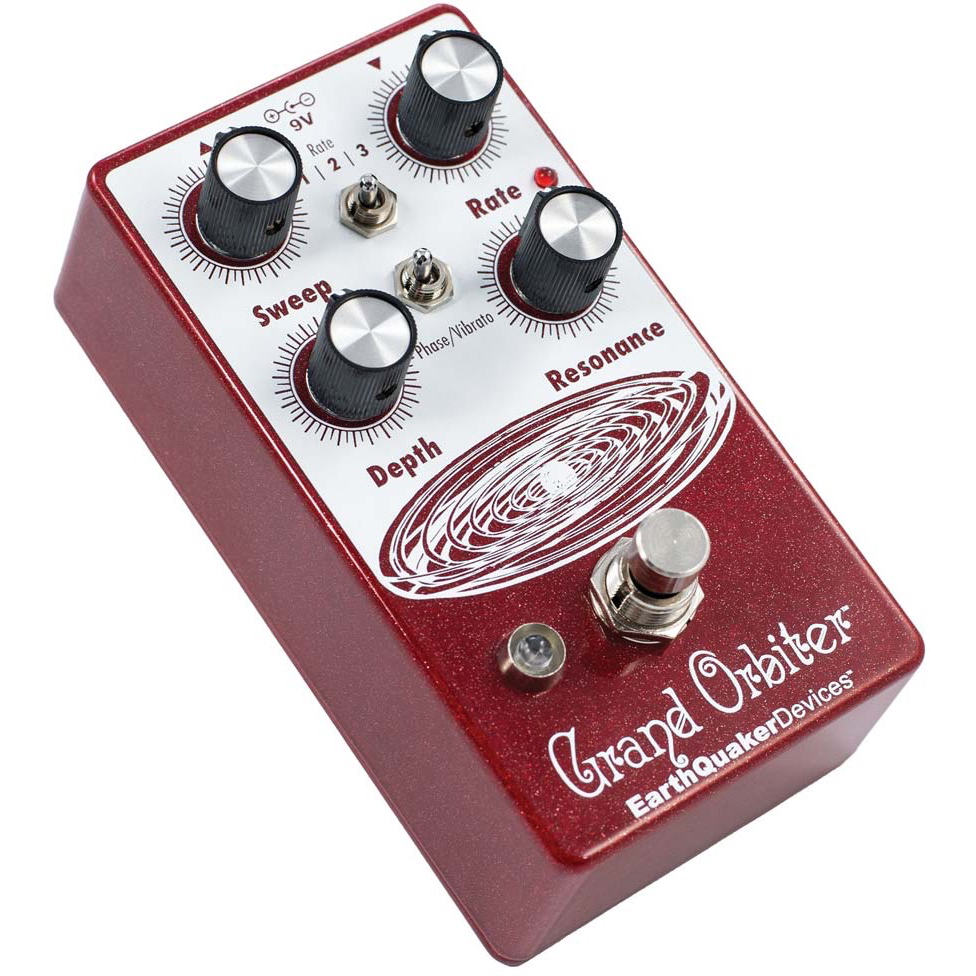

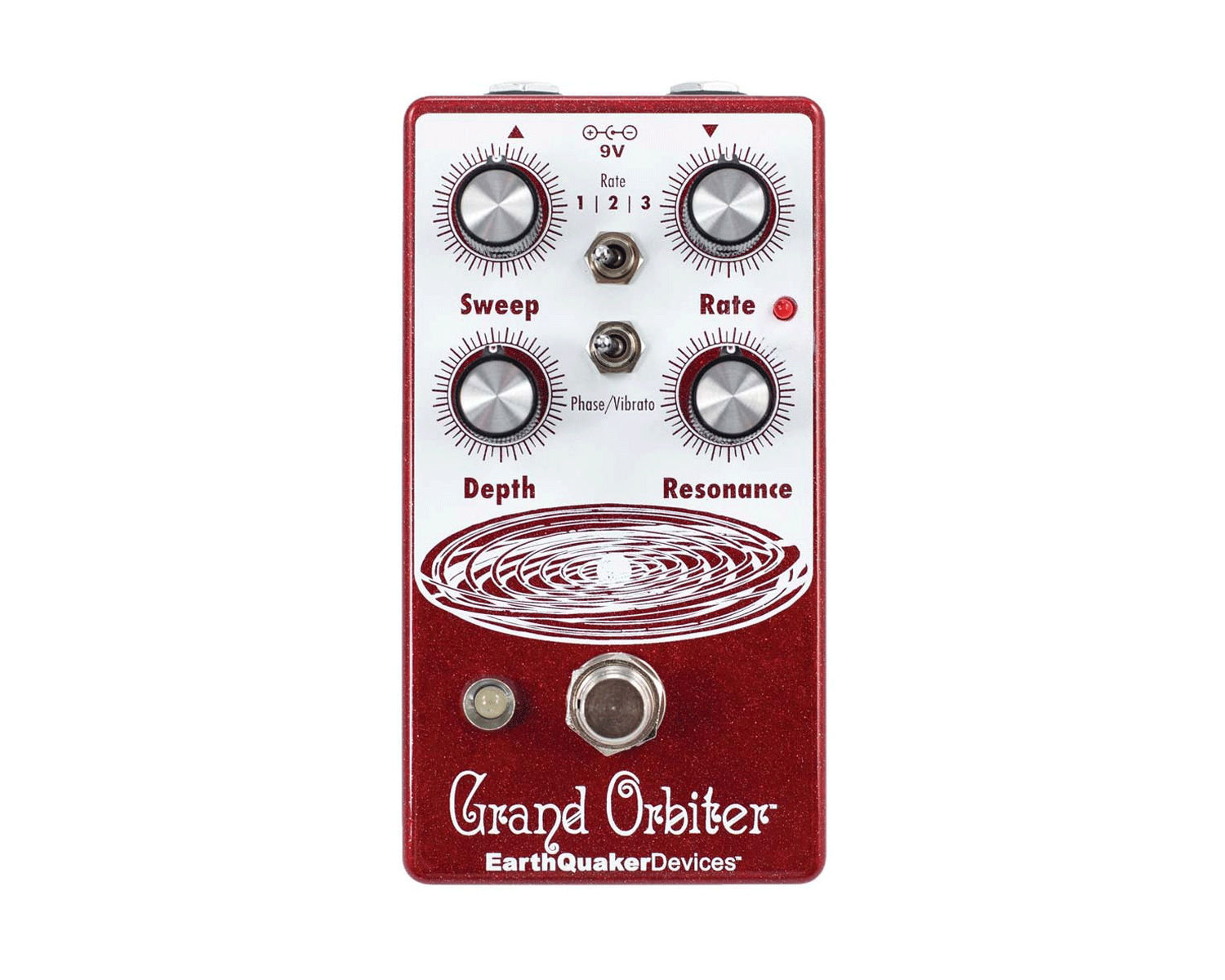

The The EarthQuaker Devices Grand Orbiter is a 4 stage OTA-based phaser with a diverse feature set that can go from stationary and resonant to slow and mellow and on through fast and swirly. It features a three way toggle switch to select between the ranges of modulation: Rate 1 is slow sweep mode, Rate 2 kills the LFO and allows you to use the Grand Orbiter as a fixed resonant filter and Rate 3 is fast sweep mode. The master Rate control fine tunes the speed of the LFO in each of these modes and the flashing red LED acts as a visual indicator, even when the effect is in bypass mode.
The Depth control blends the shifted signal in with the dry signal and controls the intensity of the effect. The Sweep control controls the peak frequency of the phased signal’s tone, turned full clockwise the sweep is lively and intense, whereas turning counter clockwise gives you a darker, more laid back peak.
The Resonance provides a wide range of control over regeneration and at higher settings adds a more pronounced and resonant tone. You can also use the Grand Orbiter as a true pitch vibrato with the “Phase/Vibrato” switch. When in “Vibrato” mode, the dry signal is removed and the Depth controls acts as a volume control. This pedal is 100% analog, true bypass and built by entirely by hand in beachy Akron, Ohio.
Video: https://youtu.be/YYC-rqXMJDM
Product Specs
- Item Number: 23956
- Make: EarthQuaker Devices
- Model: Grand Orbiter Phase Machine V3
- Condition: Brand New
- Finish: Red
- Categories: effects-and-pedals ⇒ phase-shifters ⇒ pedal
- Function: Filter Phase Shifter
- Made In: United States
- MPN: EQD-GOV3
- UPC: 855755007138
- Modular Grid: Pedals ⓘ ＋
- Dimensions*: 64 mm wide 121 mm high
- Power*: 15 mA / 9 V DC / Negative Center
* User contributed details
