RYK Modular 100M M175

Product type
NEW
Regular price
$999.00
Sale price
$999.00
Out of stock
Unit price
per
GST inclusive Shipping calculated at checkout.

* This item is not currently in stock, orders will be fulfilled when the item becomes available.

Consisting of three resonant Band Pass Filters arranged in parallel, the M175 Roland 100M format compatible module is great for adding some shape and character to a sound. Use the triple peaks to add acoustic style resonant spikes, or modulate them to create dramatic phaser style swooshes and sweeps. Or carefully tune the centre frequencies to create formant style vocal noises from waveforms with high harmonic content such as pulse waves.

The M175 contains three dual Vactrols to control the centre frequency of each resonator, which add a small amount of slew to the frequency modulation, famously associated with classic Buchla modules.

Features

  • Three Vactrol controlled Band Pass Filters arranged in normalised parallel, or can be used as three separate filters.

  • Audio input signal is normalised to all three resonators, but can be overridden by inserting a jack into the resonators 1st inputs allow them to be used separately.

  • A mix output is available that sums the output of all three resonators, by inserting a jack into a resonators individual output overrides its output from the mix output.

  • Keyboard CV is supplied via the standard System 100m DIN connector, to the 1st modulation input of each resonator.

  • The 2nd input of the first resonator is normalised to each of the other two resonators

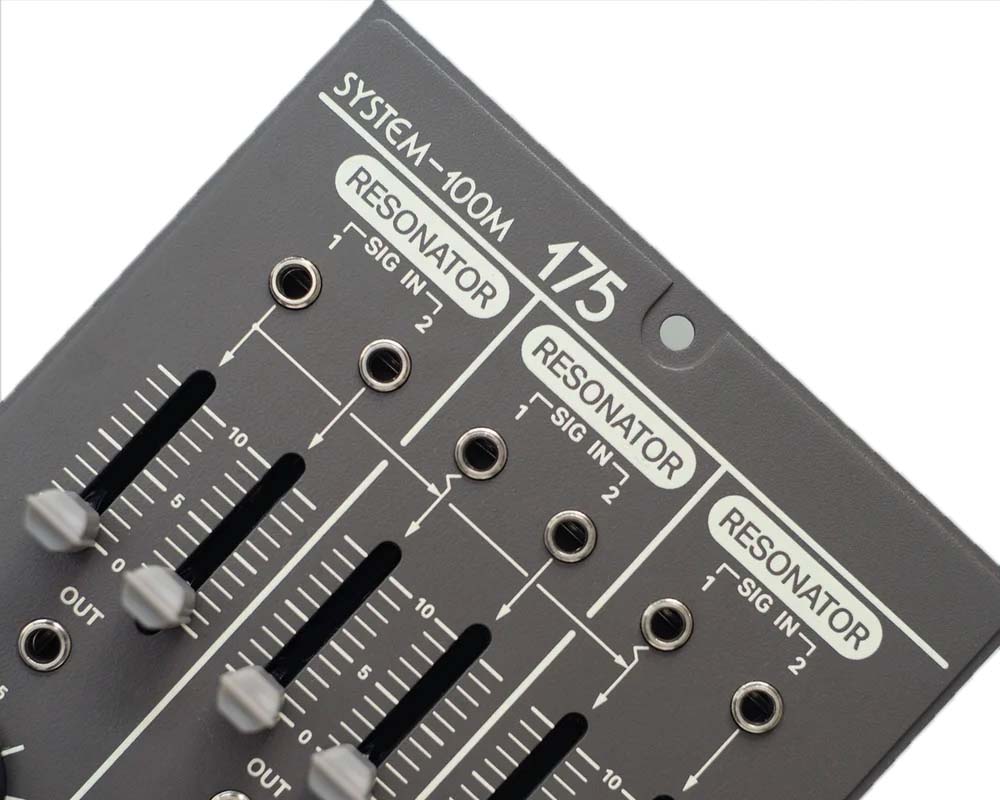

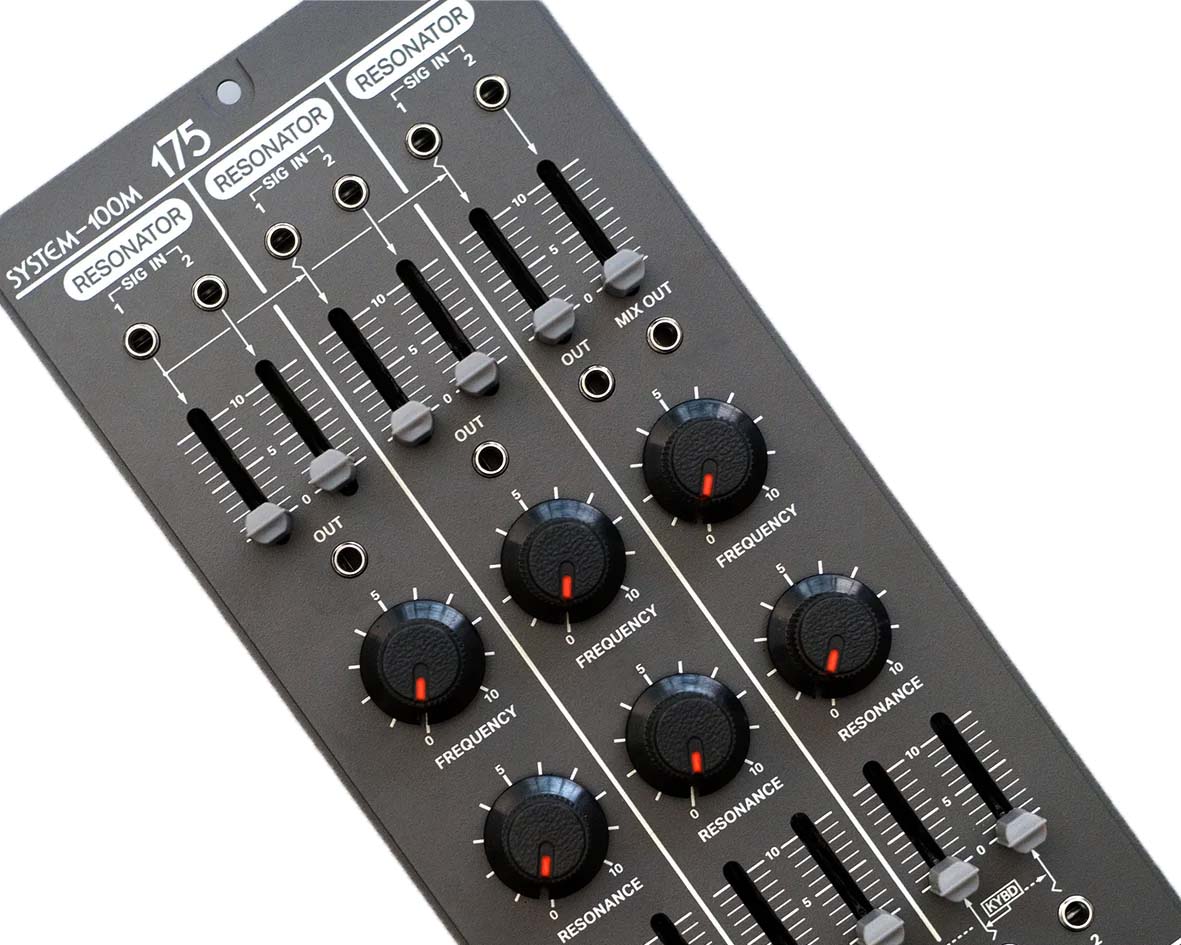

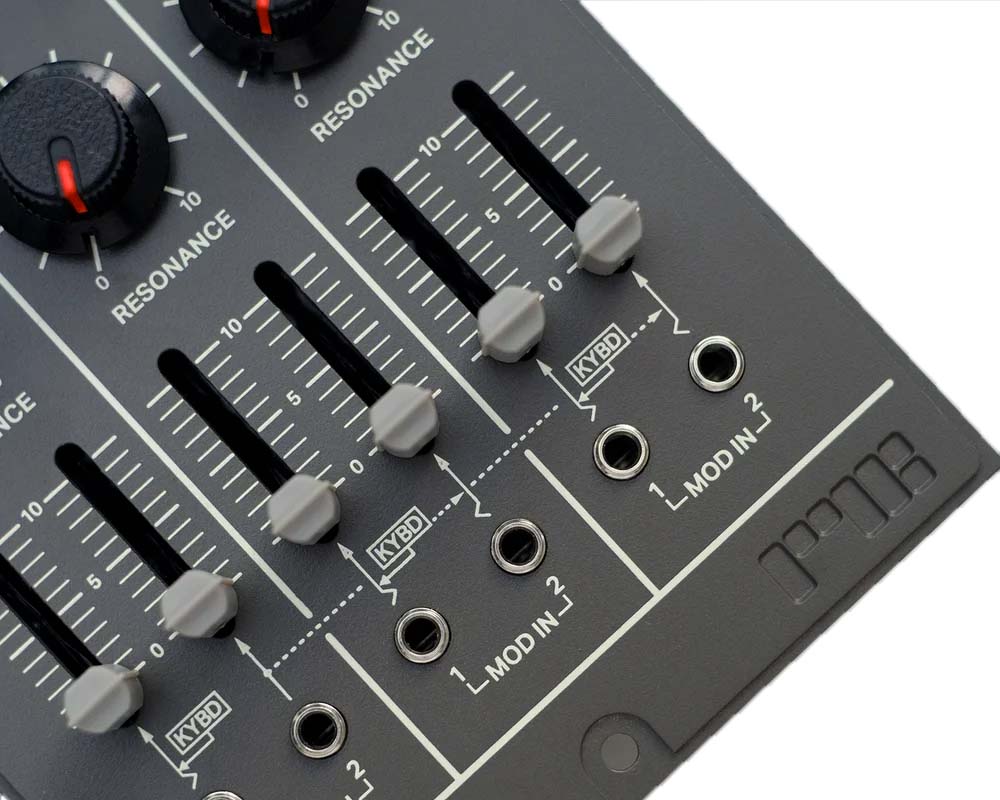

  • Authentic high quality reproduction of Roland System 100m panel, with 100m grey paint finish and '70s off white screen print.

Product Specs
