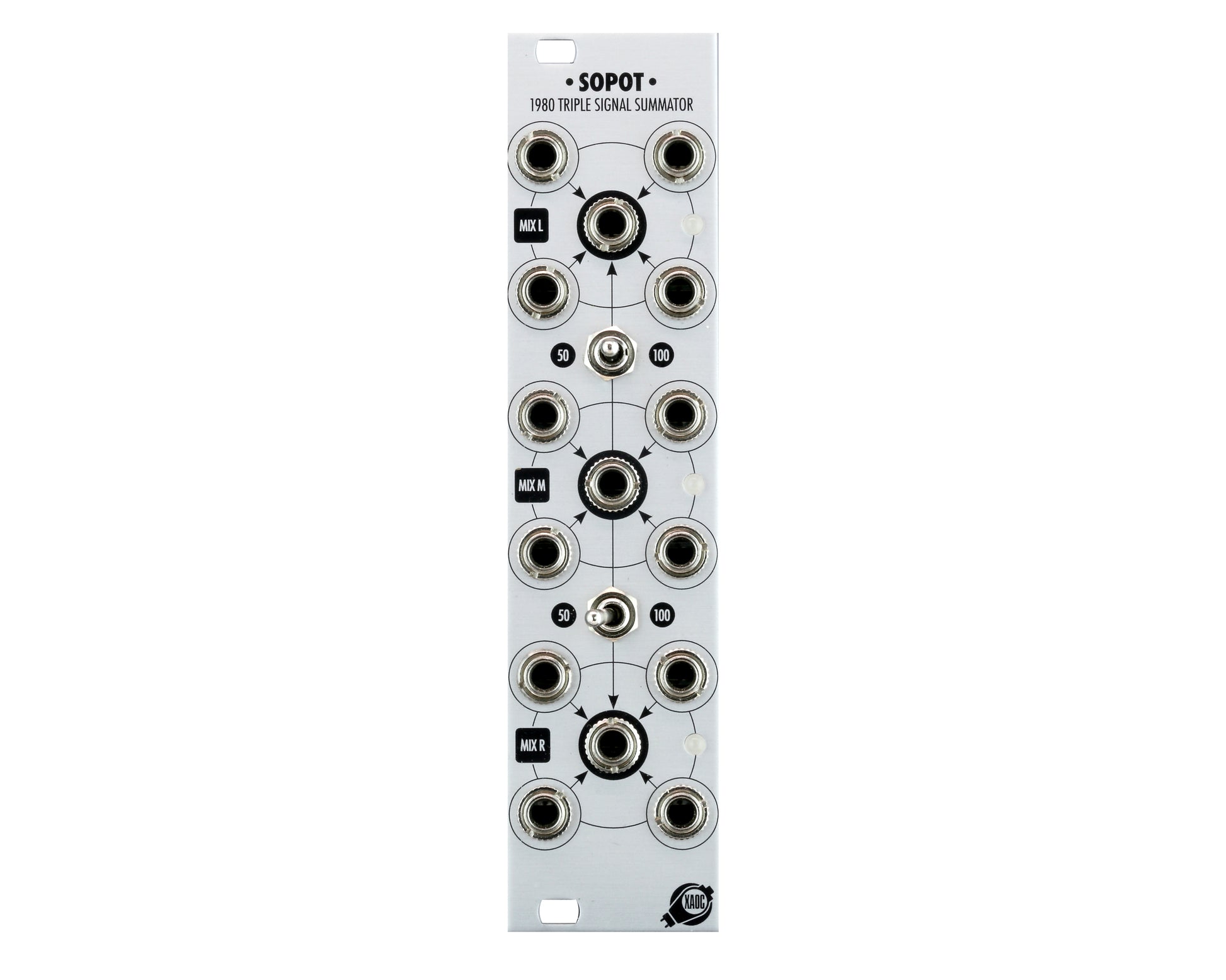

Sopot is a compact utility module handy when the need arises to sum multiple stereo and mono sound sources (up to four signals for each section). It is a triple summing mixer featuring three signal adding sections with the middle one optionally fed to the top and bottom ones. The contribution of the middle section is switchable between 0%, 50%, and 100%. Each of the summing sections is built with high quality audio opamps and features a soft clipping circuit for nice saturation. Gain can be optionally reduced to -12dB in order to allow summing of hot signals.
Main features:
- three independent summators 4:1
- middle section normalled to the upper and lower ones
- gain attenuations for the normalization
- 6HP
- 30mm depth (including ribbon cable bracket)
- +12V: 30mA / -12V: 20mA
Product Specs
- Item Number: 23789
- Make: XAOC Devices
- Model: Sopot
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Dual/Stereo Mixer Panning
- Made In: Poland
- MPN: XAOC-SOP
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 6 HP 30 mm deep
- Power: 30 mA +12V 20 mA -12V 0 mA 5V
