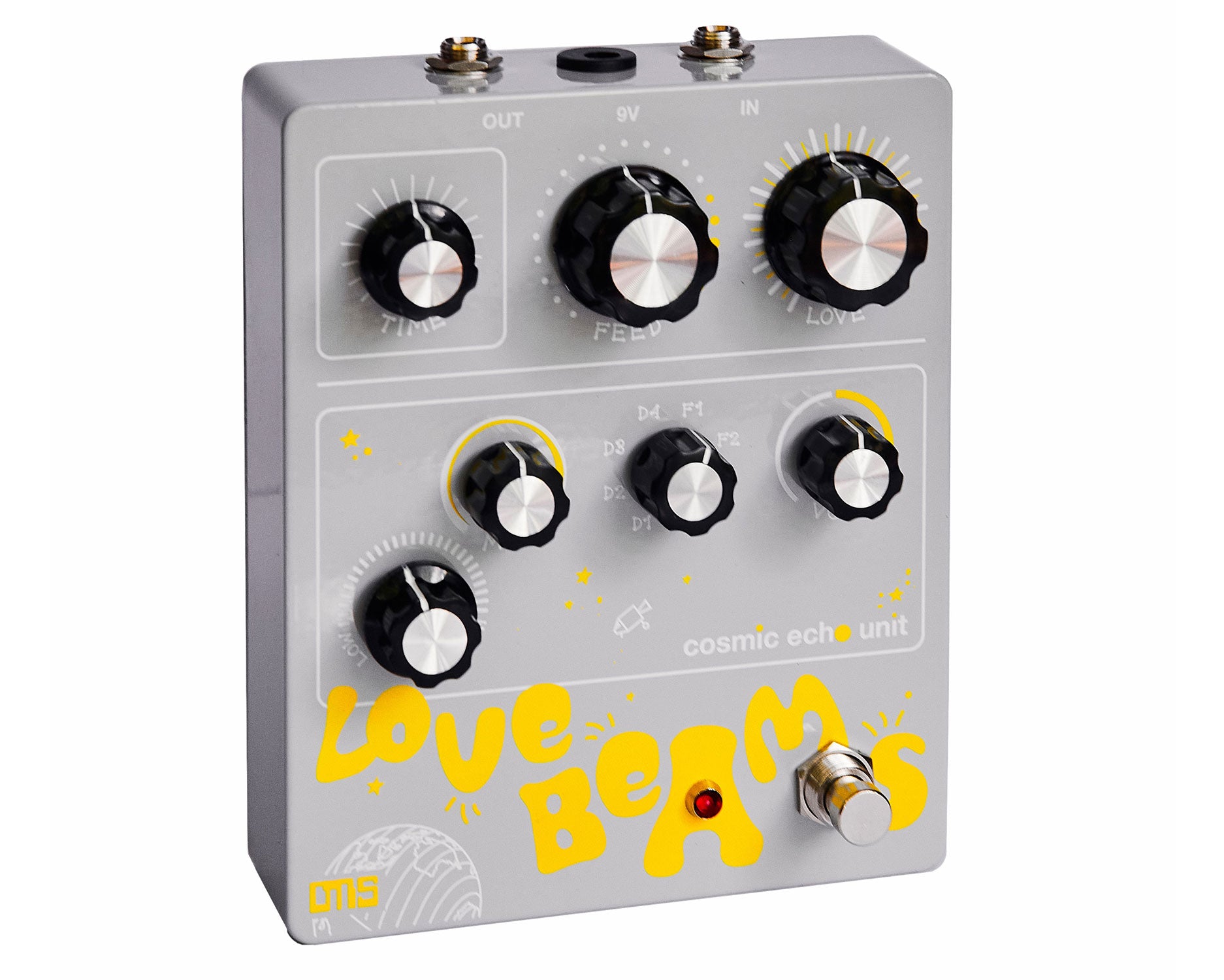

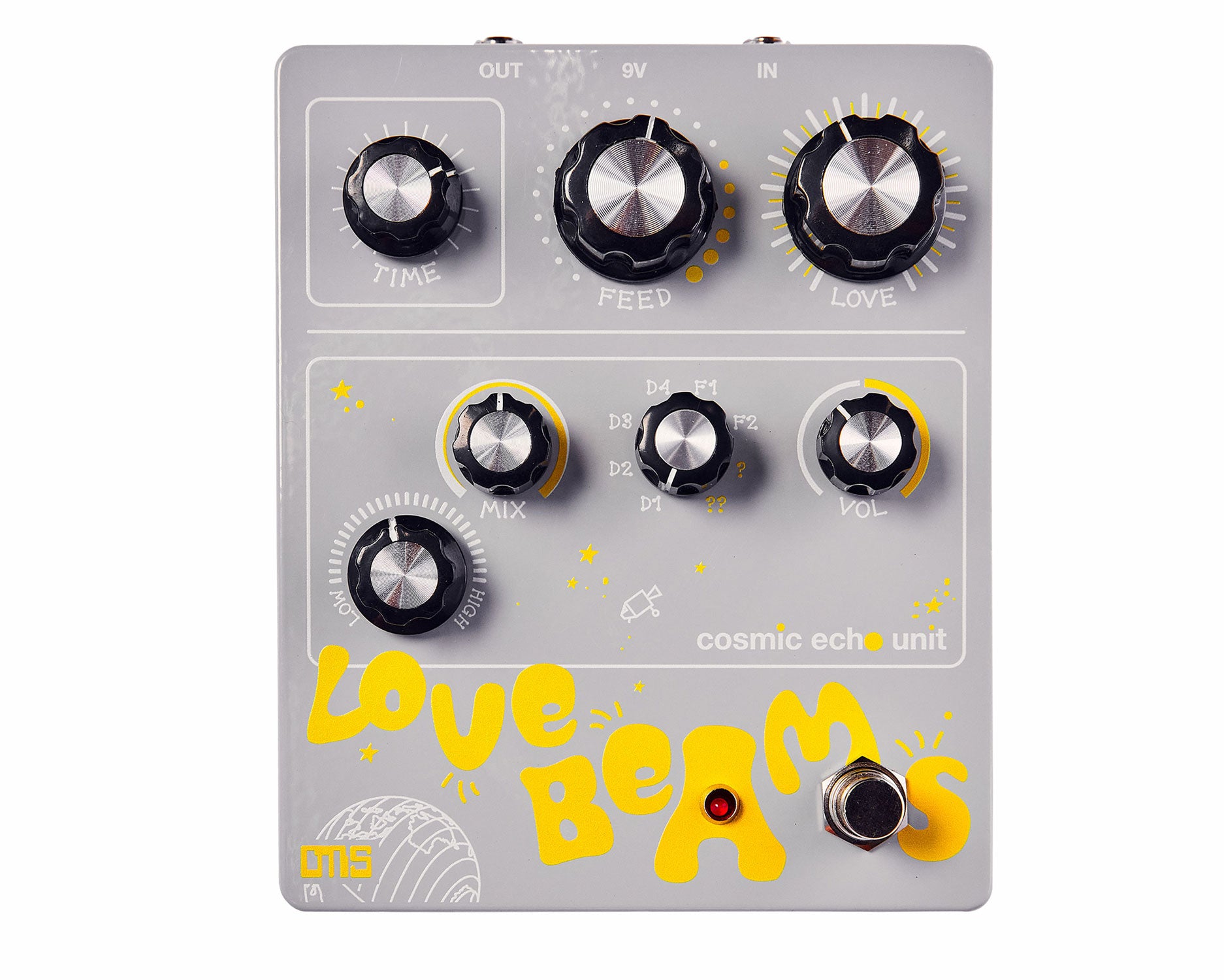

OTIS Love Beams

The Love Beams from Outer Time Inner Space (OTIS) is a multi-mode delay, filter and reverb pedal.

MODES

• D1 - Lightwaves
  A uniquely modulated band pass filter, into a delay with an overdriven chorus in the feedback path that goes from a subtle radiance to deep, swelling pulsations.

• D2 - Life Speed
  A low pass filter modulated by a sample and hold control signal, into a delay with amplitude modulation in the feedback path. Capable of bending and shifting the repeats into anything from rich textures to hypnotic rhythmic echoes.

• D3 - Subterranean
  A delay into an envelope-controlled filter with a blendable octave fuzz in the feedback path. Creating trippy, accented repeats, with higher frequencies spiking then decaying rapidly.

• D4 - Sound + Vision
  A delay with cascading, pitch-shifted repeats. Depending on the ctrls, the repeats are uniquely filtered to allow for everything from subtle harmonic overtones, to kaleidoscopic, mutant echoes.

• F1 - Honey
  A low pass filter with the option for light to heavy modulation of both the cutoff frequency and a blendable chorusing effect. Capable of subtle pulses, swelling ambiance or transparent radiation.

• F2 - Patchwork
  A low pass filter with blendable fuzz and a unique (modulating square wave) tremolo effect. A dreamweapon capable of stretching minds wide open… use thoughtfully.

• ? - Reshape
  A resonant, plate-like reverb into a filtered delay line. Plays with the fabric of time in a very pleasant way.

• ?? - Creation Rebel
  A resonant, spring-like reverb with a classic 4 stage phaser in the output path. Inspired by the sound of one of the UK’s greatest record labels.

SPECIFICATIONS

• I/O: Mono (TS unbalanced 6.4mm jack).
• Power: 9V DC power supply, standard 2.1mm (negative tip/positive sleeve) - not included.
• Current: 85mA
• Dimensions: 145 mm x 121 mm x 39 mm

Video: https://youtu.be/zxB4S0YC6w0

Product Specs

• Item Number: 23524
• Make: OTIS
• Model: Love Beams
• Condition: Brand New
• Finish: Grey
• Categories: effects-and-pedals ⇒ delay ⇒ pedal
• Made In: Australia
• MPN: OTIS-LB
